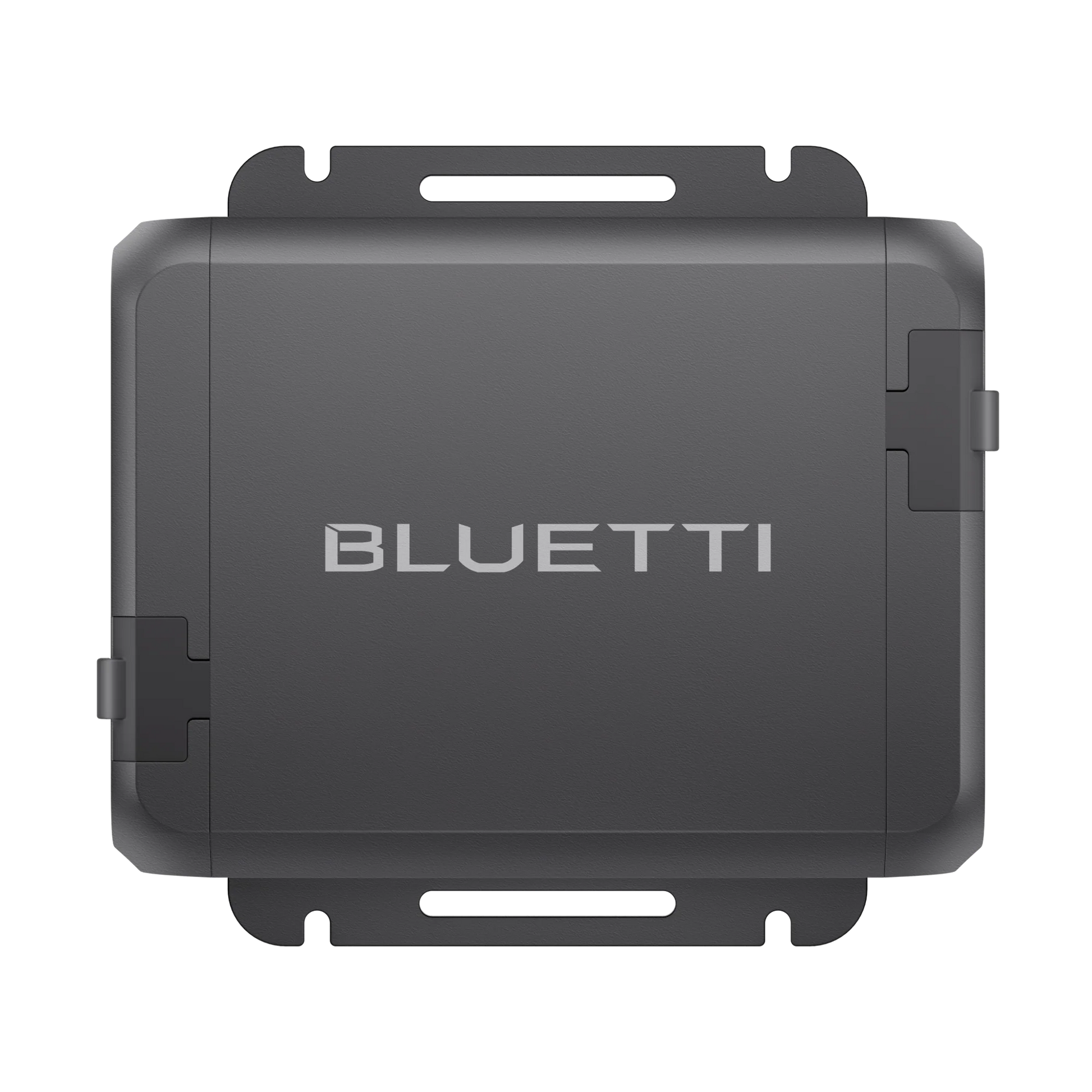

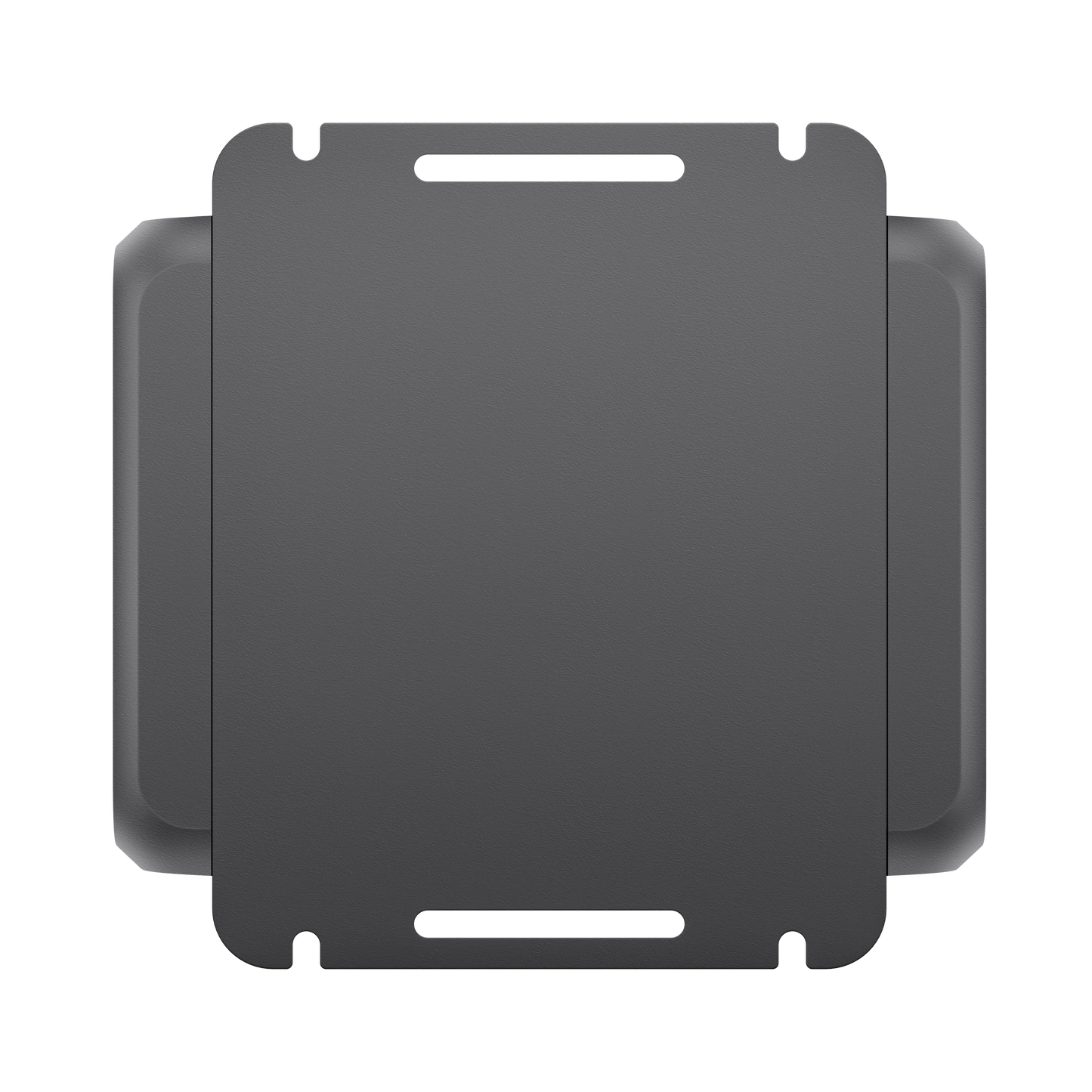

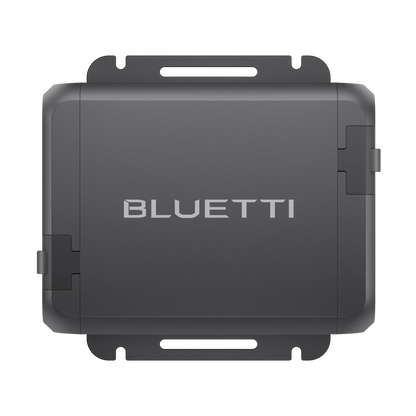

BLUETTI Charger 1 (560W Alternator Charger)

• Wide Compatibility: Works with all BLUETTI power stations and most brands on the market.

• High-Speed Charging: Delivers Max. 560W of power—6 times faster than traditional car cigarette lighter chargers.

• Enhanced Cooling: Active fan cooling for optimal performance and extended service life.

• Safety Features: Protect your vehicle battery and power station from short circuit, reverse connection, under-voltage, over-temperature, etc.

• Smart Protection: Automatic turn on/off functions prevent your vehicle battery from draining.

• App Control: Allows you to adjust output voltage and monitor car battery status in real-time.

• Easy Installation: Quick to connect and setup with a few simple steps.

• Peace of Mind: Backed by a 2-year warranty for reliable performance.

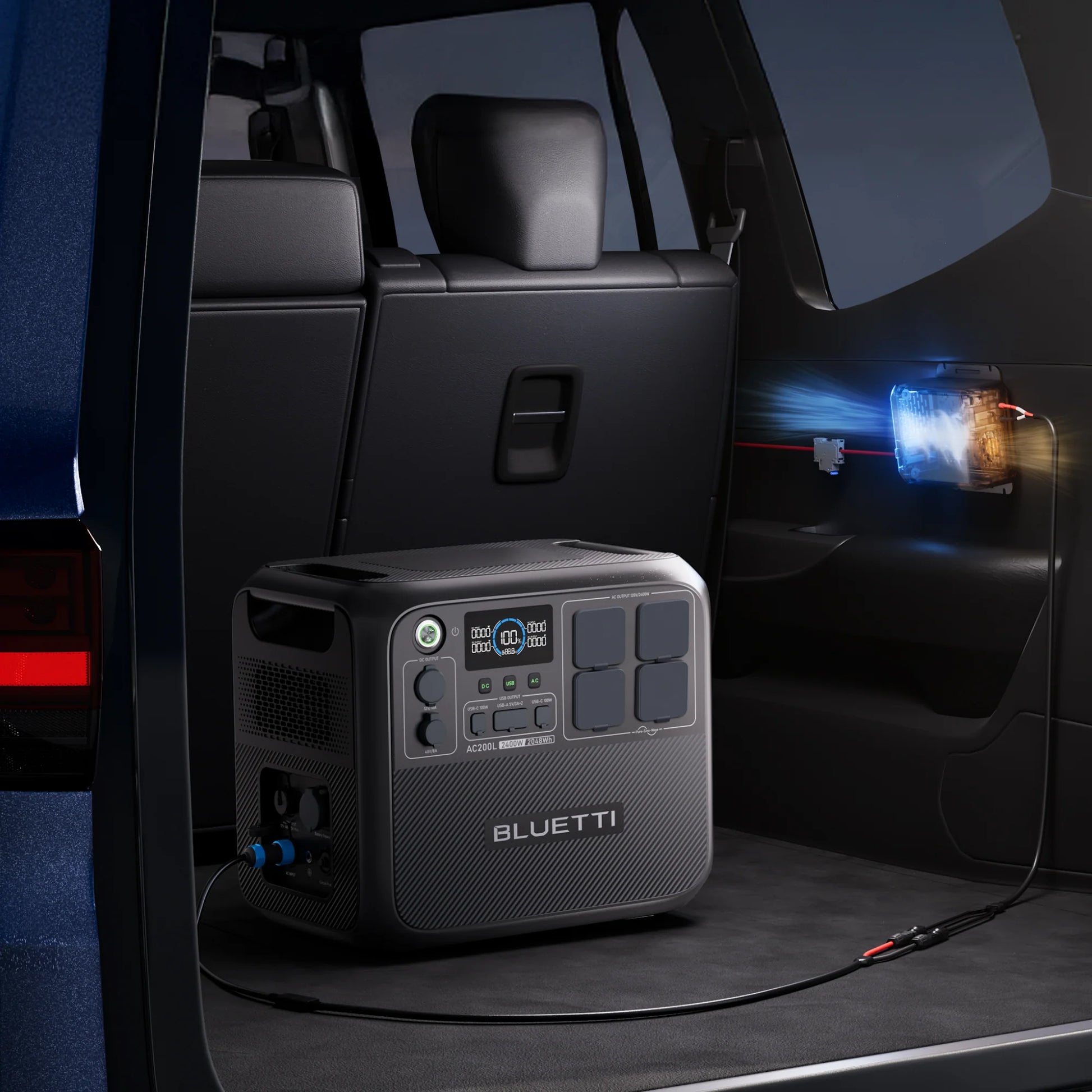

• Vehicle-to-Battery Charging: Quickly recharge BLUETTI power stations while driving.

• Road Trips & Vanlife: Maintain continuous power for fridges, lights, fans, and electronics during long drives.

• Off-Grid Camping: Keep power stations topped up without relying on solar or shore power.

• Mobile Worksites: Power tools, laptops, and equipment by recharging your power station between jobs.

• RV & Camper Use: Ideal for Class B vans, RVs, and campers to maintain energy while in motion.

OUTPUT:

• Default Voltage: 27V

• Voltage Range (with 12V battery): 15.0V to 56.0V (adjustable via app)

• Voltage Range (with 24V battery): 27.0V to 56.0V (adjustable via app)

• Current: 10A

• Power: 560W

INPUT:

• Input Voltage: 12V -14V / 22.5V - 28V

• Input Amperage: 50A - 12V / 25A - 24V

GENERAL:

• Product Function: Increase output voltage (To charge power station)

• Compatibility: All BLUETTI power stations & 95% other models on the market.

• Protections: Short circuit/anti-reverse/under-voltage/over-temperature

• Cooling: Fan cooling

• Surge Protection: 60A Circuit Breaker (Optional)

• Operating Temperature: -20°C to 60°C / -4°F to 140°F

• Protection Grade: IP20

• Noise: 50dB Max.

• Weight: Approx. 1.2kg / 2.645lbs

• Dimensions (L x W x D): 145mm × 110mm × 60mm / 5.7in × 4.33in × 2.36in

• Warranty: 2 Years
App Connection:
Bluetooth

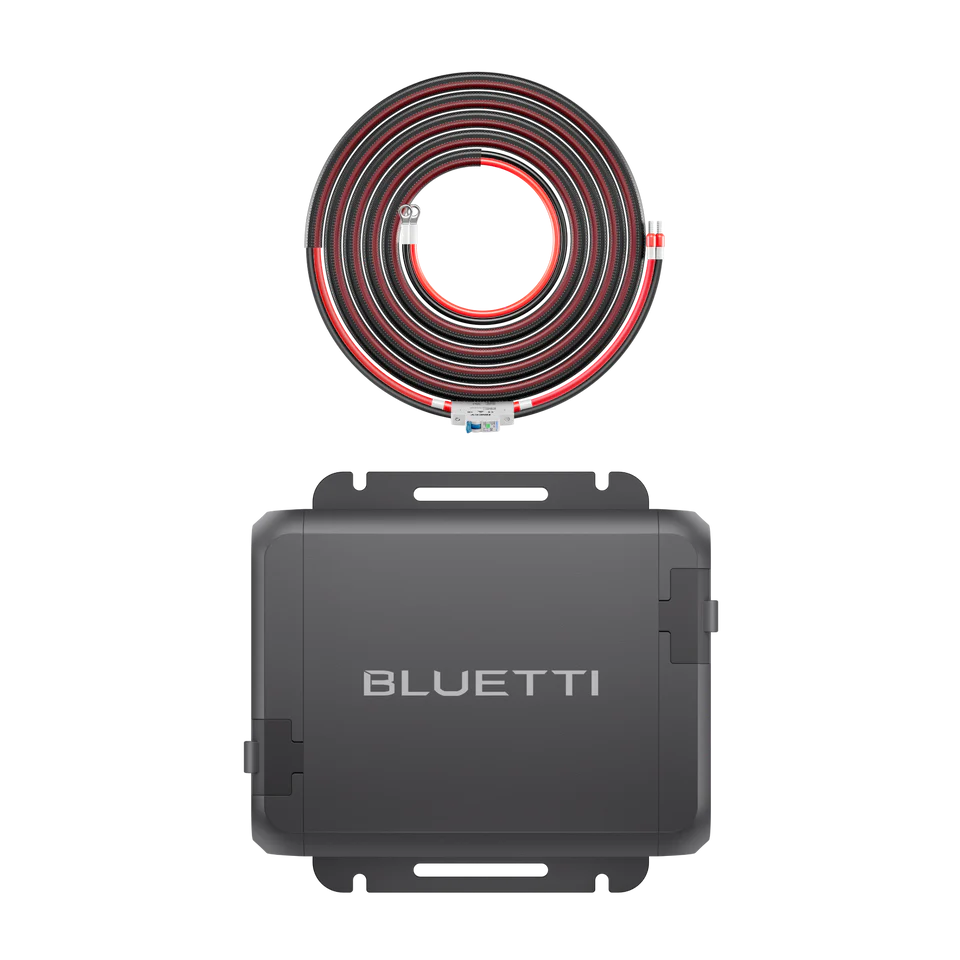

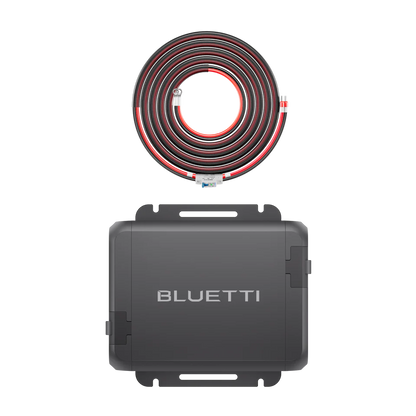

• Bluetti Charger 1

• 1x MC4 Output Cable

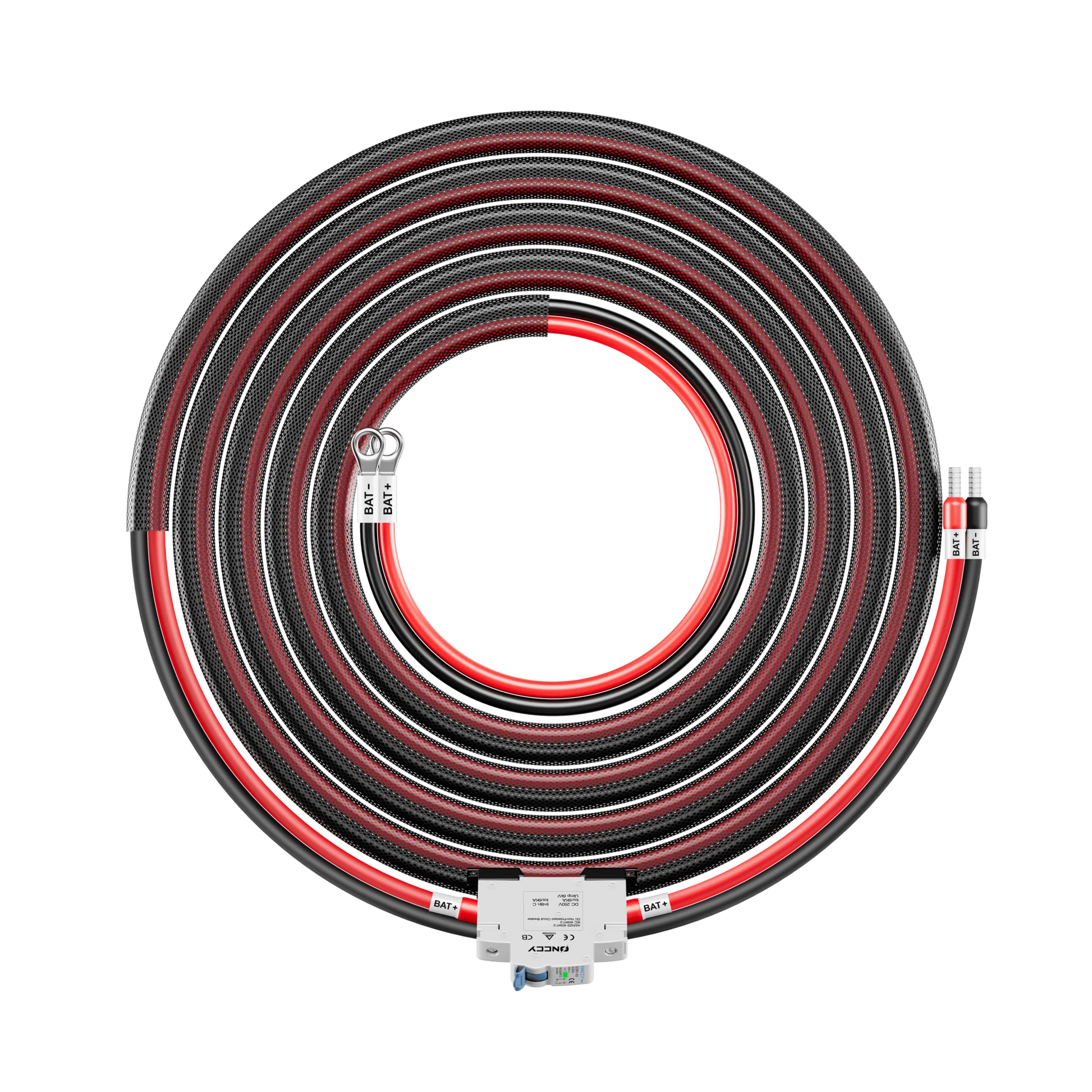

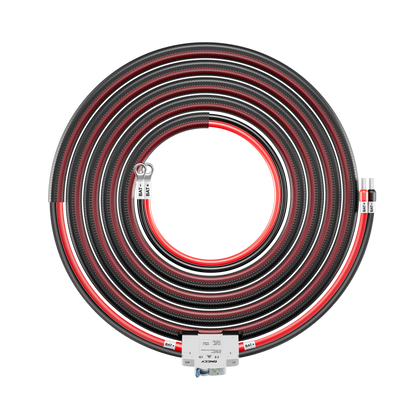

• 1x DC Input Cable

• 1x Hex Socket Wrench

• 4x Hex Socket Screws

• 6x Self-tapping Screws

• User Manual
