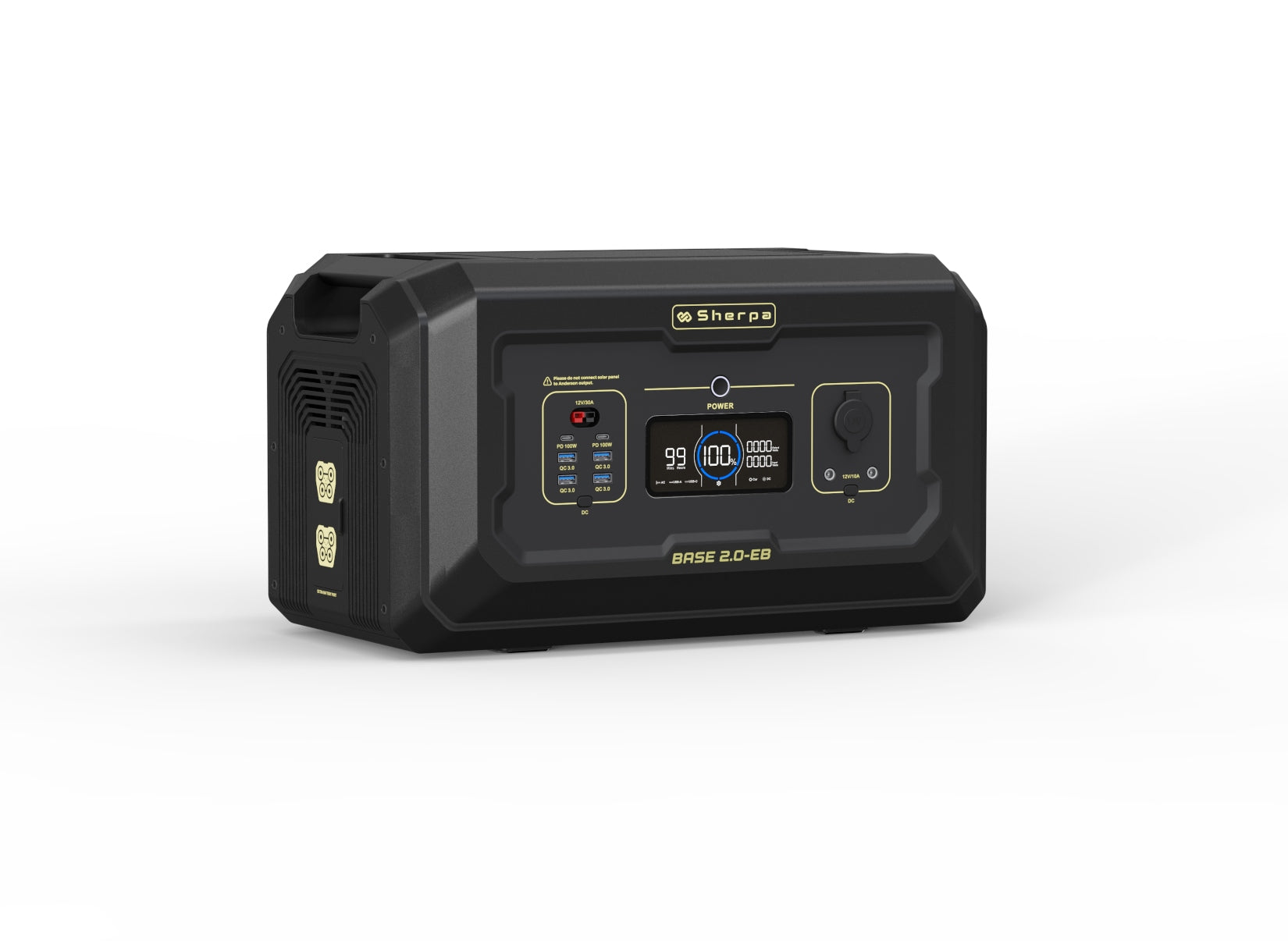

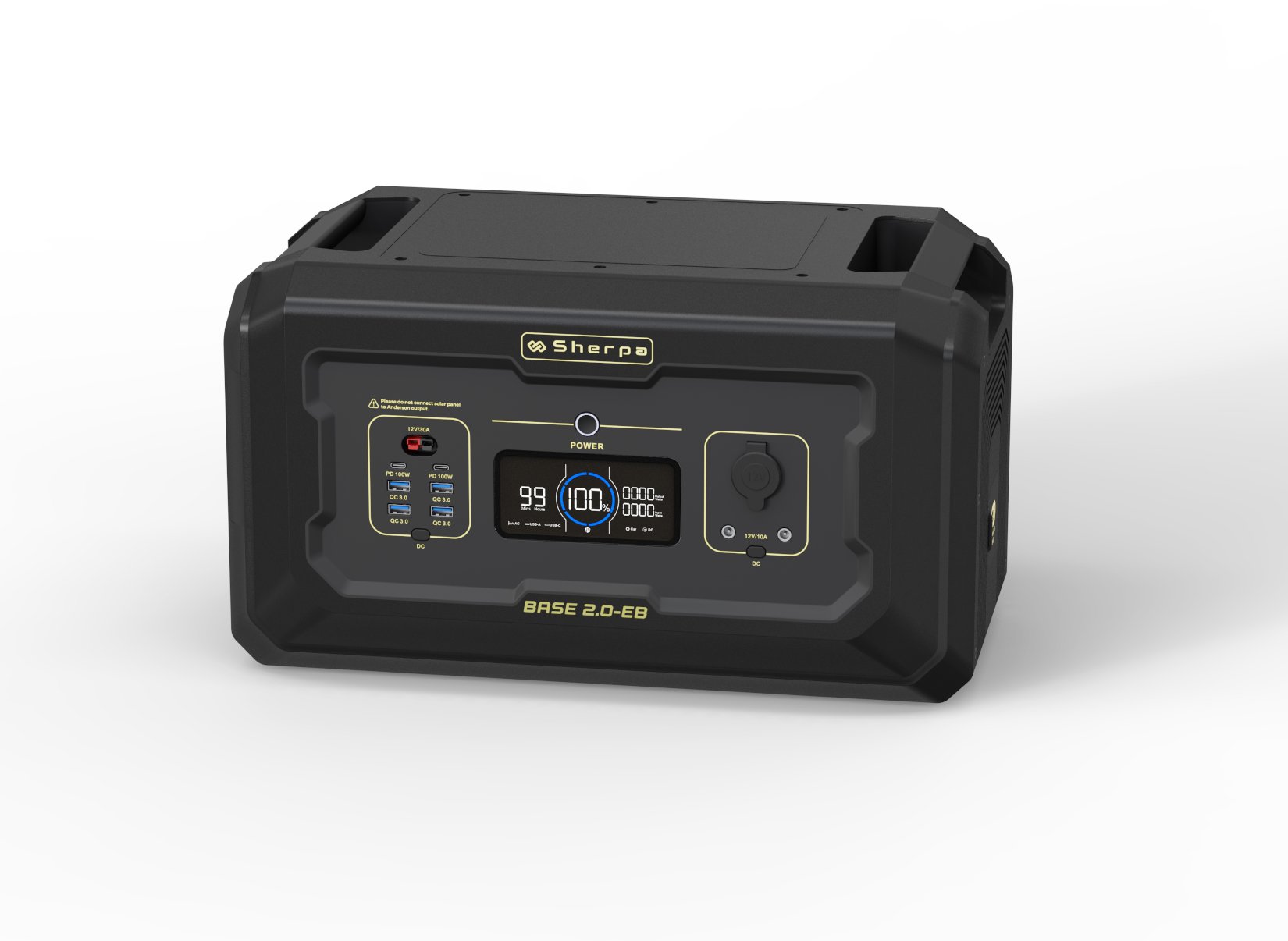

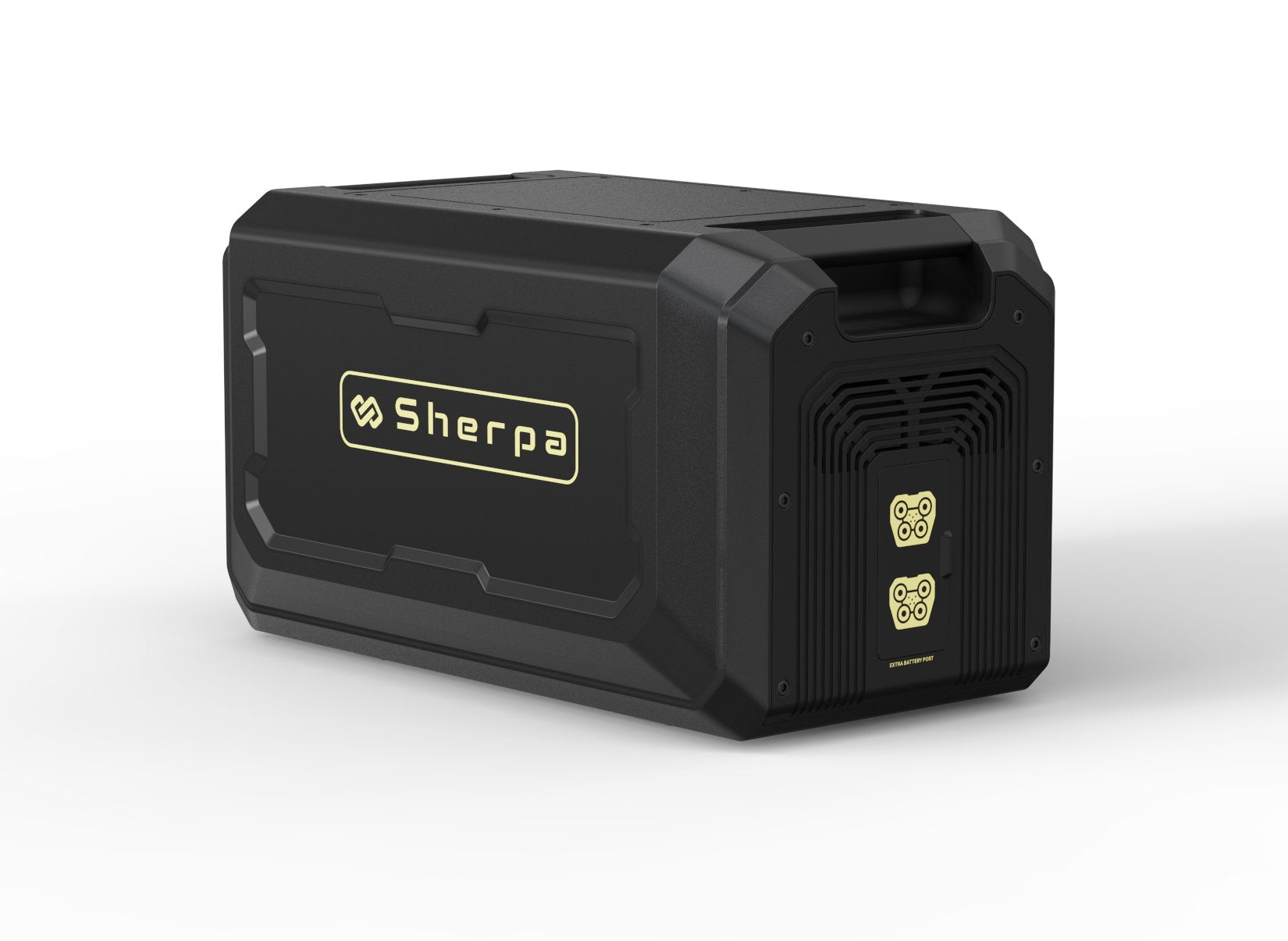

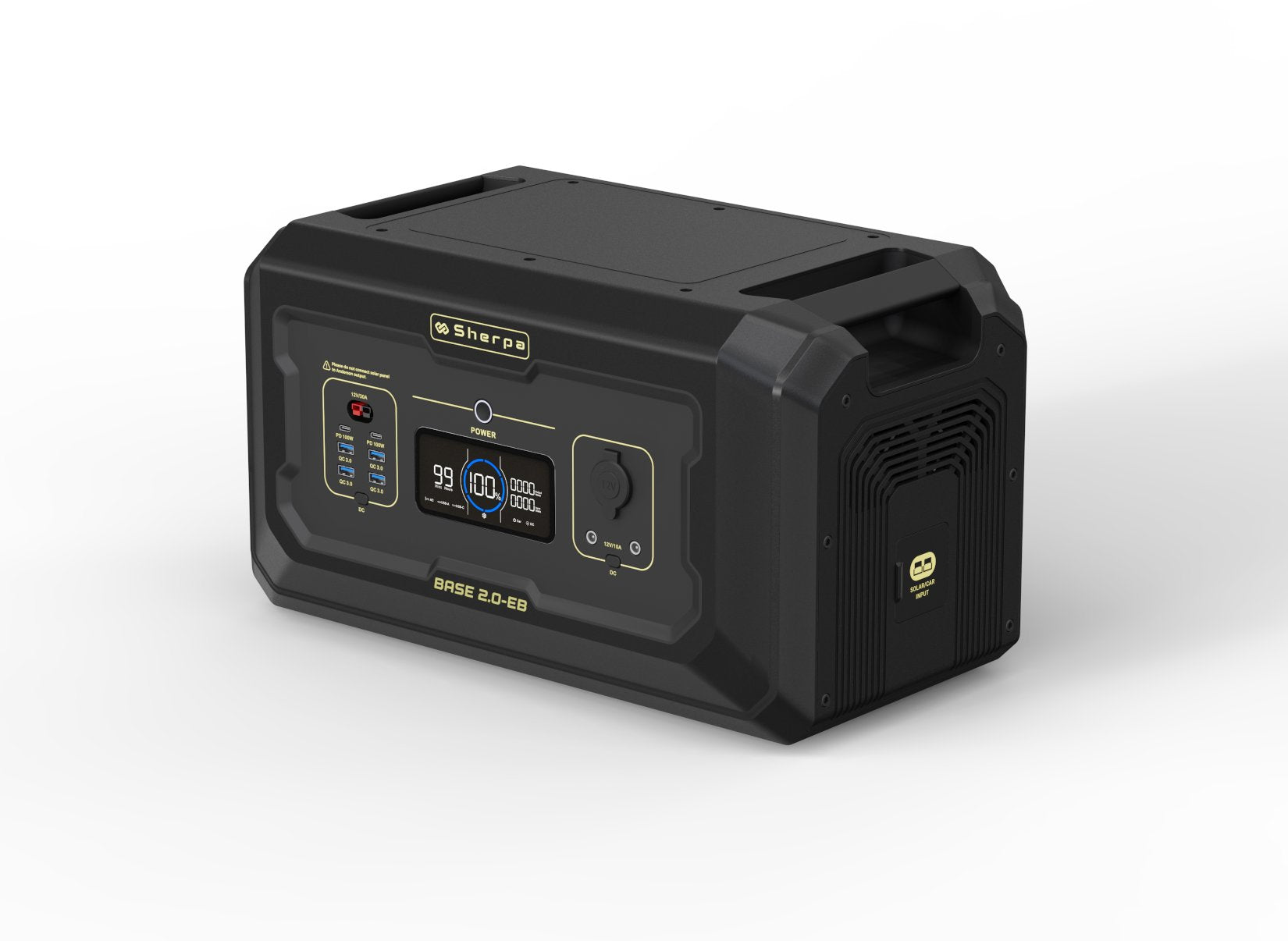

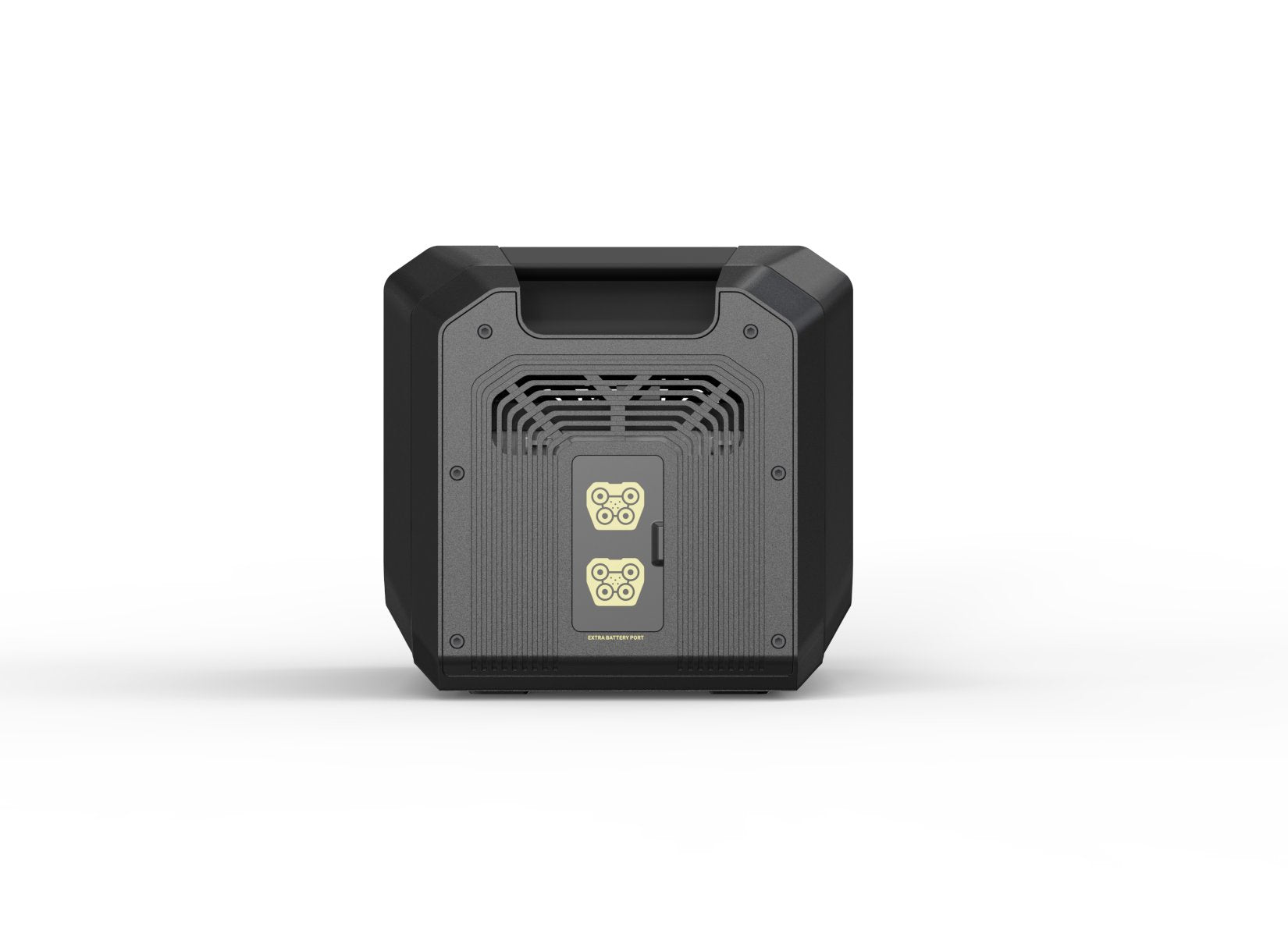

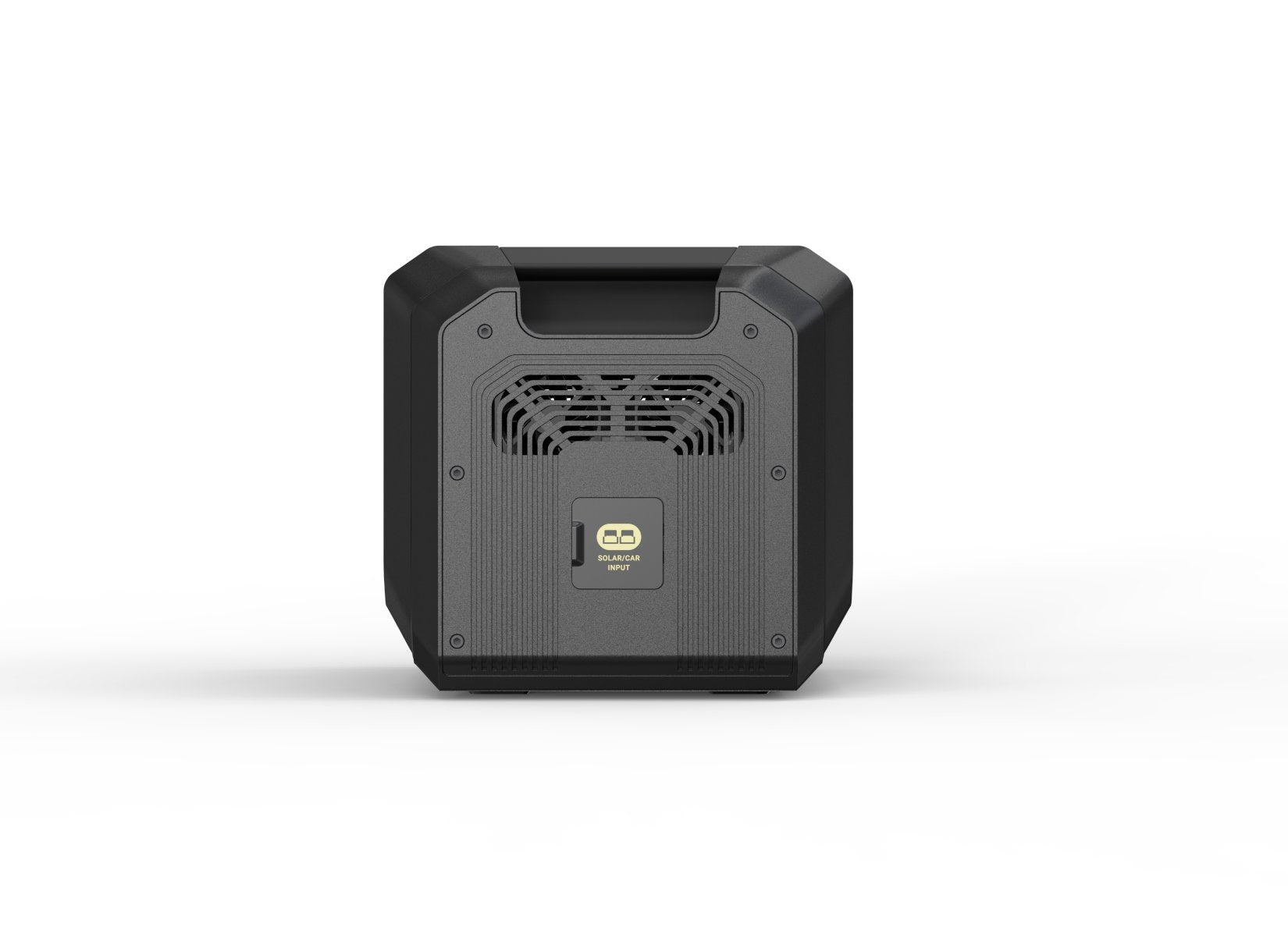

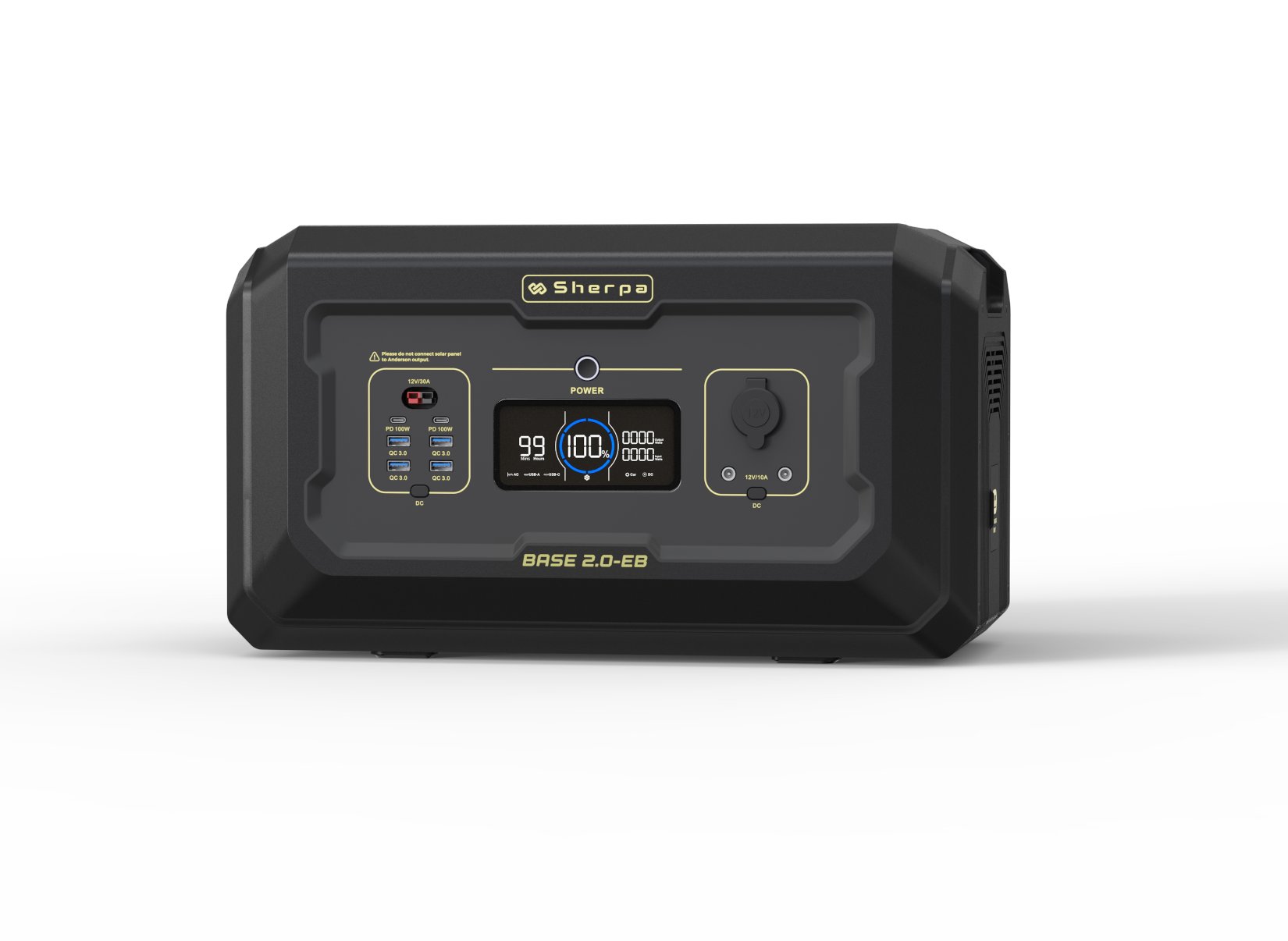

Sherpa BASE 2.0-EB

• The BASE 2.0-EB features an intuitive LCD screen that provides real-time information about battery level, power input/output, and charging status. This clear and easy-to-read display ensures you have full visibility of the unit's performance, allowing you to manage your energy effectively.

• The BASE 2.0-EB has an IP rating of 21 and built with fireproof materials.

• The BASE 2.0-EB has a standard 5 year Warranty for peace of mind and 10-plus years lifespan.

• Leisure and Hobby (campervan, glamping, off-grid events, marine)

• Professional Use with linked with BASE 2.5 host (onboard power solution for commercial vehicles, DIY, skilled trades, film industry, contractors, medical equipment)

• Home Back-up Solution when linked with BASE 2.5 host (fridge, freezer, TV, devices, Wi-Fi, microwave, washing machine, air fryer, oven)

• Off-Grid Living when linked with BASE 2.5 host (Hybrid renewable charging at high rates, high storage potential with linked extra batteries)

BATTERY INFO:

• Capacity: 2048 Wh (Depth of Discharge 85%)

• Chemistry: LifePO₄ (Lithium Iron Phosphate)

• Life Cycles: 3,500+ Cycles to 80% Original Capacity

• Shelf-Life: Discharge the battery to 30% every three months and recharge it to 60%.

• Management System: MPPT Controller, BMS

• Protection: Over-voltage, Low-voltage, Overheat, Overload

• Discharging Temperature: -20°C~45°C/-4°F~113°F

• Charging Temperature: 0°C~45°C/32°F~113°F

• Storage Temperature: 20-30°C/68°F~86°FDC

DC OUTPUT:

Outlets:
• USB-A Port: 4 x (5V,9V,12V, Max 18W) Shared

• USB-C Port: 2 x (5V,9V,12V,20V, Max 18W and 100W) Shared

• DC 5525 Output Port: 2 x (12V-5A)DC

• Anderson Output Port: 1 x DC 12V-30A

• Aux Car Port: 1 x DC 12V-10AAC

AC INPUT:

• AC Input Power: 700W Max when charging via the BASE 2.5 host.

DC INPUT:

• DC Input Power: 2100W Max

• DC Inlet: DC Anderson Input Port x 1 DC Charging (12V-150V, MPPT:18V-140V, 15A Max)

RECHARGING TIMES (0-100%):

•AC Input: 3.5 hours when linked to BASE 2.5 host

• Solar / DC Input: 1 hour

• Vehicle Charger (fast): 4.5 hours

• Vehicle Charger (slow): 20 hours

GENERAL:

• IP Rating: 21APP

• Compatible: When linked to BASE 2.5 host

• Expandable Capacity: Yes (up to 15 x Sherpa BASE 2.0-EB link with the BASE 2.5)

• Warranty: 5-year Standard Warranty

• Dimensions & Weight:
Length(L): 460mm
Width(W): 270mm
Height(H): 265mm
Weight: 19Kg

• 1x Sherpa BASE 2.0-EB
• 1x Link Cable
• User Manual
