Sherpa BASE 2.5

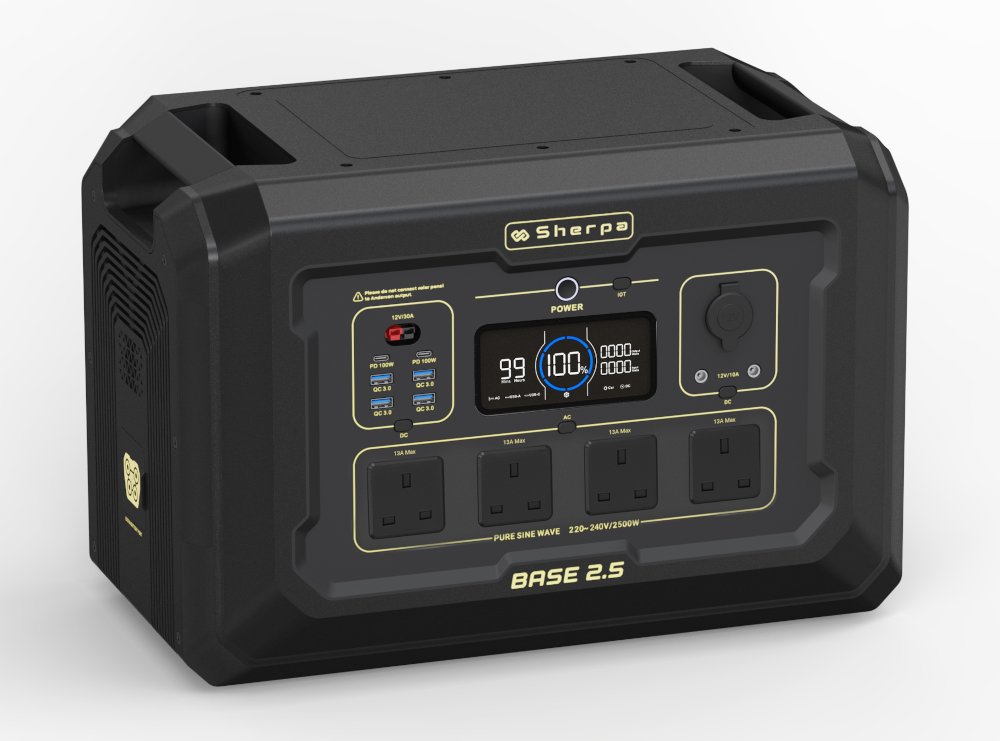

• The BASE 2.5 features an intuitive LCD screen that provides real-time information about battery
level, power input/output, and charging status. This clear and easy-to-read display ensures you have
full visibility of the unit's performance, allowing you to manage your energy effectively. The BASE
2.5 is also APP compatible (via the OUEPES app on Appstore), connecting via Bluetooth or Wi-Fi, so
you can even monitor and control your power station remotely.

• The BASE 2.5 has an IP rating of 21 and built with fireproof materials.

• The BASE 2.5 has a standard 5-year Warranty for peace of mind and 10-plus years lifespan.

• Leisure and Hobby (campervan, glamping, off-grid events, marine)

• Professional Use (onboard power solution for commercial vehicles, DIY, skilled trades, film industry, contractors, medical equipment)

• Home Back-up Solution (fridge, freezer, TV, devices, Wi-Fi, microwave, washing machine, air fryer, oven)

• Off-Grid Living (Hybrid renewable charging at high rates, high storage potential with linked extra batteries)

BATTERY INFO:

• Capacity: 2048 Wh (Depth Of Discharge 85%)

• Chemistry: LiFePO₄ (Lithium Iron Phosphate)

• Life Cycles: 3,500+ Cycles to 80% Original Capacity

• Shelf-life: Discharge the battery to 30% every three months and recharge it to 60%

• Management System: MPPT Controller, BMS

• Protection: Over-voltage, Low-voltage, Overheat, Overload, Short-circuit, Self-recovery

• Discharging Temperature: -20°C~45°C/-4°F~113°F

• Charging Temperature: 0°C~45°C/32°F~113°F

• Storage Temperature: 20-30°C/68°F~86°F

AC OUTPUT:

• Output Power: 2500W

• Surge: 5400W for <1s

• Outlets: AC Sockets: 4 × 220V-240V/50Hz

DC OUTPUT:

Outlets:
• USB-A Port: 4 x (5V,9V,12V, Max 18W) Shared

• USB-C Port: 2 x (5V,9V,12V,20V, Max 18W and 100W) Shared

• DC 5525 Output Port: 2 x (12V-5A)

• DC Anderson Output Port: 1 x DC 12V-30A

• Aux Car Port: 1 x DC 12V-10A

AC INPUT:

• AC Input Power: 1600W Max

• AC Inlet: 1 x AC 220V-240V

DC INPUT:

• DC Input Power: 2100W Max

• DC Inlet: DC Anderson Input Port x 1 DC Charging (12V-150V, MPPT:18V-140V, 15A Max)

RECHARGE TIMES (0-100%):

• AC Input: 1.5 hours

• Solar / DC Input: 1 hour

• Vehicle Charger (fast): 4.5 hours

• Vehicle Charger (slow): 20 hours

GENERAL:

• IP Rating: 21

• UPS Function: 8-20ms

• APP Compatible: Bluetooth/Wi-Fi

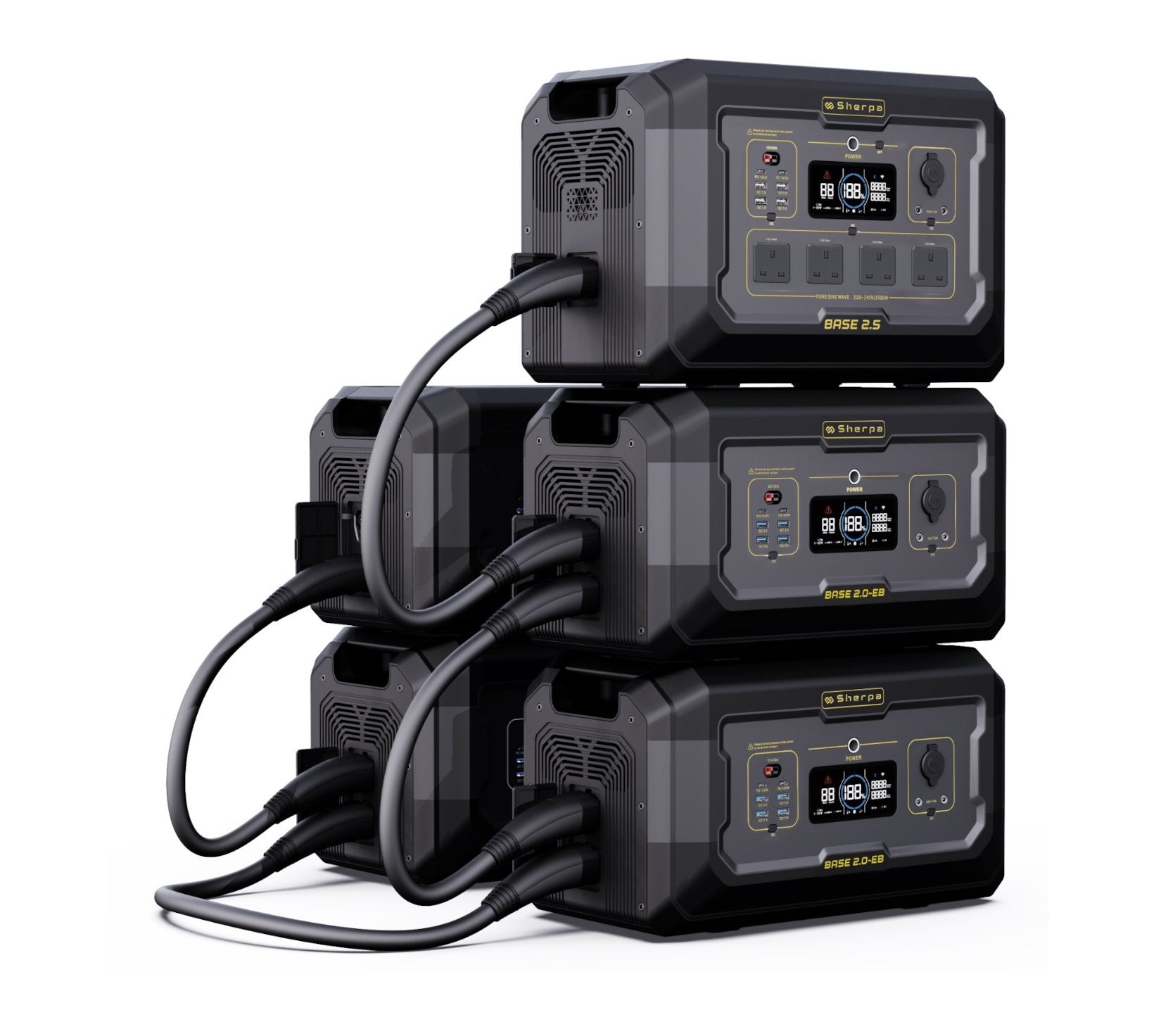

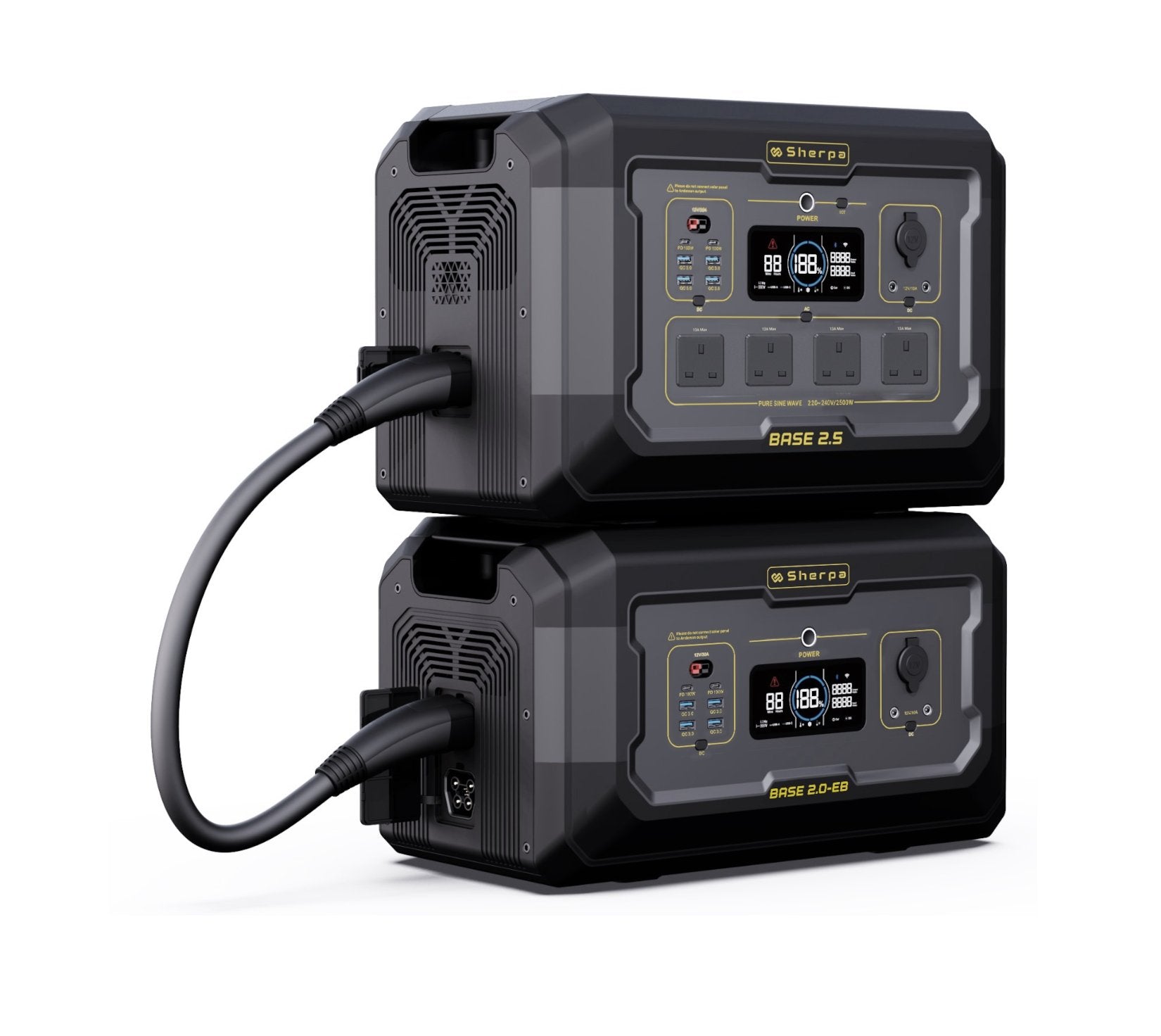

• Expandable Capacity: Yes (with up to 15 x Sherpa BASE 2.0-EB > 32,768Wh)

• Warranty: 5-year Standard Warranty

• Inverter: Pure Sine Wave

• Dimensions & Weight
Length(L): 460mm
Width(W): 270mm
Height(H): 305mm
Weight: 22Kg

• 1 x BASE 2.5
• 1 x AC Charging Cable
• 1 x Car Charging Cable
• 1 x MC4 Solar Charging Cable (LSMC4-Anderson)
• 1 x Anderson to Anderson Cable
• 1 x Anderson to 7909 Cable
• 1 x Anderson to Car Charge Cable
• User Manual
