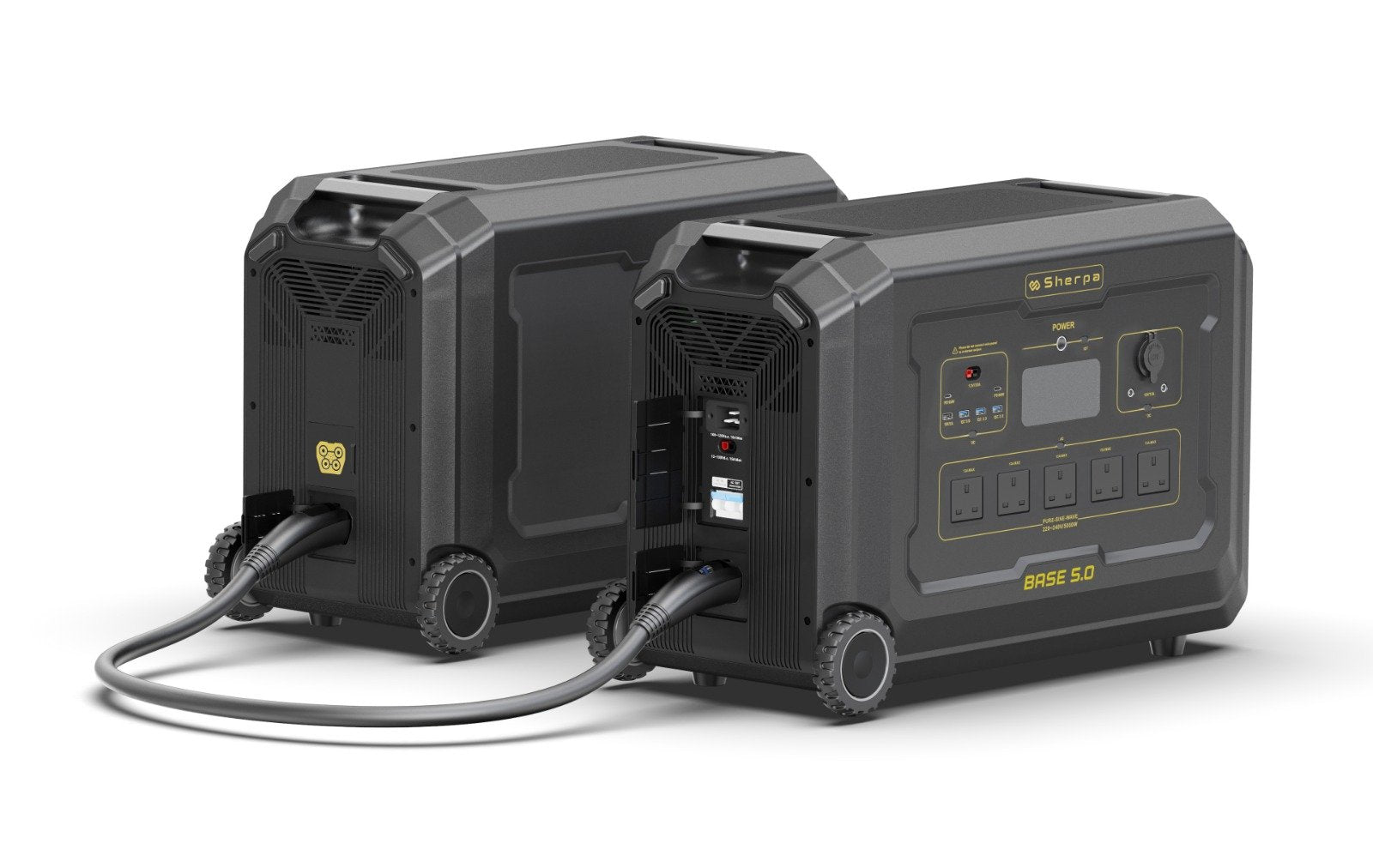

Sherpa BASE 5.0 + BASE 5.0 EB (Bundle)

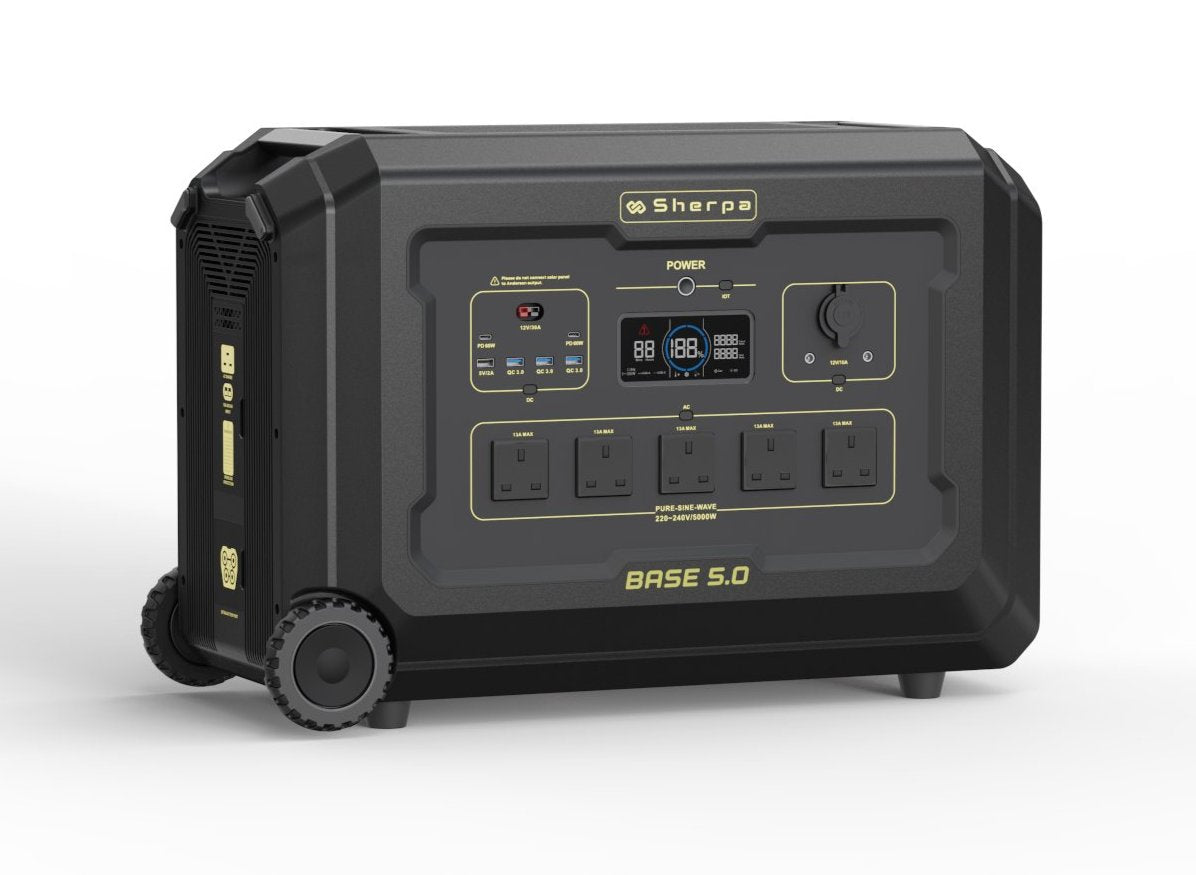

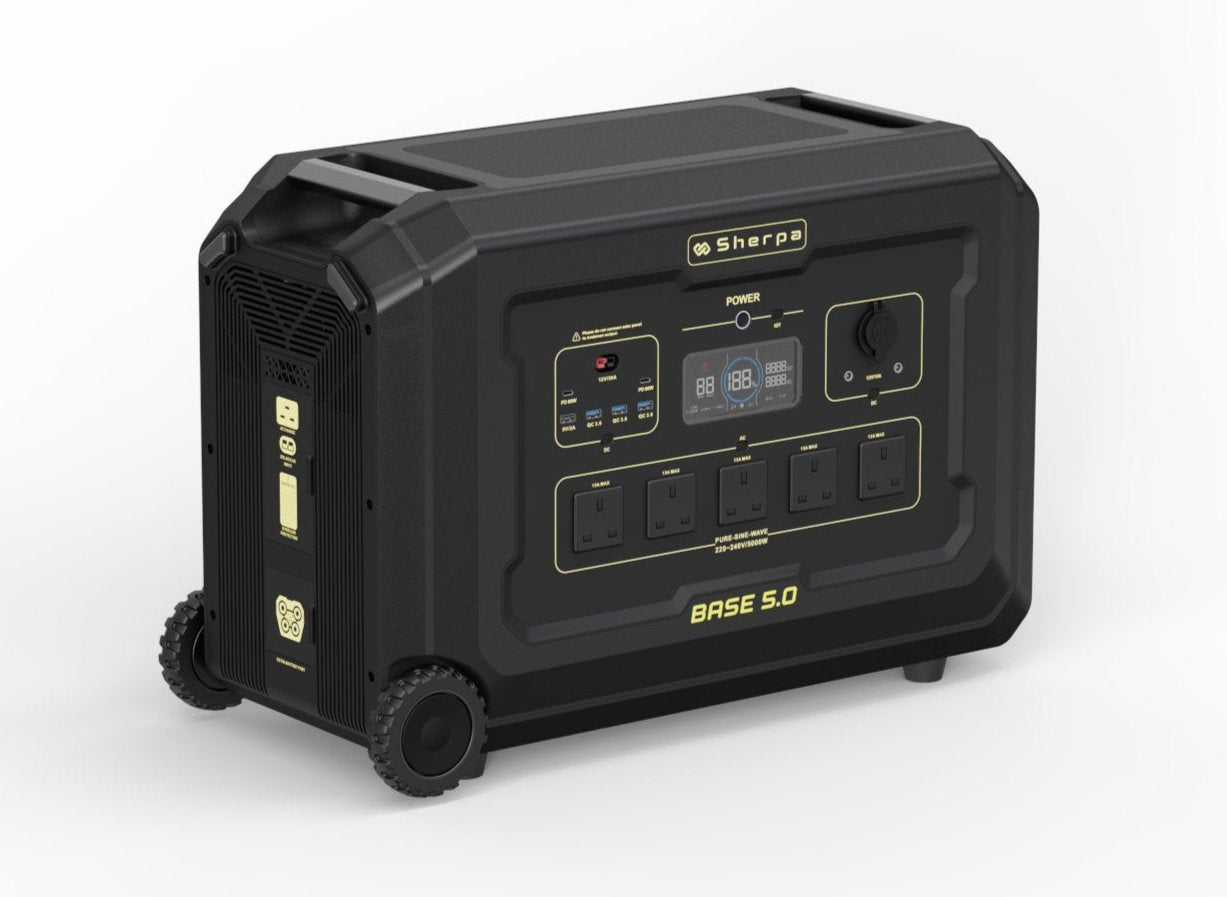

BASE 5.0:
• The BASE 5.0 features an intuitive LCD screen that provides real-time information about battery
level, power input/output, and charging status. This clear and easy-to-read display ensures you have
full visibility of the unit's performance, allowing you to manage your energy effectively. The BASE
5.0 is also APP compatible (via the OUEPES app on Appstore), connecting via Bluetooth or Wi-Fi, so
you can even monitor and control your power station remotely.

• The BASE 5.0 has an IP rating of 21 and built with fireproof materials.

• The BASE 5.0 has a standard 5-year Warranty for peace of mind and 10-plus years lifespan.

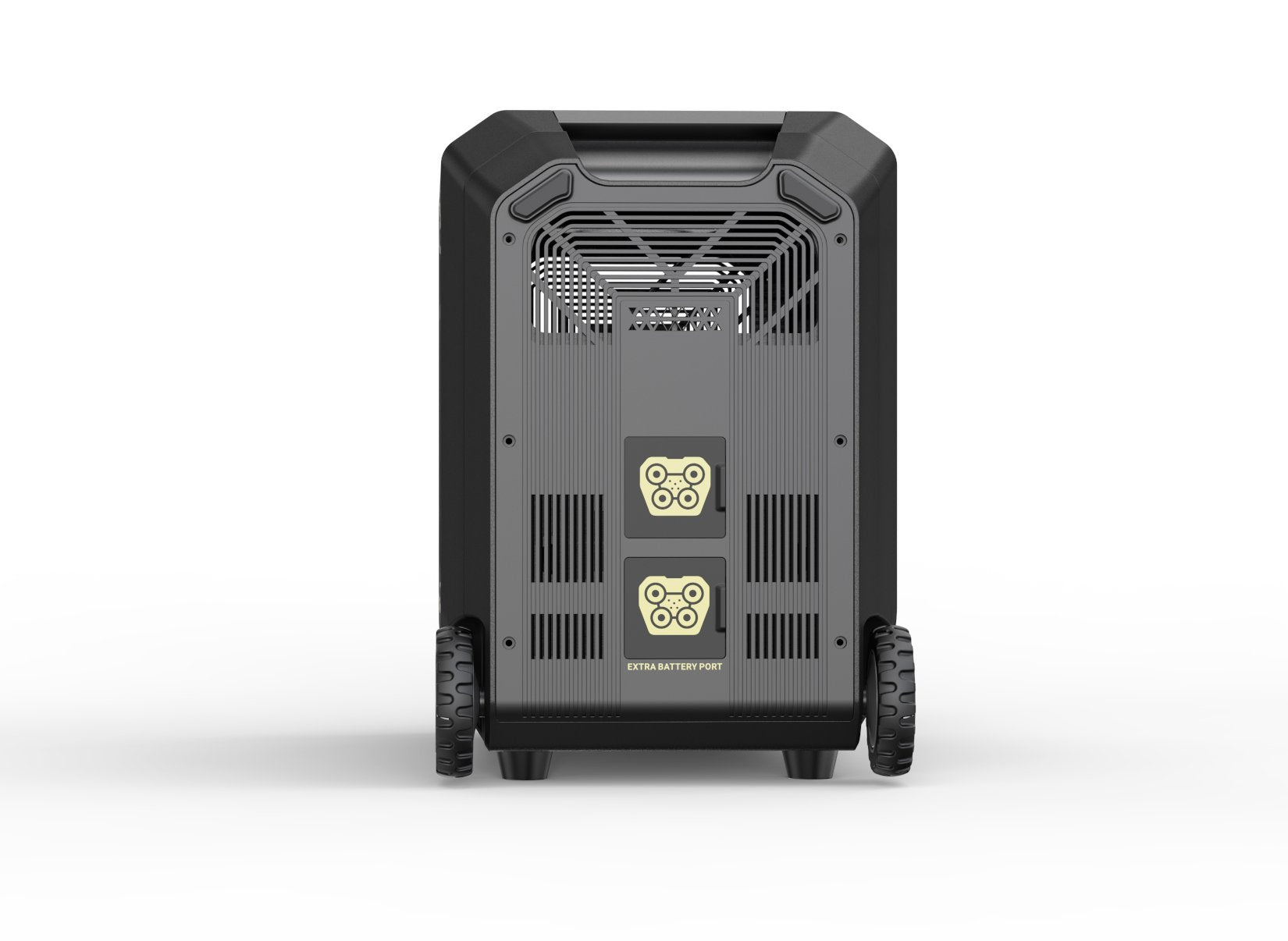

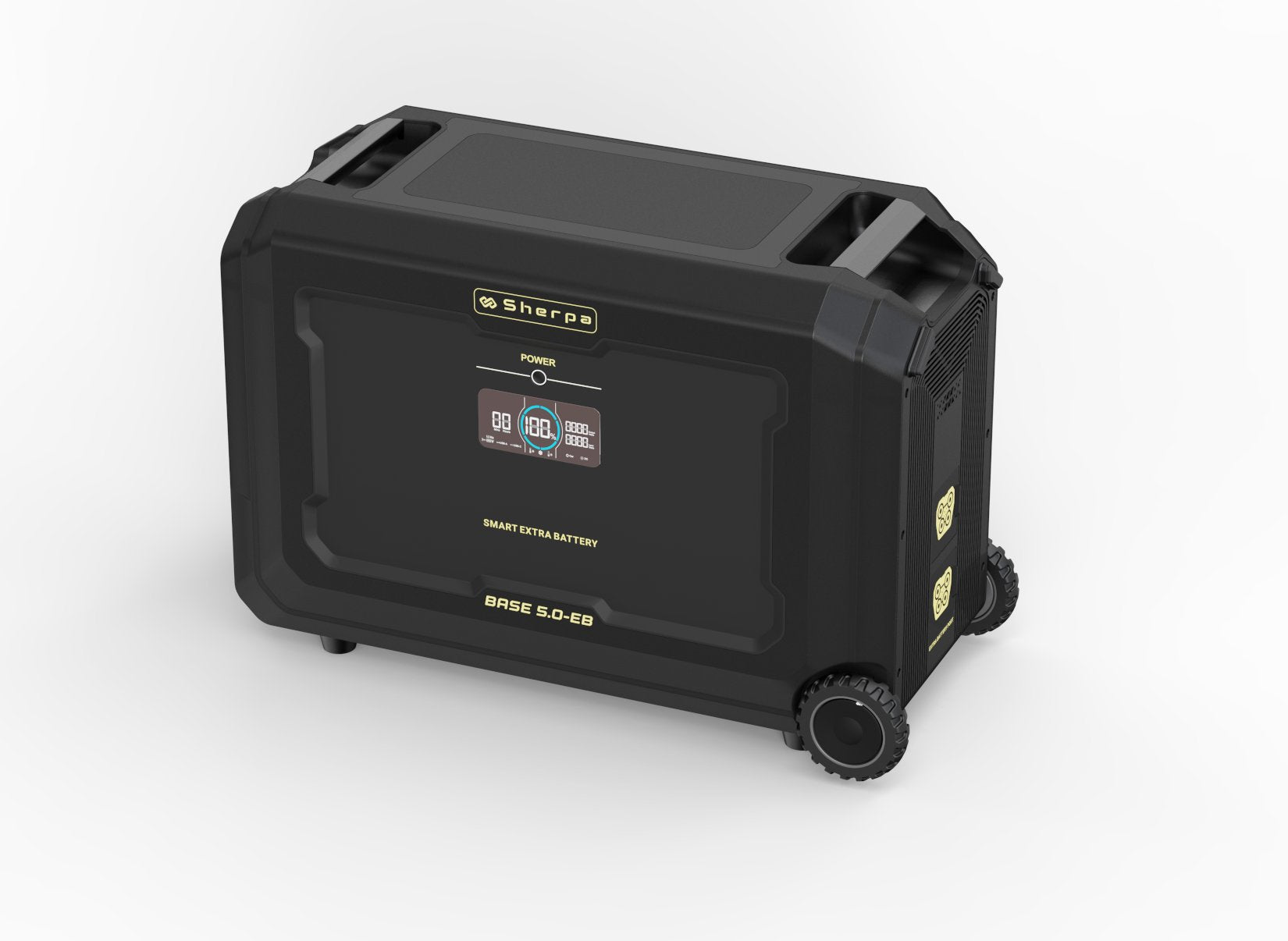

BASE 5.0 EB:
• The BASE 5.0-EB features an intuitive LCD screen that provides real-time information about
battery level, power input/output, and charging status. This clear and easy-to-read display ensures
you have full visibility of the unit's performance, allowing you to manage your energy effectively.

• The BASE 5.0-EB has an IP rating of 21 and built with fireproof materials.

• The BASE 5.0-EB has a standard 5-year Warranty for peace of mind and 10-plus years lifespan.

• Leisure and Hobby (motorhome, glamping, off-grid events, luxury marine)

• Professional Use (onboard power solution for commercial vehicles, DIY, skilled trades, film
production, contractors, medical equipment)

• Home Back-up Solution (fridge, freezer, TV, devices, Wi-Fi, kettle, microwave, washing machine, air
fryer, oven)

• Off-Grid Living (Hybrid renewable charging at high rates, high storage plug-and-play solution and excellent output power)

BASE 5.0:
BATTERY INFO:

• Capacity: 5040 Wh (Depth Of Discharge 85%)

• Chemistry: LiFePO₄ (Lithium Iron Phosphate)

• Life Cycles: 3,500+ Cycles to 80% Original Capacity

• Shelf-life: Discharge the battery to 30% every three months and recharge it to 60%

• Management System: MPPT Controller, BMS

• Protection: Over-voltage, Low-voltage, Overheat, Overload, Short-circuit, Self-recovery

• Discharging Temperature: -20°C~45°C/-4°F~113°F

• Charging Temperature: 0°C~45°C/32°F~113°F

• Storage Temperature: 20-30°C/68°F~86°F

AC OUTPUT:

• Output Power: 5000W

• Surge: 7000W for <1s

• Outlets: AC Sockets: 5 × 220V-240V/50Hz

DC OUTPUT:

Outlets:
• USB-A Port: 4 x (5V,9V,12V, Max 18W) Shared

• USB-C Port: 2 x (5V,9V,12V,20V, Max 18W and 100W) Shared

• DC 5525 Output Port: 2 x (12V-5A)

• DC Anderson Output Port: 1 x DC 12V-30A

• Aux Car Port: 1 x DC 12V-10A

AC INPUT:

• AC Input Power: 2500W Max

• AC Inlet: 1 x AC 220V-240V

DC INPUT:

• DC Input Power: 2100W Max

• DC Inlet: DC Anderson Input Port x 1 DC Charging (12V-150V, MPPT:18V-140V, 15A Max)

RECHARGE TIMES (0-100%):

• AC Input: 2.3 hours

• Solar / DC Input: 2.5 hour

• Vehicle Charger (fast): 10 hours

GENERAL:

• IP Rating: 21

• UPS Function: 8-20ms

• APP Compatible: Bluetooth/Wi-Fi

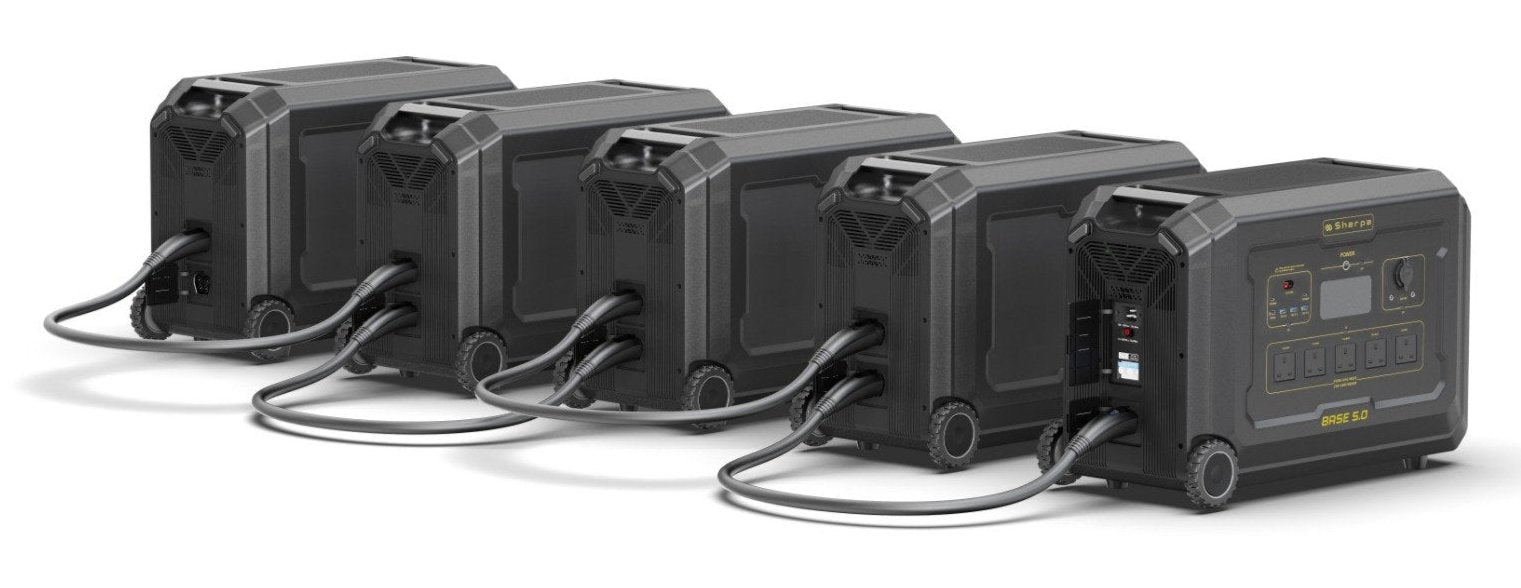

• Expandable Capacity: Yes (with up to 15 x Sherpa BASE 5.0-EB > 80,640Wh)

• Warranty: 5-year Standard Warranty

• Inverter: Pure Sine Wave

• Dimensions & Weight
Length(L): 642mm
Width(W): 305mm
Height(H): 438mm
Weight: 51Kg

BASE 5.0 EB:
BATTERY INFO:

• Capacity: 5040 Wh (Depth of Discharge 85%)

• Chemistry: LifePO₄ (Lithium Iron Phosphate)

• Life Cycles: 3,500+ Cycles to 80% Original Capacity

• Shelf-Life: Discharge the battery to 30% every three months and recharge it to 60%.

• Management System: BMS

• Protection: Over-voltage, Low-voltage, Overheat, Overload

• Discharging Temperature: -20°C~45°C/-4°F~113°F

• Charging Temperature: 0°C~45°C/32°F~113°F

• Storage Temperature: 20-30°C/68°F~86°FDC

DC OUTPUT:

Outlets:
• Link Port x 2

DC INPUT:

• DC Input Power: 700W Max when charging via the BASE 5.0 host

RECHARGING TIMES (0-100%):

•AC Input: 1.8 hours

• Solar / DC Input: 2.5 hours

• Vehicle Charger (fast): 3.5 hours

GENERAL:

• IP Rating: 21

• APP Compatible: When linked to BASE 5.0 host

• Expandable Capacity: Yes (up to 15 x Sherpa BASE 5.0-EB with the BASE 5.0 host)

• Warranty: 5-year Standard Warranty

• Dimensions & Weight:
Length(L): 642mm
Width(W): 305mm
Height(H): 438mm
Weight: 44Kg

BASE 5.0:
• 1 x BASE 5.0
• 1 x AC Charging Cable
• 1 x Car Charging Cable
• 1 x MC4 Solar Charging Cable (LSMC4-Anderson)
• 1 x Anderson to Anderson Cable
• 1 x Anderson to 7909 Cable
• 1 x Anderson to Car Charge Cable
• User Manual

BASE 5.0 EB:
• 1 x BASE 5.0-EB
• 1 x Link Cable
• User Manual
