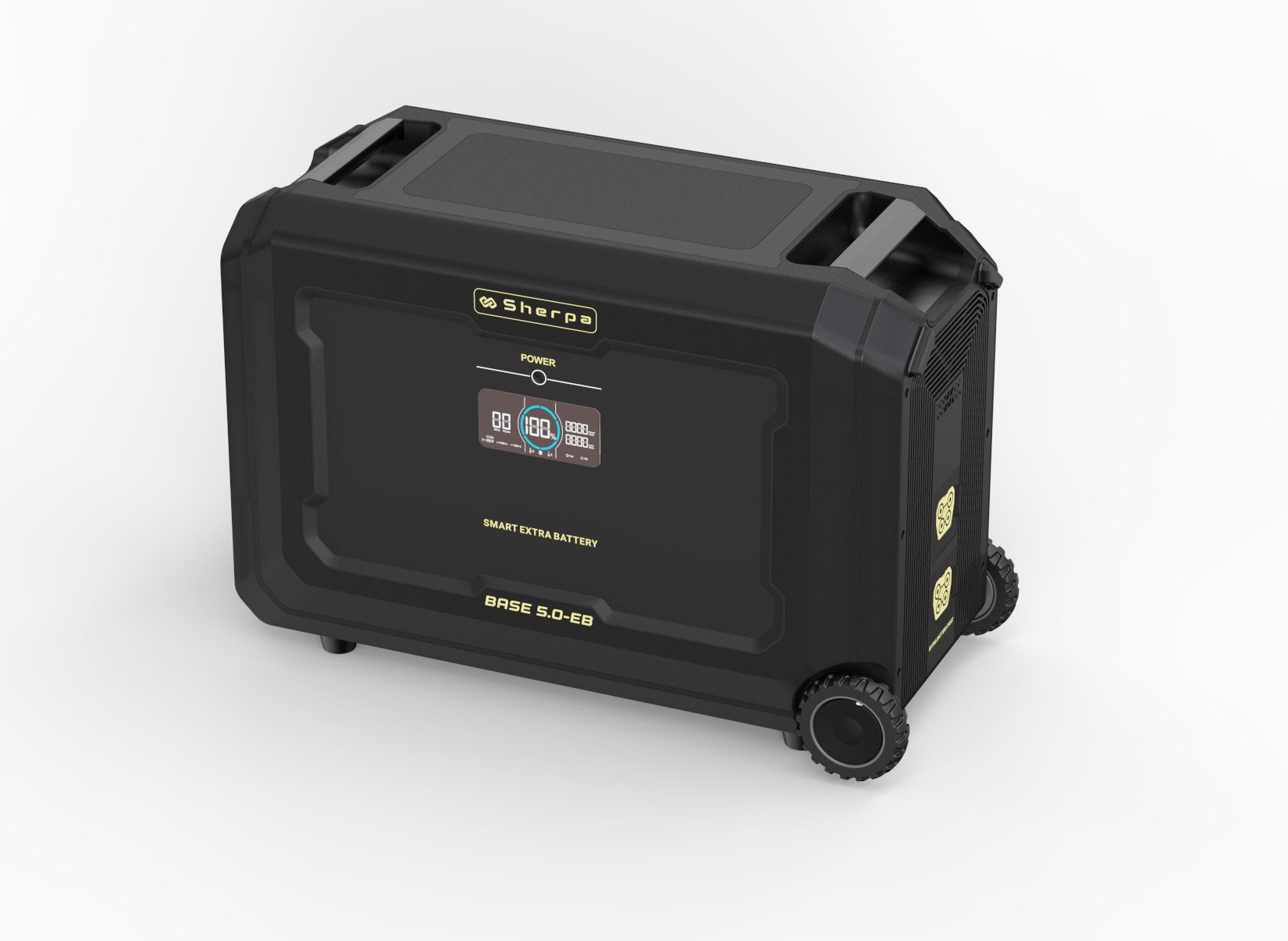

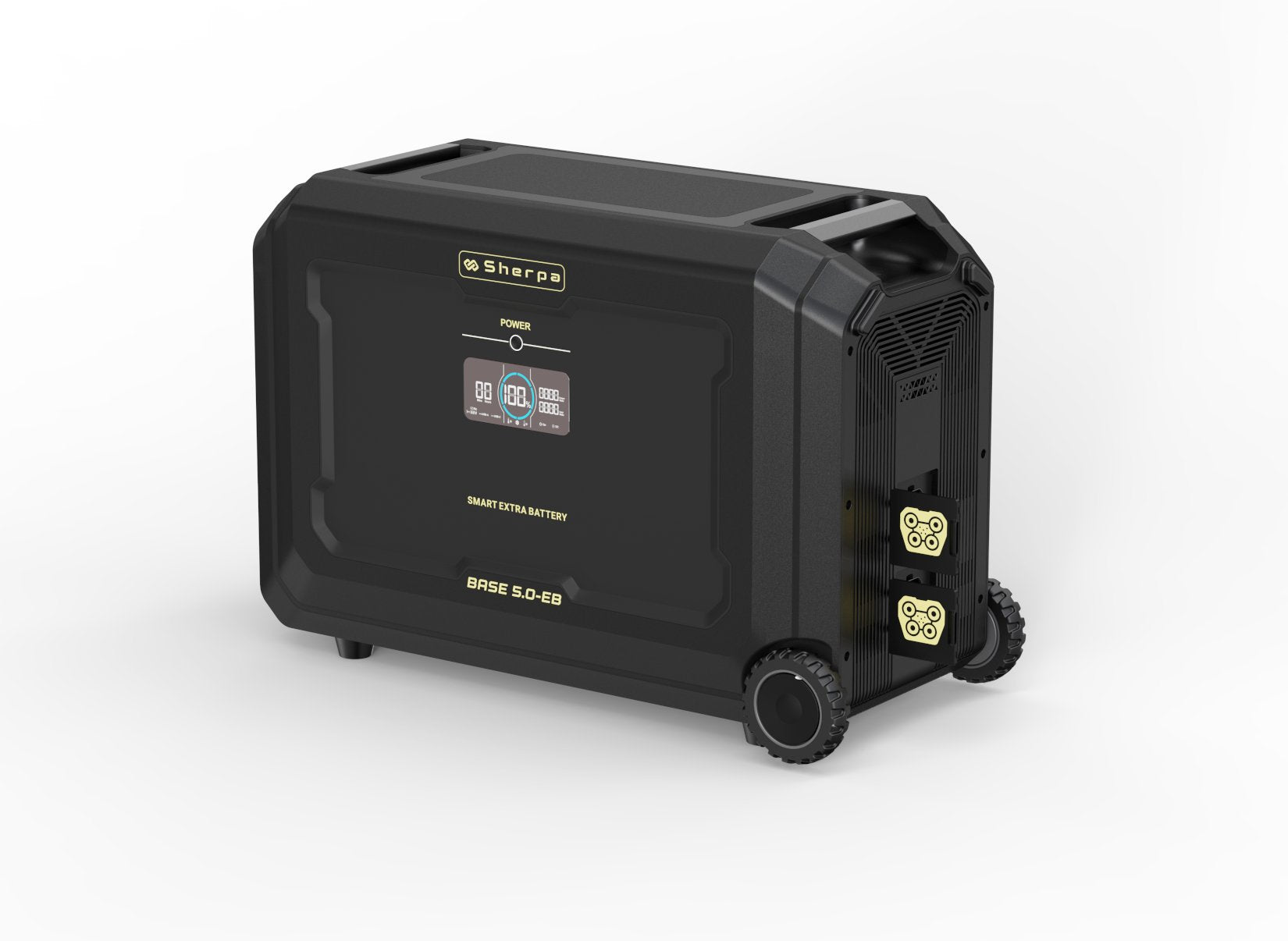

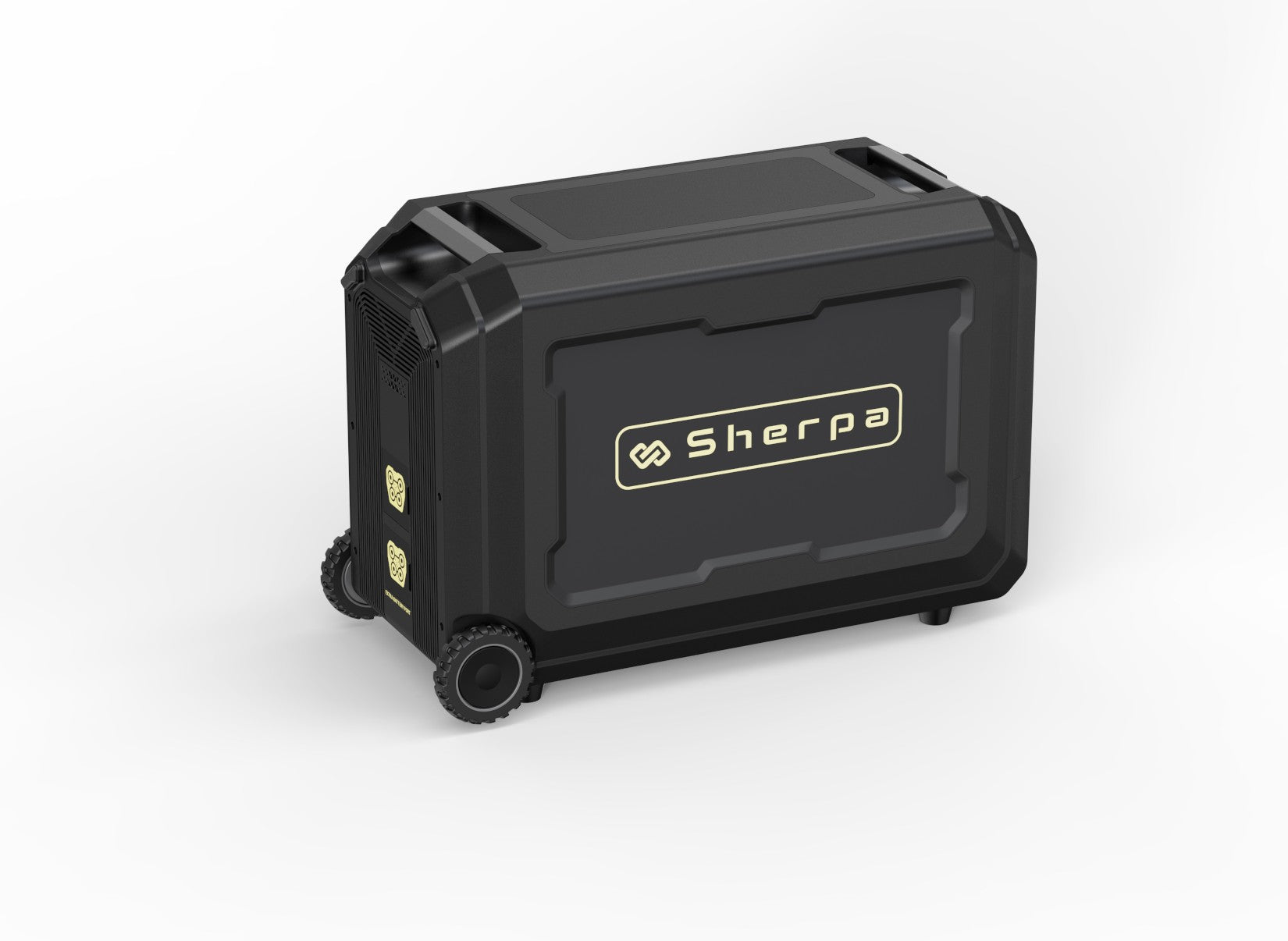

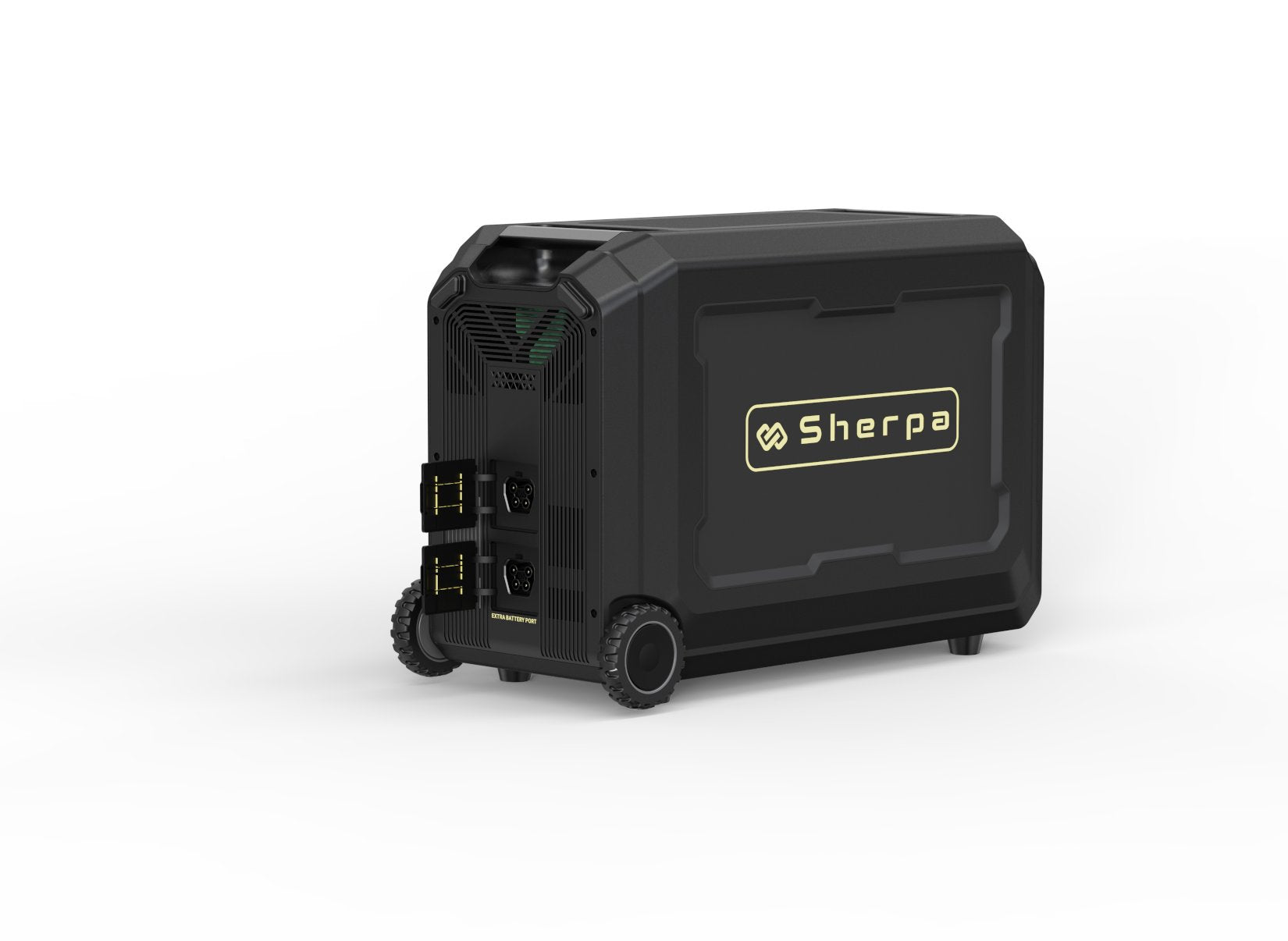

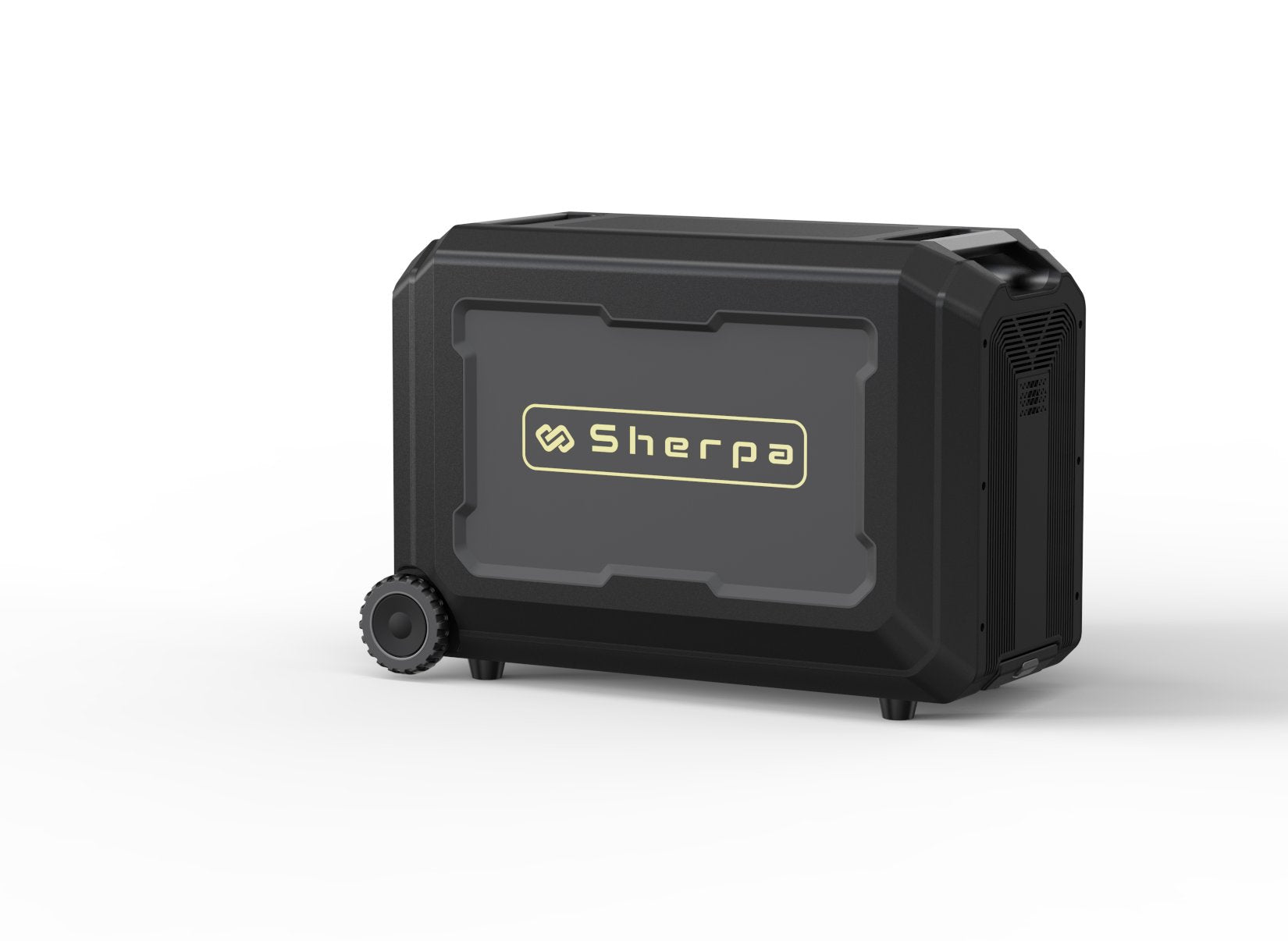

Sherpa BASE 5.0-EB

• The BASE 5.0-EB features an intuitive LCD screen that provides real-time information about
battery level, power input/output, and charging status. This clear and easy-to-read display ensures
you have full visibility of the unit's performance, allowing you to manage your energy effectively.

• The BASE 5.0-EB has an IP rating of 21 and built with fireproof materials.

• The BASE 5.0-EB has a standard 5-year Warranty for peace of mind and 10-plus years lifespan.

• Leisure and Hobby (camper-van, glamping, off-grid events, marine)

• Professional Use when linked to BASE 5.0 host (onboard power solution for commercial vehicles,
DIY, skilled trades, film industry, contractors, medical equipment)

• Home Back-up Solution when linked to BASE 5.0 host (fridge, freezer, TV, devices, Wi-Fi,
microwave, washing machine, air fryer, oven)

• Off-Grid Living when linked to BASE 5.0 host (Hybrid renewable high charge rates, high storage
potential with linked extra batteries)

BATTERY INFO:

• Capacity: 5040 Wh (Depth of Discharge 85%)

• Chemistry: LifePO₄ (Lithium Iron Phosphate)

• Life Cycles: 3,500+ Cycles to 80% Original Capacity

• Shelf-Life: Discharge the battery to 30% every three months and recharge it to 60%.

• Management System: BMS

• Protection: Over-voltage, Low-voltage, Overheat, Overload

• Discharging Temperature: -20°C~45°C/-4°F~113°F

• Charging Temperature: 0°C~45°C/32°F~113°F

• Storage Temperature: 20-30°C/68°F~86°FDC

DC OUTPUT:

Outlets:

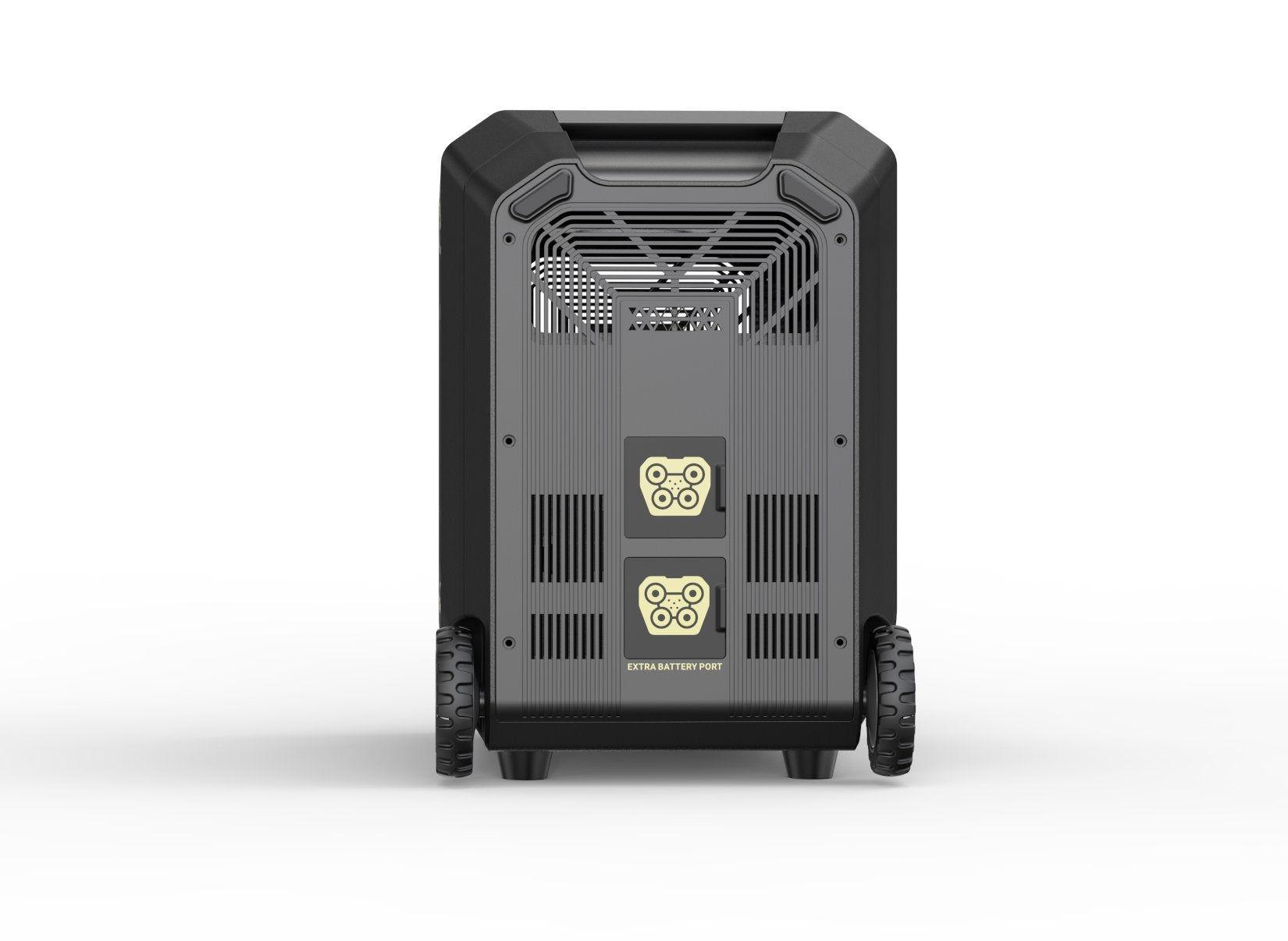

• Link Port x 2

DC INPUT:

• DC Input Power: 700W Max when charging via the BASE 5.0 host

RECHARGING TIMES (0-100%):

•AC Input: 1.8 hours

• Solar / DC Input: 2.5 hours

• Vehicle Charger (fast): 3.5 hours

GENERAL:

• IP Rating: 21

• APP Compatible: When linked to BASE 5.0 host

• Expandable Capacity: Yes (up to 15 x Sherpa BASE 5.0-EB with the BASE 5.0 host)

• Warranty: 5-year Standard Warranty

• Dimensions & Weight:
Length(L): 642mm
Width(W): 305mm
Height(H): 438mm
Weight: 44Kg

• 1 x BASE 5.0-EB
• 1 x Link Cable
• User Manual
