Sherpa Charge-500

Sherpa Charge-500

£299.00 GBP
£299.00 GBP
Sale Sold out
Taxes included.

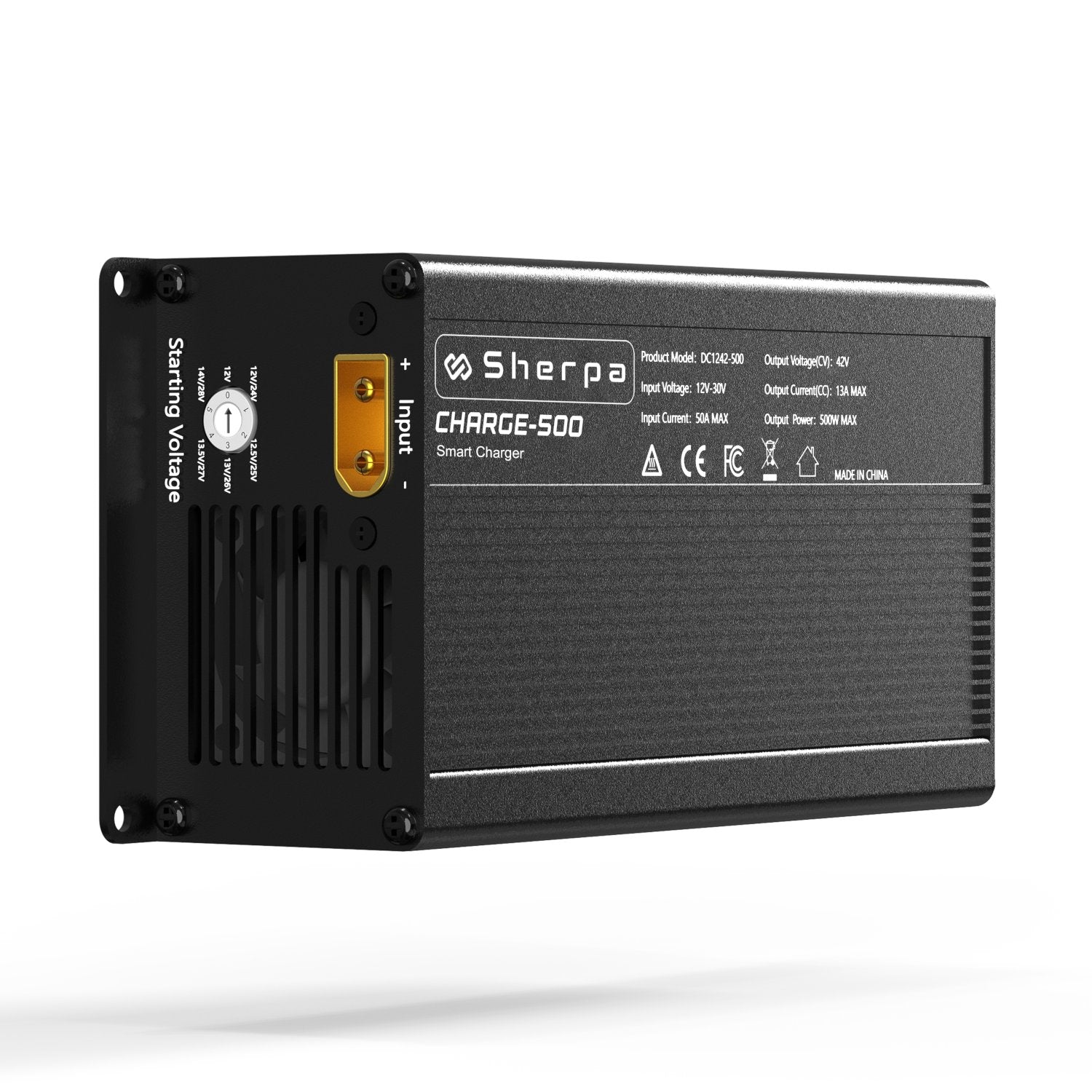

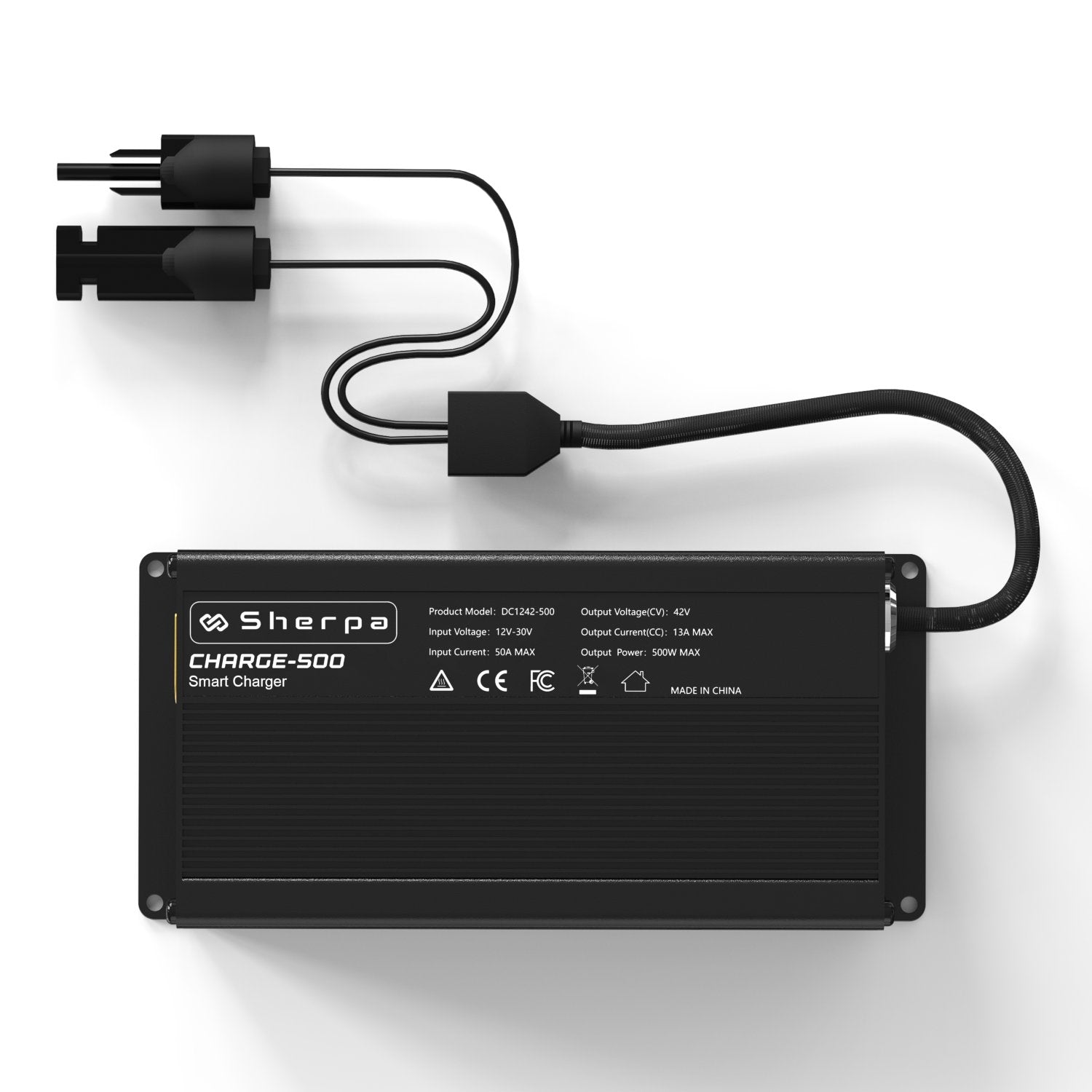

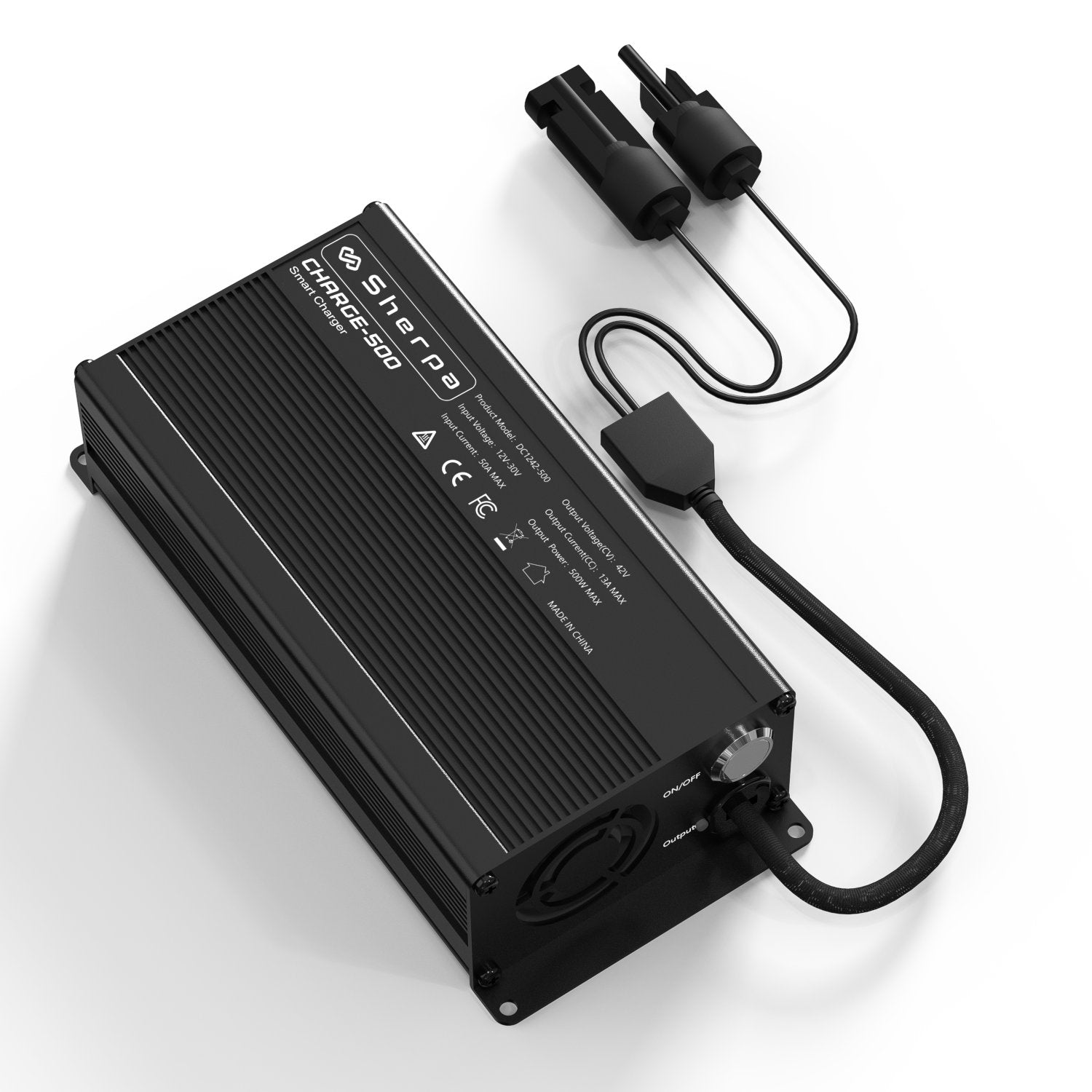

The CHARGE-500 is a user-friendly, high output onboard Smart Charger, designed to charge your system while on the go. It is simple to install and has automatic voltage detection that enables it to function only when the engine is running to prevent any vehicle battery drain.

The CHARGE-500 is built for road users with onboard power systems that have no access to mains or sufficient solar. It can however, work with solar in a hybrid setup.

General Information

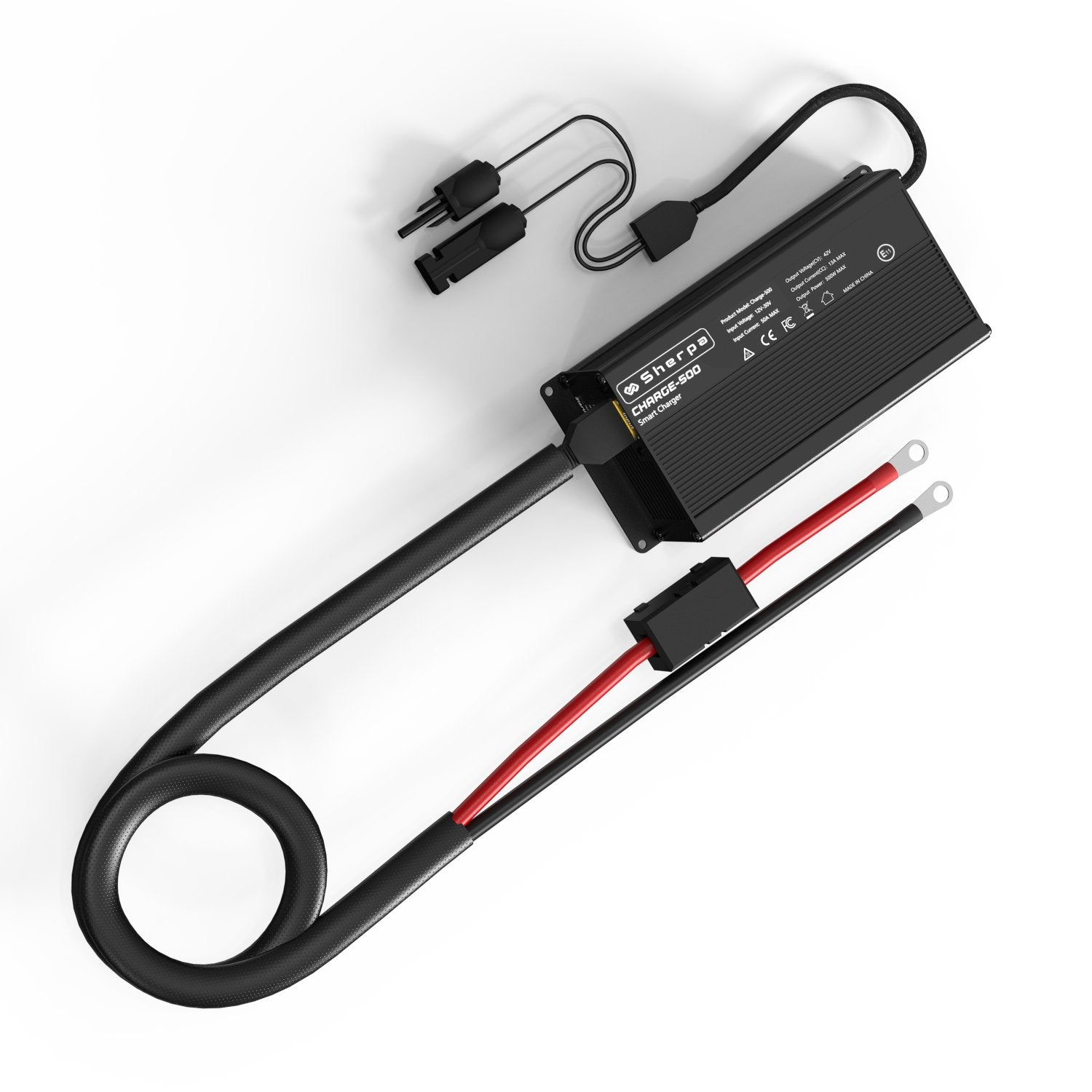

• The CHARGE-500 features a voltage startup dial to suit your vehicle. It has a pre fused set of 5m
power cables to run from your vehicle battery to the unit and 0.5m output cables to connect to MC4
type adapter cables (supplied with Sherpa Power Stations).

• The CHARGE-500 is fan cooled and features a mechanical latching isolation switch.

• The CHARGE-500 has a standard 5-year Warranty for peace of mind and 10-plus years lifespan.

Applications

• Leisure and Hobby (camping, campervan, marine)

• Professional Use (commercial vehicles, DIY, skilled trades, film industry, agricultural, contractors,
refrigeration vehicles)

Technical Specification

GENERAL:

• Input: 12-30V, 50A Max

• Output: 42V, 13A Max

• Fuse: 100A

• Charge Output Power: 500W

• Standby load: ~0.1A when OFF and ~0.26A when ON

• Protection: Short-circuit, high voltage, low voltage, overheat

• Operating Temperature: -10°C~55°C/14°F~131°F

• Storage Temperature: 10°C~45°C/50°F~113°F

• Heat dissipation: Fan cooled

• Dimensions & Weight:
Length(L): 193mm
Width(W): 90mm
Height(H): 52mm
Weight: 2.5Kg

What's in the Box?

• 1 x CHARGE-500 Smart Charger
• 1 x 5m, fused (100A) input power cable set
• 1 x mini screwdriver
• User Manual
