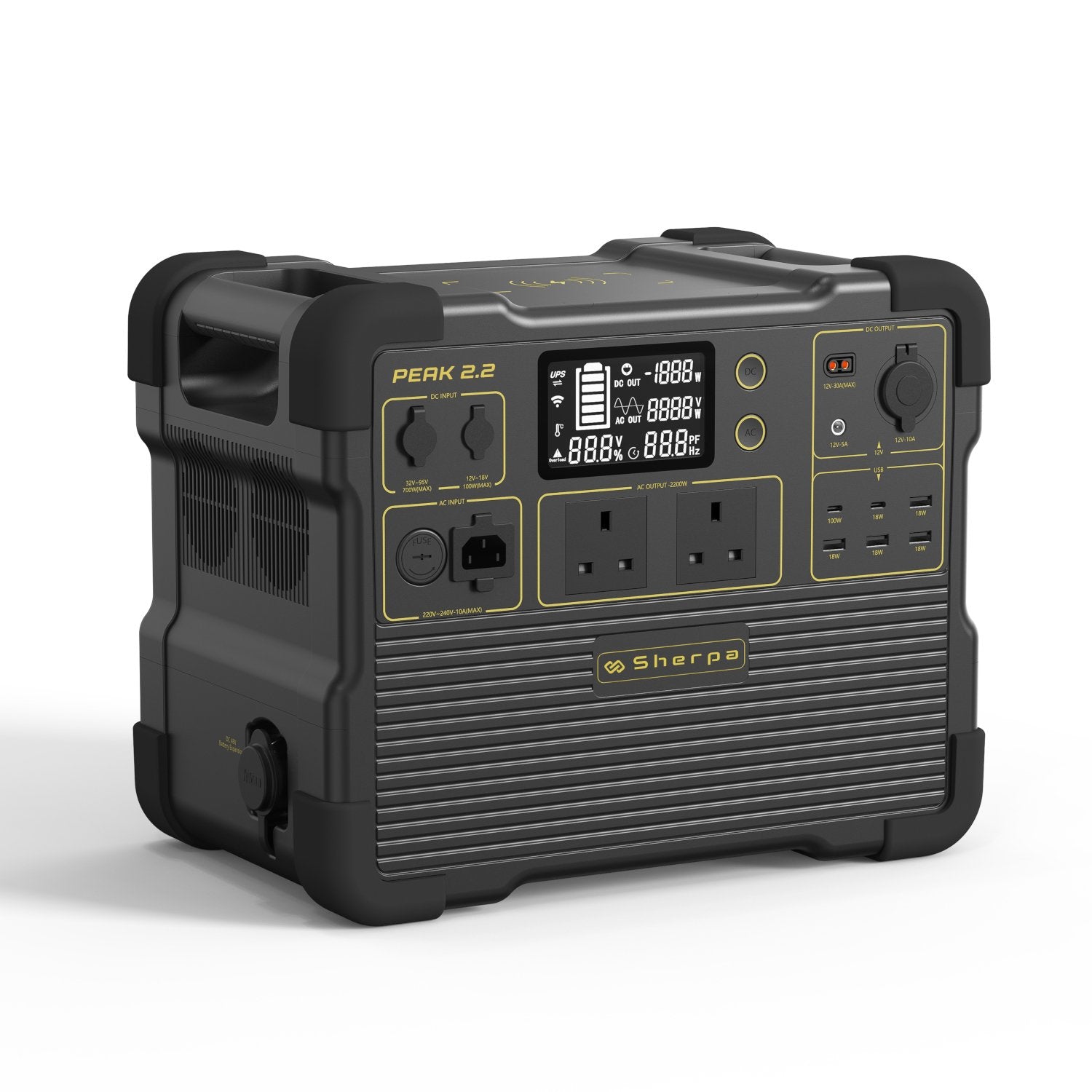

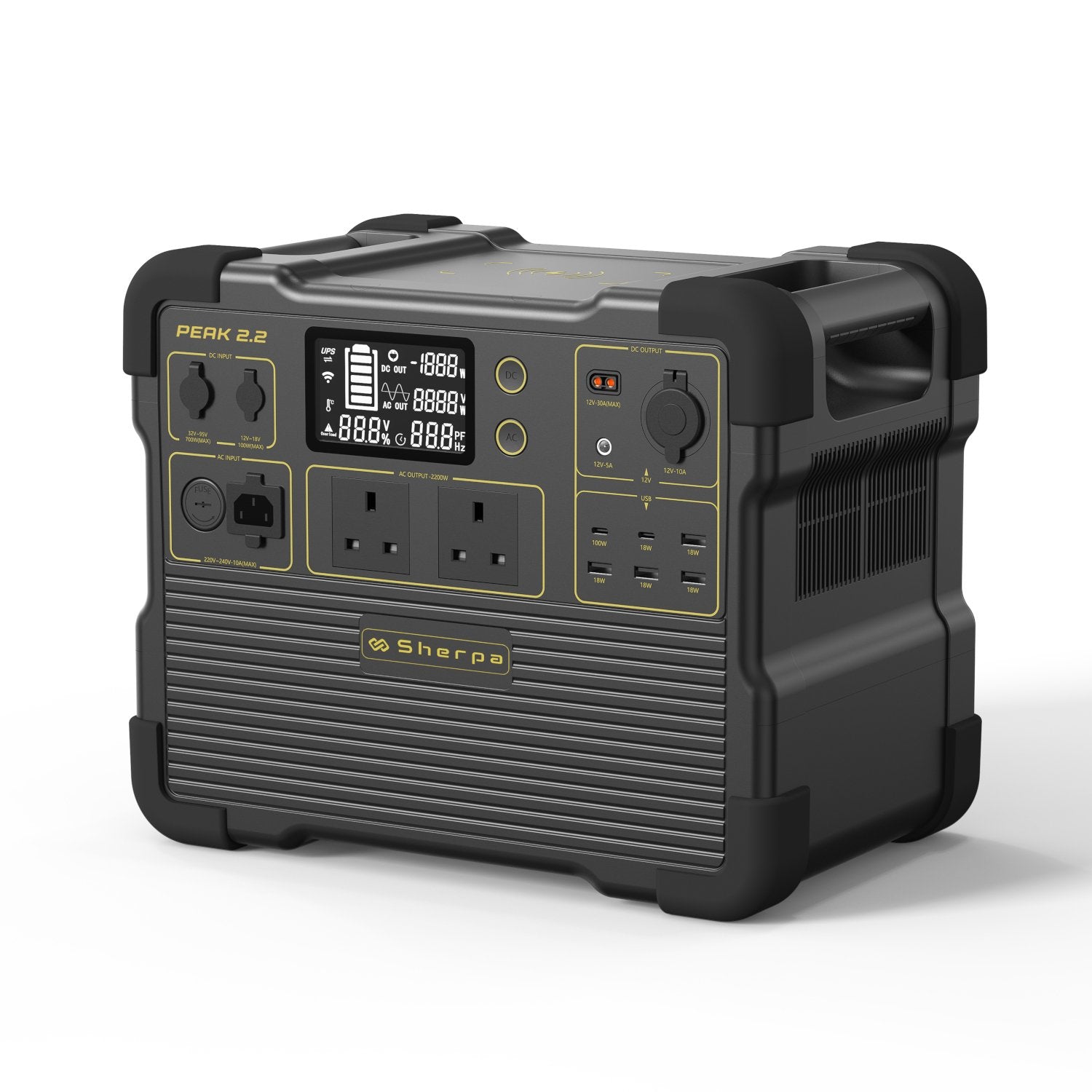

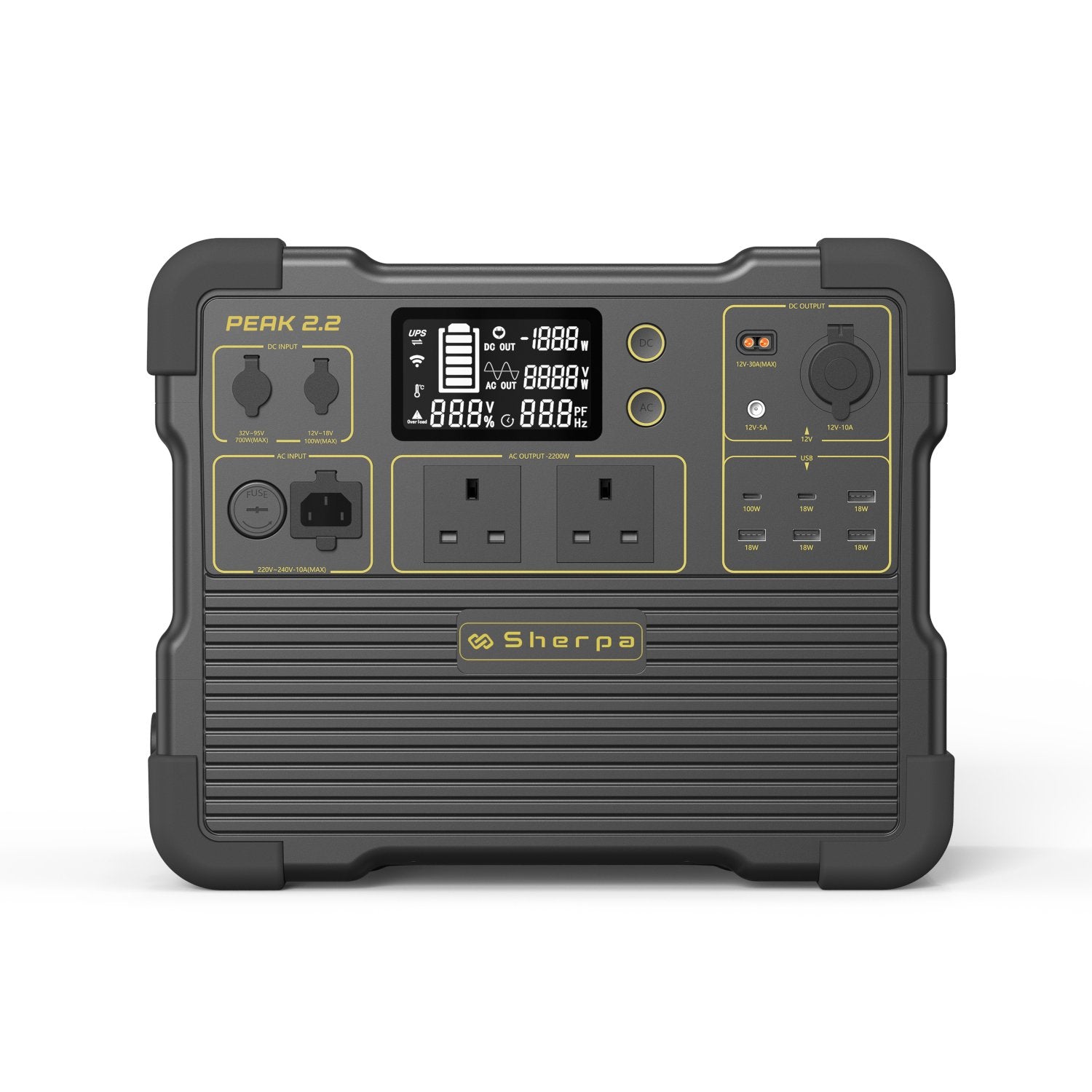

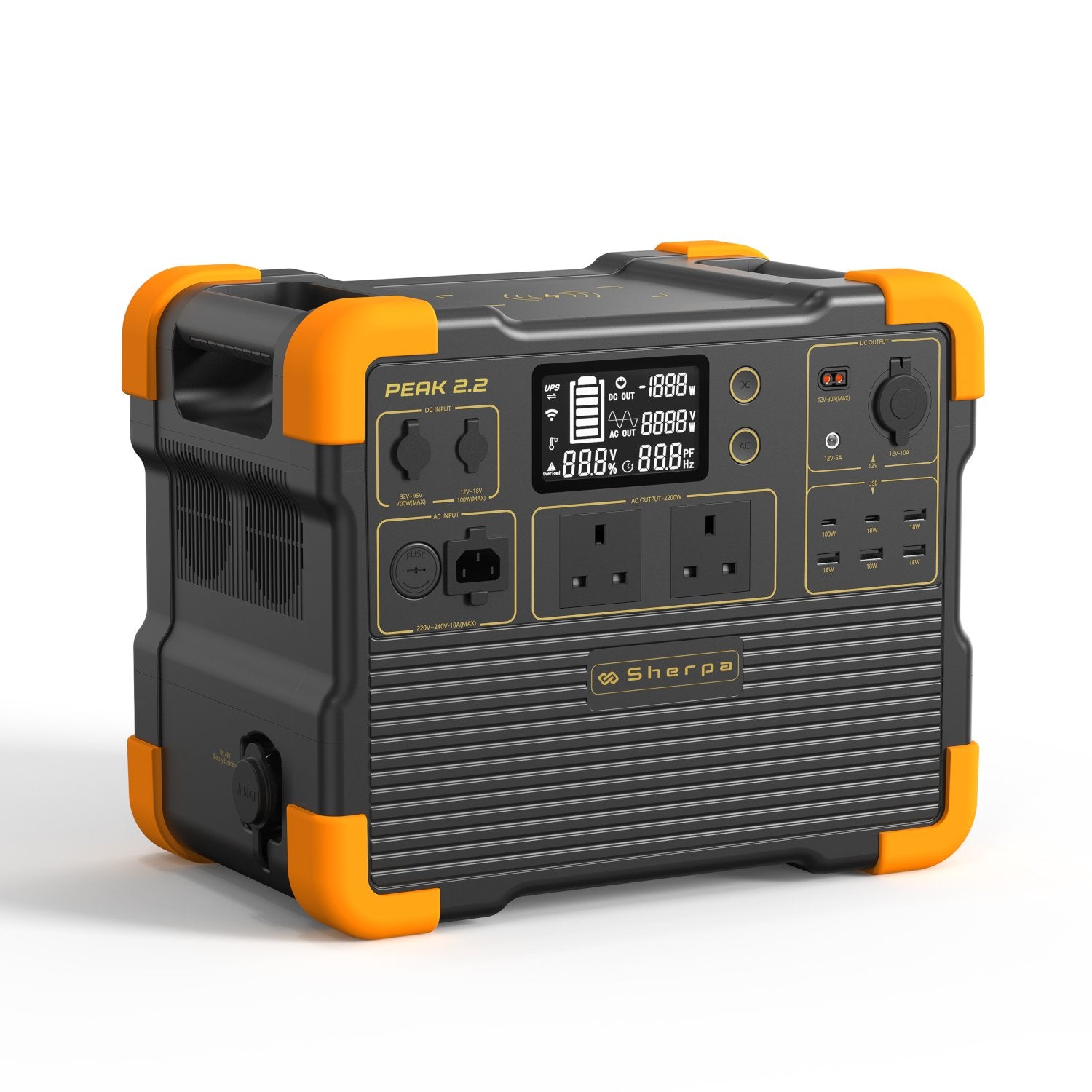

Sherpa PEAK 2.2

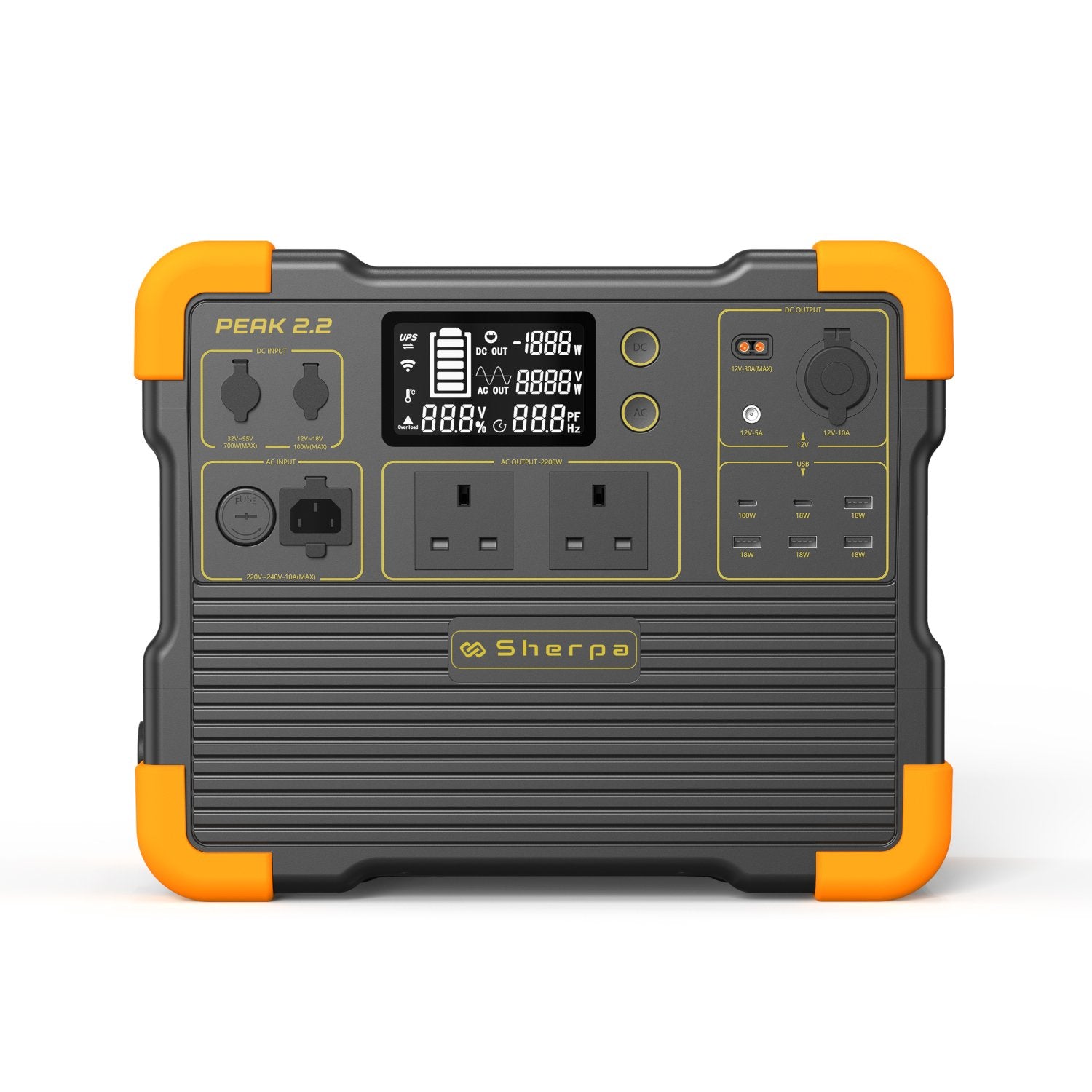

• The PEAK 2.2 features an intuitive LCD screen that provides real-time information about battery
level, power input/output, and charging status. This clear and easy-to-read display ensures you have
full visibility of the unit's performance, allowing you to manage your energy effectively. The PEAK
2.2 is also APP compatible (Wonderfree app) via Bluetooth or Wi-Fi (available for Apple & Android
devices), so you can even monitor and control your power station remotely.

• The PEAK 2.2 has an IP rating of 20, it is shockproof and built with fireproof materials.

• The PEAK 2.2 has a standard 5-year Warranty for peace of mind and 10-plus years lifespan.

• Leisure and Hobby (campervan, camping, glamping, fishing, off-grid events, photography, marine)

• Professional Use (onboard power solution for commercial vehicles, DIY, skilled trades, film industry,
contractors, medical equipment)

• Home Back-up Solution (fridge, freezer, TV, devices, Wi-Fi, microwave, washing machine, air fryer)

BATTERY INFO:

• Capacity: 1536 Wh (Depth Of Discharge 85%)

• Chemistry: LiFePO₄ (Lithium Iron Phosphate)

• Life Cycles: 3,500+ Cycles to 80% Original Capacity

• Shelf-life: Discharge the battery to 30% every three months and recharge it to 60%

• Management System: MPPT Controller, BMS

• Protection: Over-voltage, Low-voltage, Overheat, Overload, Short-circuit, Self-recovery

• Discharging Temperature: -20°C~45°C/-4°F~113°F

• Charging Temperature: 0°C~45°C/32°F~113°F

• Storage Temperature: 20-30°C/68°F~86°F

AC OUTPUT:

• Output Power: 2200W

• Surge: 4400W for <1s

• Outlets: AC Sockets: 1 × 220V-240V/50Hz

DC OUTPUT:

Outlets:
• USB-A Port: 4 x (5V,9V,12V, Max 18W) Shared

• USB-C Port: 2 x (5V,9V,12V,20V, Max 18W and 100W) Shared

• DC 5525 Output Port: 1 x (12V-5A)

• DC XT60 Output Port: 1 x DC 12V-30A

• Wireless Charging Pad: 1 x 15W Max

• Aux Car Port: 1 x DC 12V-10A

AC INPUT:

• AC Input Power: 1400W Max

• AC Inlet: 1 x AC 220V-240V

DC INPUT:

• DC Input Power: 700W Max

DC Inlet:
• DC GX16MF Input Port x 1 DC Charging (32V-95V, 700W Max, 15A Max)

• DC 5521 Input Port x 1 DC Charging (12V-18V, 100W Max, 7A Max)

RECHARGE TIMES (0-100%):

• AC Input: 1.4 hours

• Solar / DC Input: 2 hours

• Vehicle Charger (fast): 3 hours

• Vehicle Charger (slow): 16 hours

GENERAL:

• IP Rating: 20

• UPS Function: 8-20ms

• APP Compatible: Bluetooth/Wi-Fi

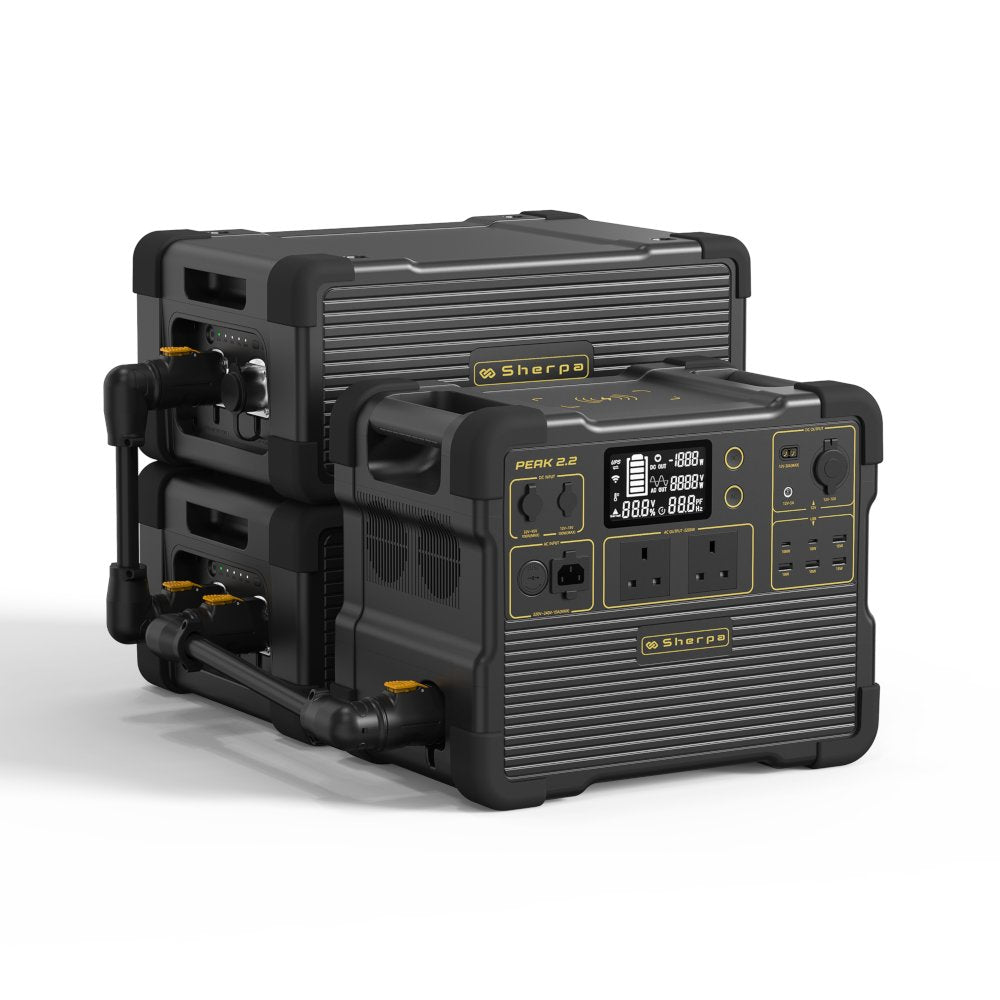

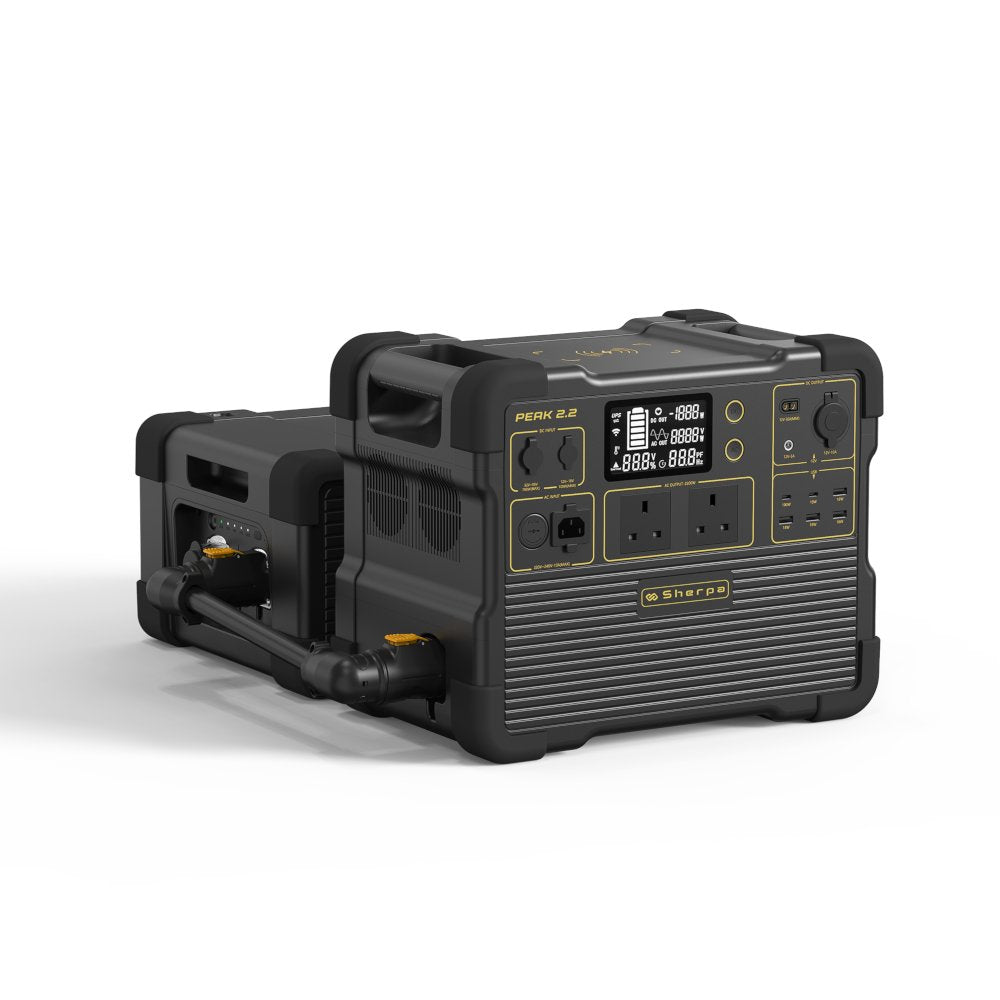

• Expandable Capacity: Yes (with up to 2 x Sherpa PEAK 3.0-EB > 7680Wh)

• Warranty: 5-year Standard Warranty

• Inverter: Pure Sine Wave

• Other Features: Shockproof

• Dimensions & Weight
Length(L): 377mm
Width(W): 237mm
Height(H): 305mm
Weight: 18Kg

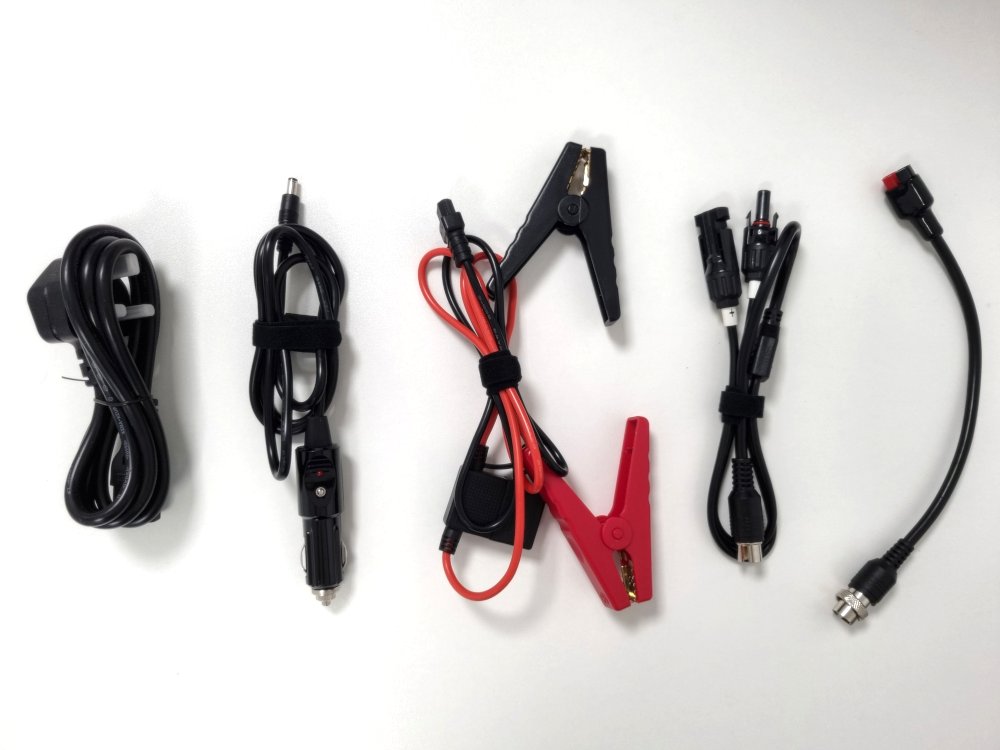

• 1 x PEAK 2.2
• 1 x AC Charging Cable
• 1 x Car Charging Cable
• 1 x MC4 Solar Charging Cable (LSMC4-5GX16)
• 1 x 12V Alligator Clips

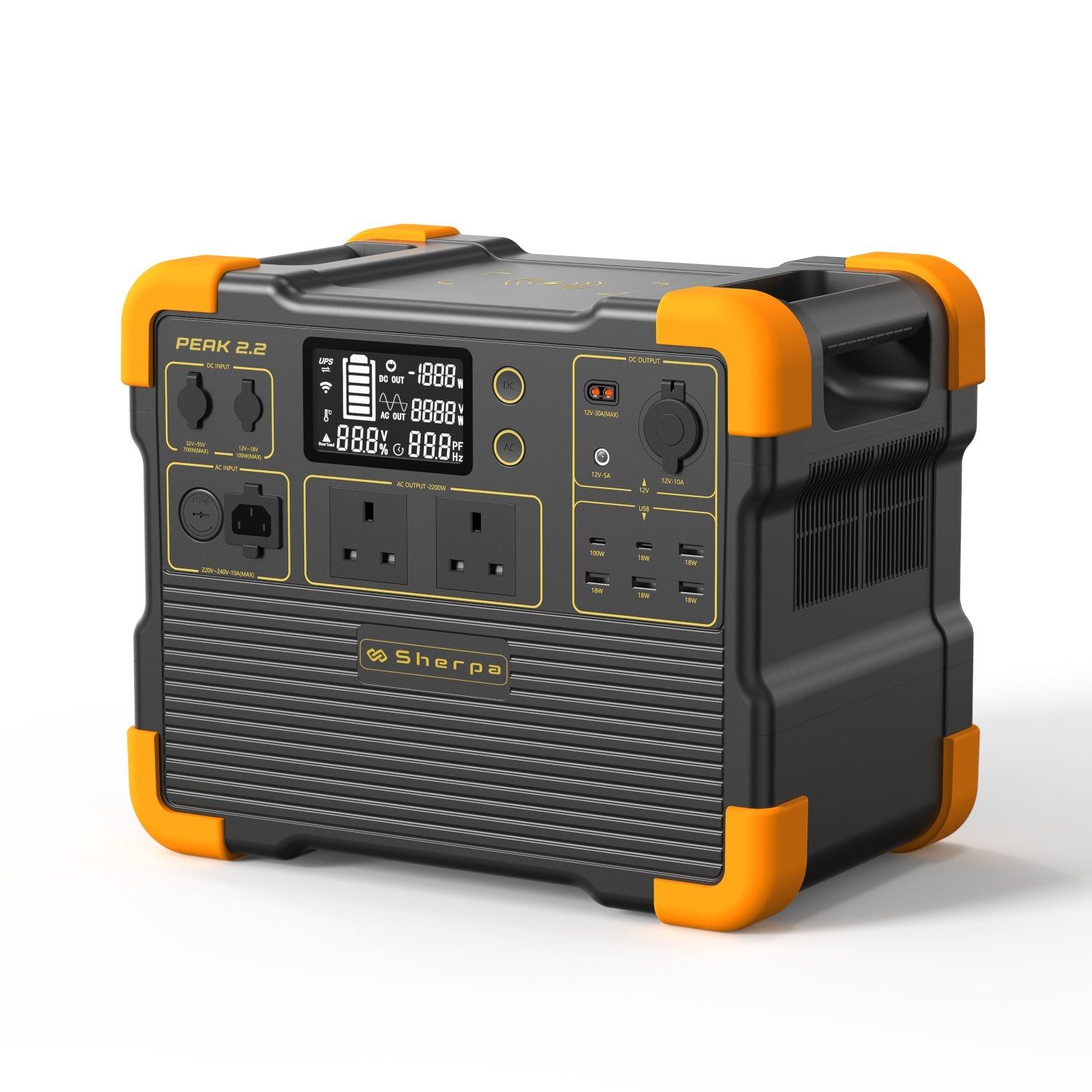

• 8 x Spare Corner Protector
• User Manual
