Sherpa PEAK 3.0-EB

Name: Sherpa PEAK 3.0-EB
Brand: Sherpa
Price: 1499.00 GBP
Availability: InStock

£1,499.00 GBP

Sale Sold out

Taxes included.

The PEAK 3.0-EB is a user-friendly, lightweight Smart Extra Battery, designed to add energy
storage capacity to your system. Equipped to accept solar and hybrid renewable inputs, you can charge it directly and deliver clean and efficient power to your devices. Designed for scalable capacity, the PEAK 3.0-EB is built for commercial and leisure vehicles or temporary home backup use. The easy link up system allows you to add up to 2 extra batteries and one host unit for significant energy storage.

General Information

• The PEAK 3.0-EB has an IP rating of 20, is shockproof and built with fireproof materials.

• The PEAK 3.0-EB has a standard 5-year Warranty for peace of mind and 10-plus years lifespan.

Applications

• Leisure and Hobby (campervan, glamping, off-grid events, marine)

• Professional Use when linked to PEAK 2.2 host (onboard power solution for commercial vehicles,
DIY, skilled trades, film industry, contractors, medical equipment)

• Home Back-up Solution when linked to PEAK 2.2 host (fridge, freezer, TV, devices, Wi-Fi,
microwave, washing machine, air fryer, oven)

• Off-Grid Living when linked to PEAK 2.2 host (Hybrid renewable charging, high storage potential
with linked extra batteries)

Technical Specification

BATTERY INFO:

• Capacity: 3072 Wh (Depth of Discharge 85%)

• Chemistry: LifePO₄ (Lithium Iron Phosphate)

• Life Cycles: 3,500+ Cycles to 80% Original Capacity

• Shelf-Life: Discharge the battery to 30% every three months and recharge it to 60%.

• Management System: MPPT Controller, BMS

• Protection: Over-voltage, Low-voltage, Overheat, Overload

• Discharging Temperature: -20°C~45°C/-4°F~113°F

• Charging Temperature: 0°C~45°C/32°F~113°F

• Storage Temperature: 20-30°C/68°F~86°FDC

DC OUTPUT:

Outlets:
• USB-A Port: 1 x (5V,9V,12V, Max 18W)

• USB-C Port: 1 x (5V,9V,12V, Max 100W)

• XT60 Output Port: 1 x (12V-5A)

AC INPUT:

• AC Input Power: 700W Max when charging via the PEAK 2.2 host.

DC INPUT:

• DC Input Power: 400W Max

• DC Inlet: DC Anderson Input Port x 1 DC Charging (12V-150V, MPPT:18V-140V, 15A Max)

RECHARGING TIMES (0-100%):

•AC Input: 4 hours when linked to PEAK 2.2 host

• Solar / DC Input: 7-8 hours

• Vehicle Charger (fast): 7-8 hours

• Vehicle Charger (slow): 25 hours

GENERAL:

• IP Rating: 20

• APP Compatible: When linked to PEAK 2.2 host

• Expandable Capacity: Yes (up to 2 x Sherpa PEAK 3.0-EB link with the PEAK 2.2)

• Warranty: 5-year Standard Warranty

• Dimensions & Weight:
Length(L): 441mm
Width(W): 312mm
Height(H): 200mm
Weight: 26Kg

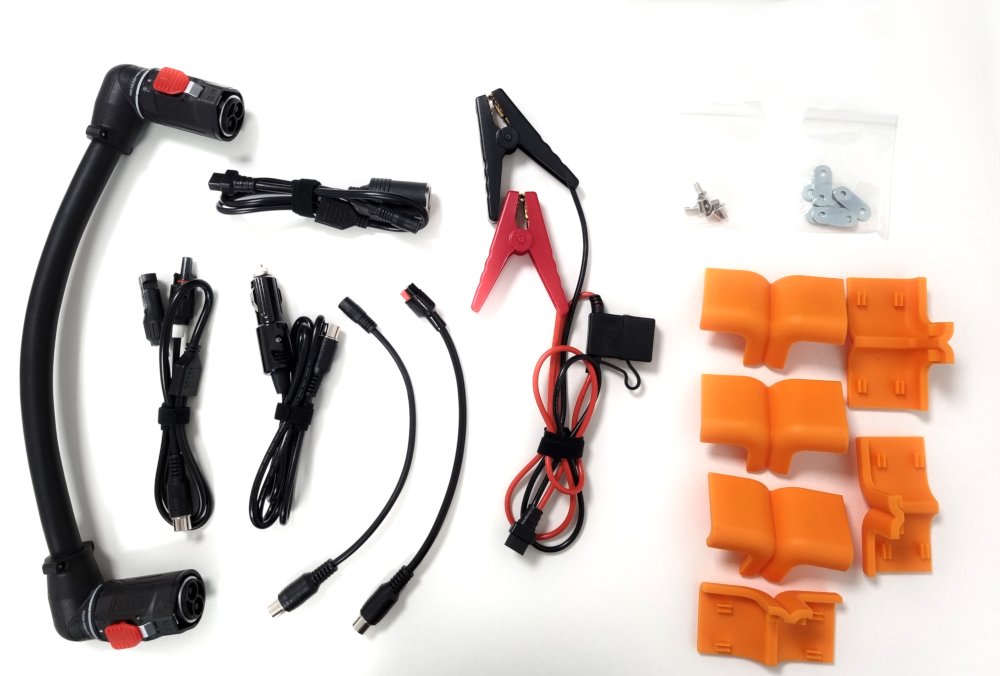

What's in the Box?

• 1 x PEAK 3.0-EB
• 1 x Output Adapter from XT60 to Aux and 5525 Port
• 1 x MC4 Solar Charging Cable (LSMC4-5GX16)
• 1 x MJ32 Cascade Cable
• 1 x 12V Alligator Clips
• 6 x Double Spare Corner Protector
• 1 x Adapter cable 5521 to GX16MF-5 Connector
• 1 x Adapter Cable Anderson to GX16MF-5 Connector
• 1 x Car Charge Cable to GX16MF-5 Connector
• 6 x Metal Fixing Plate
• 6 x Screw
• 8 x Spare Corner Protector
• 1 x User Manual
