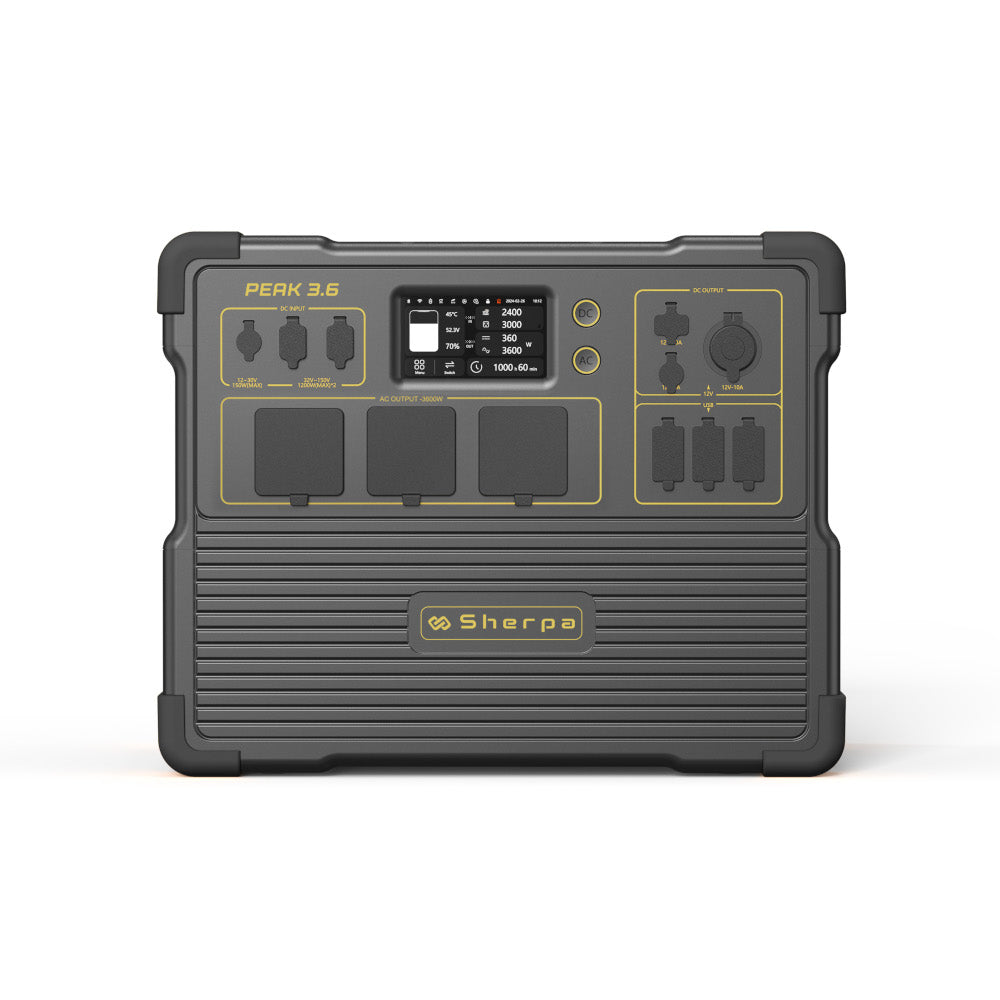

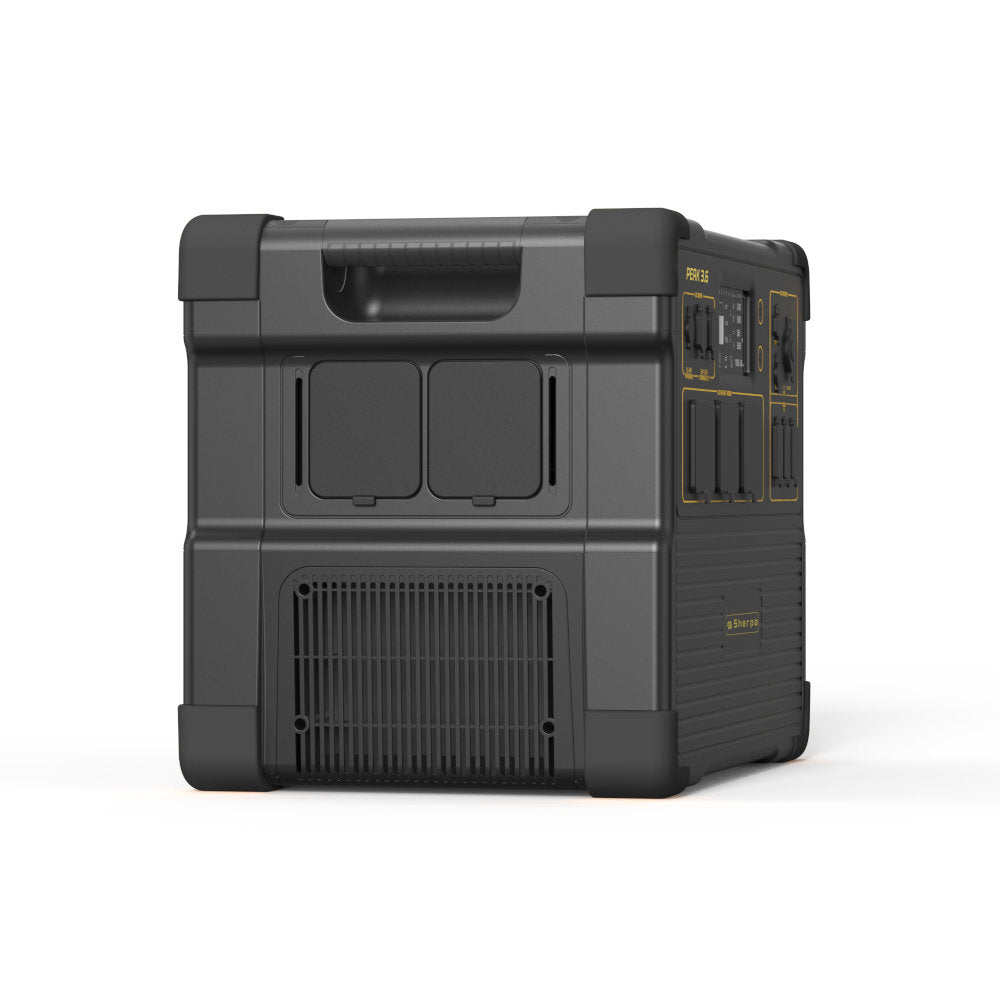

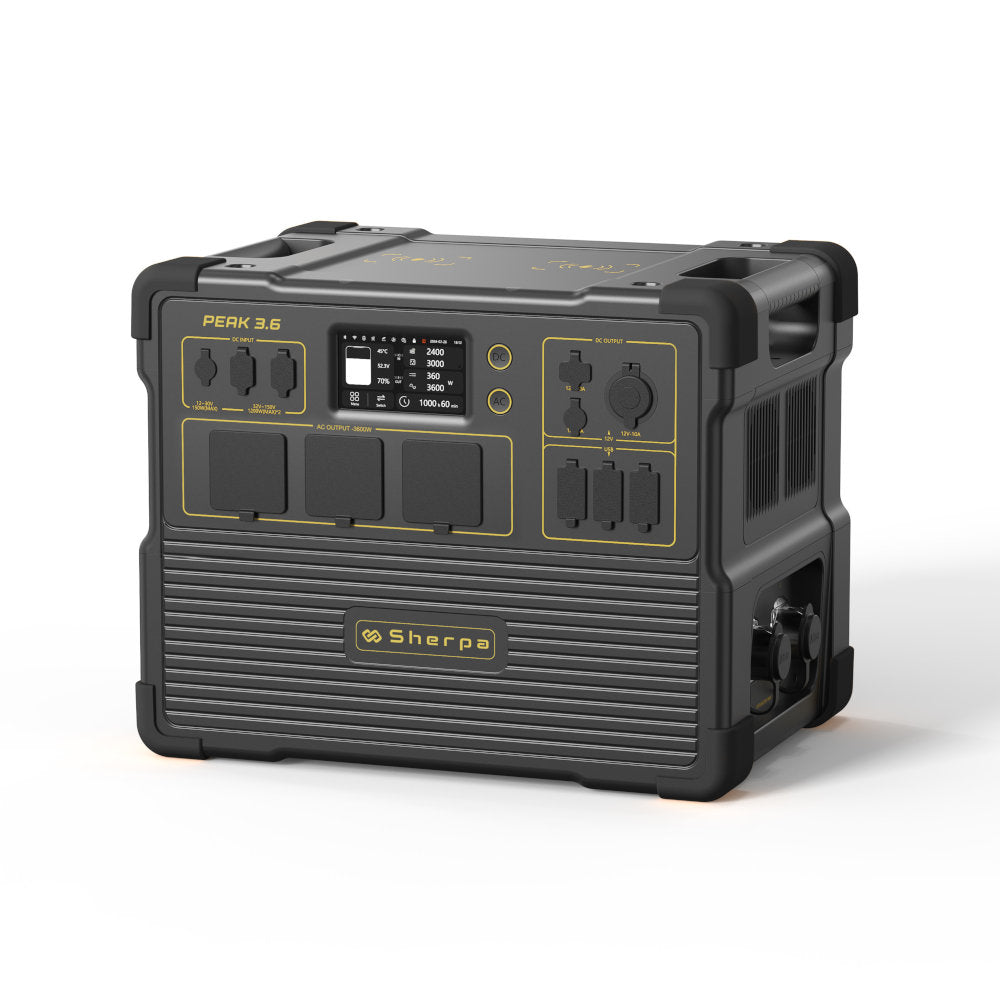

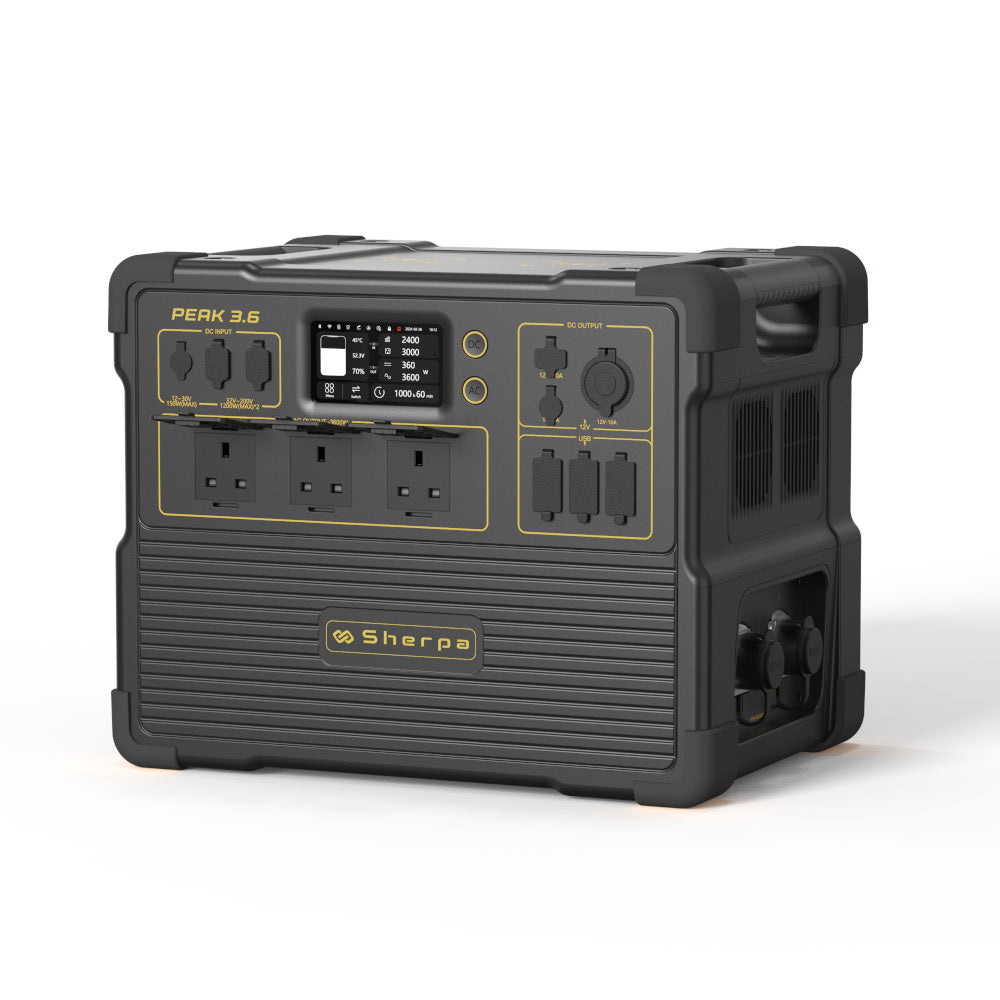

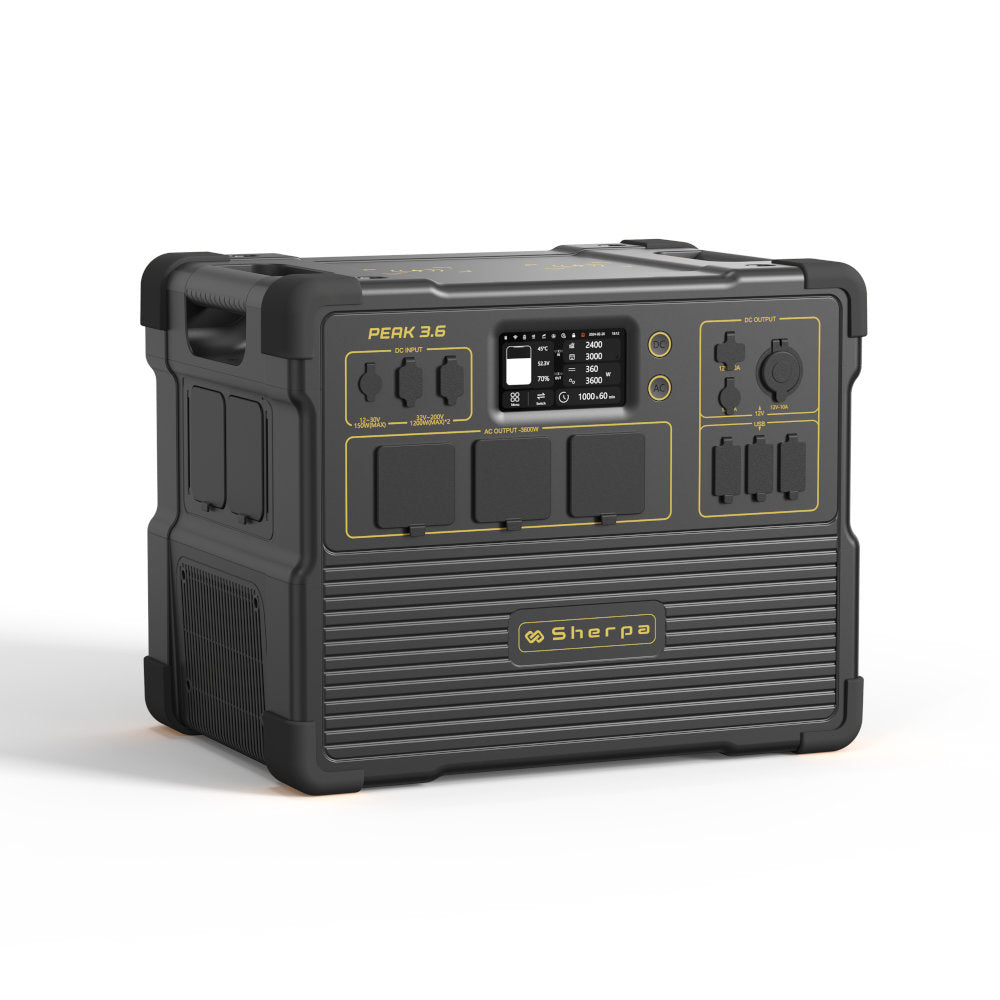

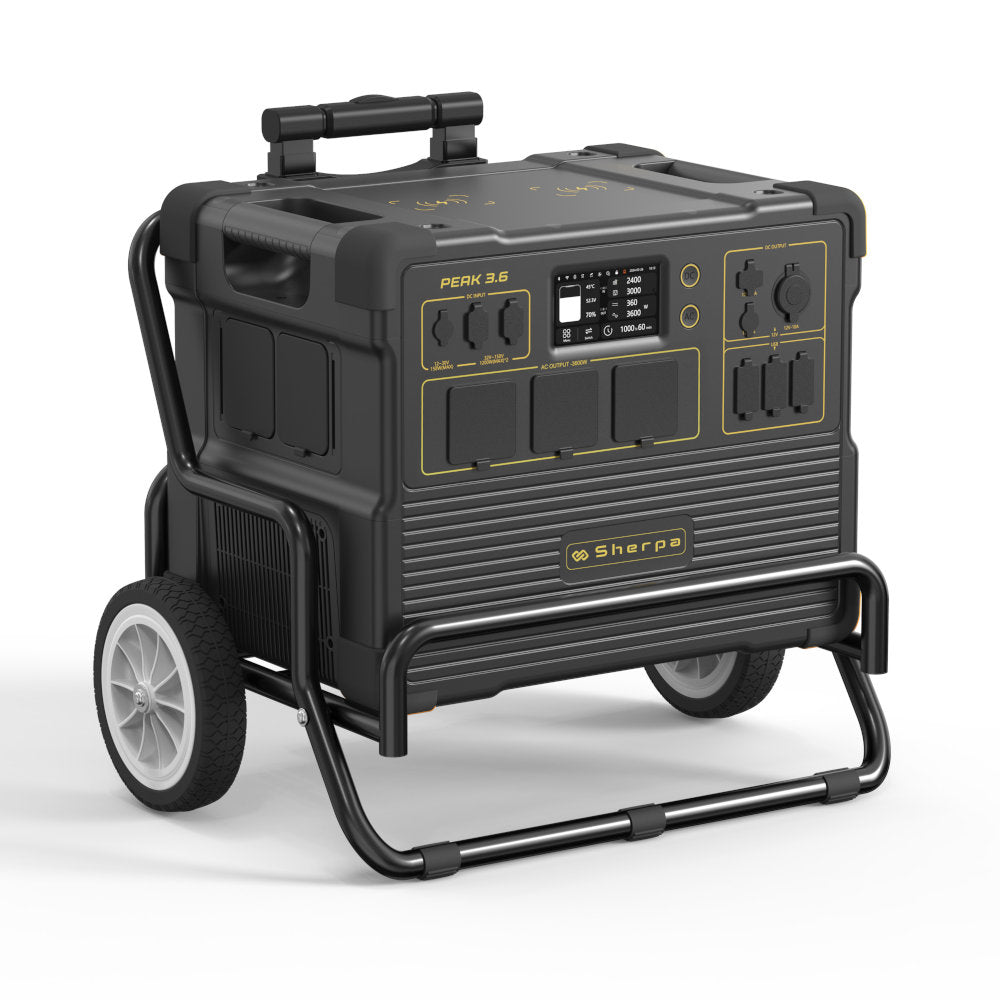

Sherpa PEAK 3.6

• The PEAK 3.6 features a touchscreen that provides real-time information about battery level,
power input/output, and charging status. Furthermore, you have the ability to set more parameters
than ever before allowing for greater control of your energy. The PEAK 3.6 is also APP compatible
(Wonderfree app) via Bluetooth or Wi-Fi (available for Apple & Android devices), so you can even
monitor and control your power station remotely.

• The PEAK 3.6 has an IP rating of 20, it is shockproof and built with fireproof materials.

• The PEAK 3.6 has a standard 5-year Warranty for peace of mind and 10-plus years lifespan

• Leisure and Hobby (motorhome, glamping, off-grid events, luxury marine)

• Professional Use (onboard power solution for commercial vehicles, DIY, skilled trades, film
production, contractors, medical equipment)

• Home Back-up Solution (fridge, freezer, TV, devices, Wi-Fi, kettle, microwave, washing machine, air
fryer, oven)

• Off-Grid Living (Hybrid renewable charging at high rates, high storage plug-and-play solution and excellent output power)

BATTERY INFO:

• Capacity: 3070 Wh (Depth Of Discharge 85%)

• Chemistry: LiFePO₄ (Lithium Iron Phosphate)

• Life Cycles: 3,500+ Cycles to 80% Original Capacity

• Discharge the battery to 30% every three months and recharge it to 60%

• Management System: MPPT Controller, BMS

• Protection: Over-voltage, Low-voltage, Overheat, Overload, Short-circuit, Self-recovery

• Discharging Temperature: -20°C~45°C/-4°F~113°F

• Charging Temperature: 0°C~45°C/32°F~113°F

• Storage Temperature: 20-30°C/68°F~86°F

AC OUTPUT:

• Output Power: 3600W

• Surge: 7000W for <1s

• Outlets: AC Sockets: 3 × 220V-240V/50Hz

DC OUTPUT:

Outlets:
• USB-A Port: 4 x (5V,9V,12V, Max 18W) Shared

• USB-C Port: 2 x (5V,9V,12V,20V, Max 18W and 100W) Shared

• DC 5525 Output Port: 1 x (12V-5A)

• DC XT60 Output Port: 1 x DC 12V-30A

• Wireless Charging Pad: 2 x 15W Max

• Aux Car Port: 1 x DC 12V-10A

AC INPUT:

• AC Input Power: 1900W Max

• AC Inlet: 1 x AC 220V-240V

DC INPUT:

• DC Input Power: 2550W Max (1200W x 2, 150W x 1)

• DC Inlet: XT60-M Input Port x 2 DC Charging (32V-150V, 1200W Max, 20A Max)
DC 5521 Input Port x 1 DC Charging (12V-30V, 150W Max, 7A Max)

RECHARGE TIMES (0-100%):

• AC Input: 1.7 hours

• Solar / DC Input: 1.4 hours

• Vehicle Charger (fast): 6 hours

• Vehicle Charger (slow): 32 hours

GENERAL:

• Operation noise: 45dB

• Mains Switchover: 8-20ms

• APP Compatible: Bluetooth/Wi-Fi

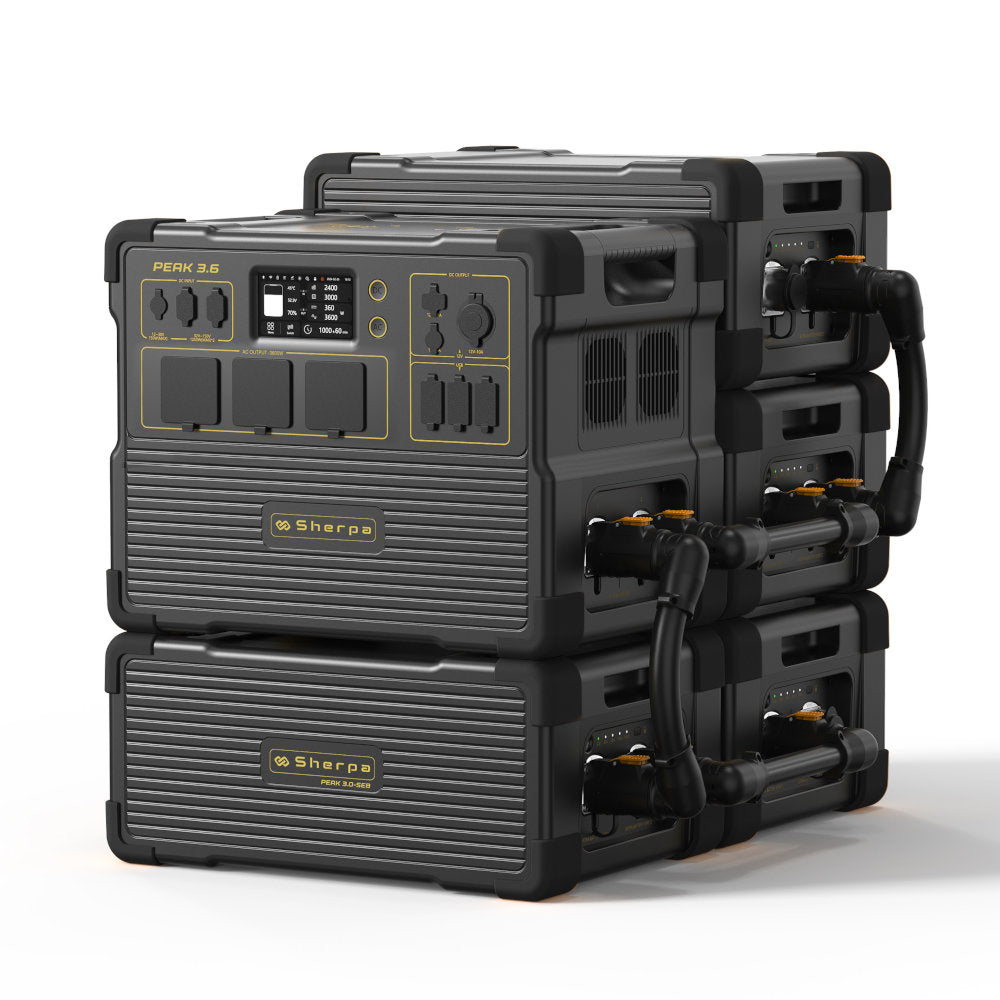

• Expandable Capacity: Yes (with up to 4 x Sherpa BASE 3.0-EB > 15,360Wh)

• Warranty: 5-year Standard Warranty

• Inverter: Pure Sine Wave

• Other Features: Shockproof

• Dimensions & Weight
Length(L): 445mm
Width(W): 307mm
Height(H): 305mm
Weight: 36Kg

• 1 x PEAK 3.6
• 1 x AC Charging Cable
• 1 x Car Charging Cable
• 1 x MC4 Solar Charging Cable (MC4-XT60)
• 1 x MC4 Solar Parallel Dual Charging Cable (MC4- 2 x XT60)
• 1 x Slotted Screwdriver
• 1 x Accessory Pouch
• User Manual
