Sherpa PEAK 3.6 + 300W Sunfold Solar Panel + Charge 500 (Bundle)

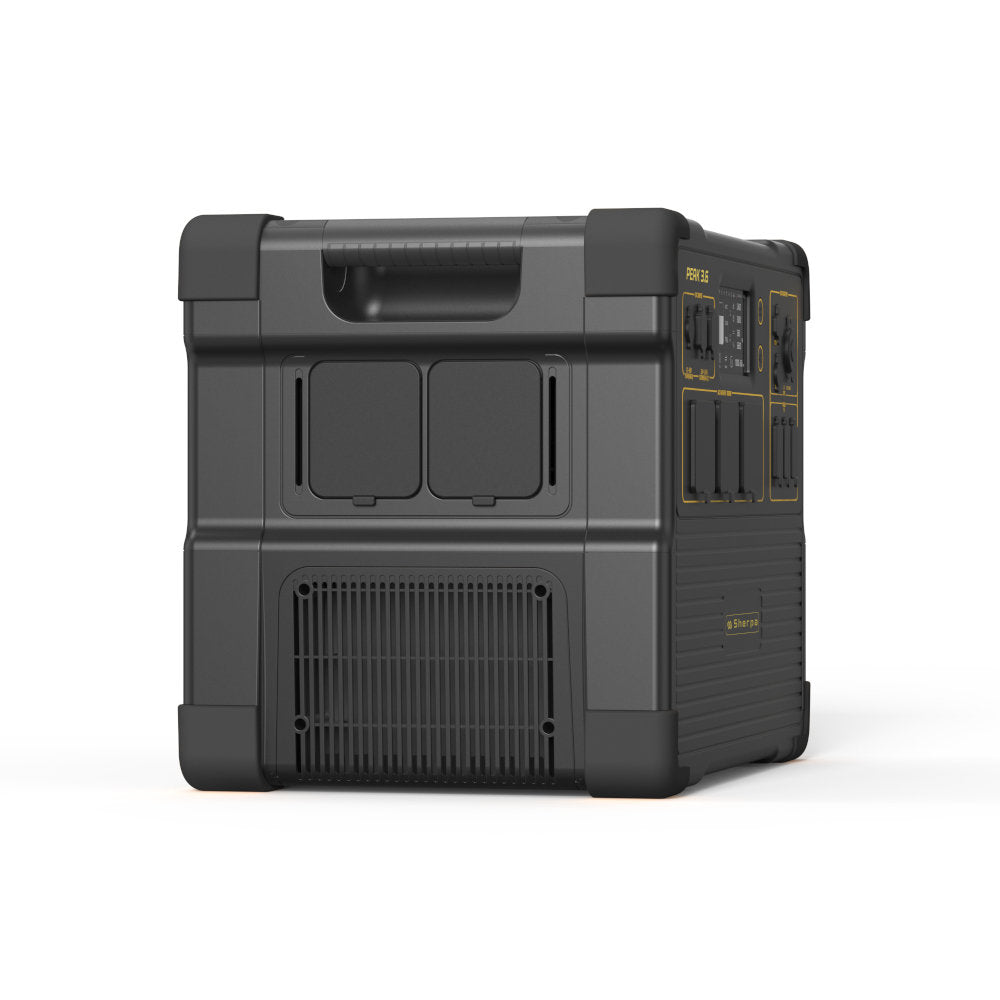

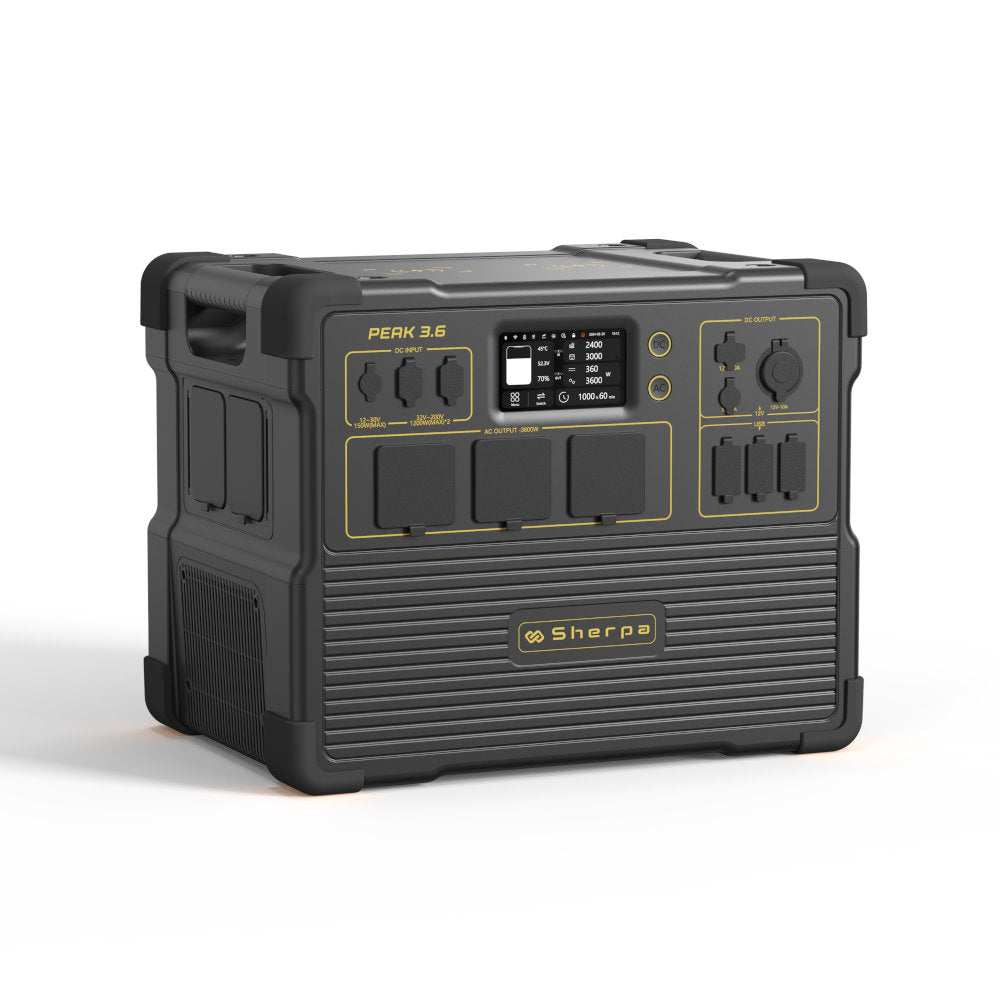

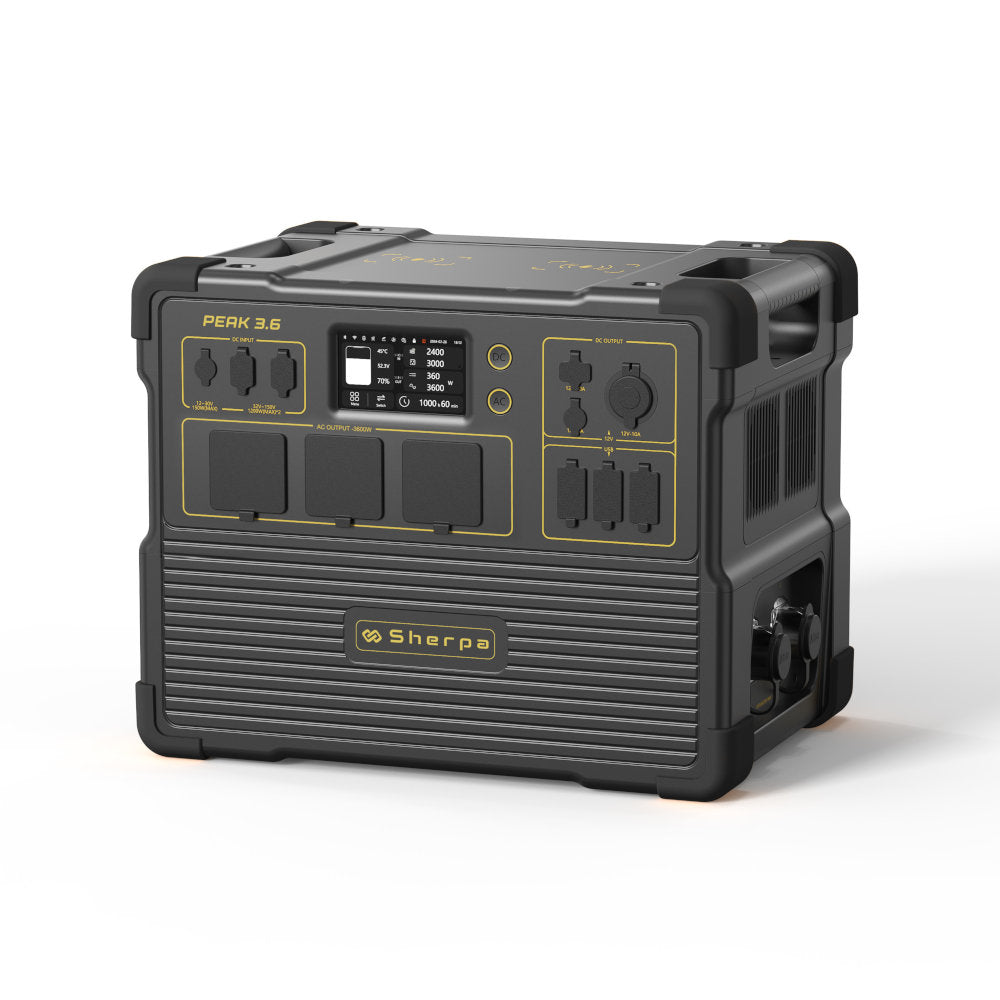

PEAK 3.6:
• The PEAK 3.6 features a touchscreen that provides real-time information about battery level,
power input/output, and charging status. Furthermore, you have the ability to set more parameters
than ever before allowing for greater control of your energy. The PEAK 3.6 is also APP compatible
(Wonderfree app) via Bluetooth or Wi-Fi (available for Apple & Android devices), so you can even
monitor and control your power station remotely.

• The PEAK 3.6 has an IP rating of 20, it is shockproof and built with fireproof materials.

• The PEAK 3.6 has a standard 5-year Warranty for peace of mind and 10-plus years lifespan

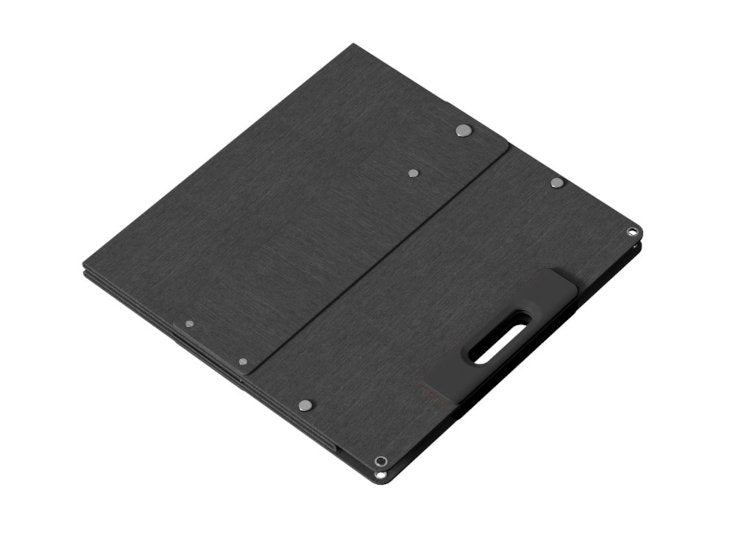

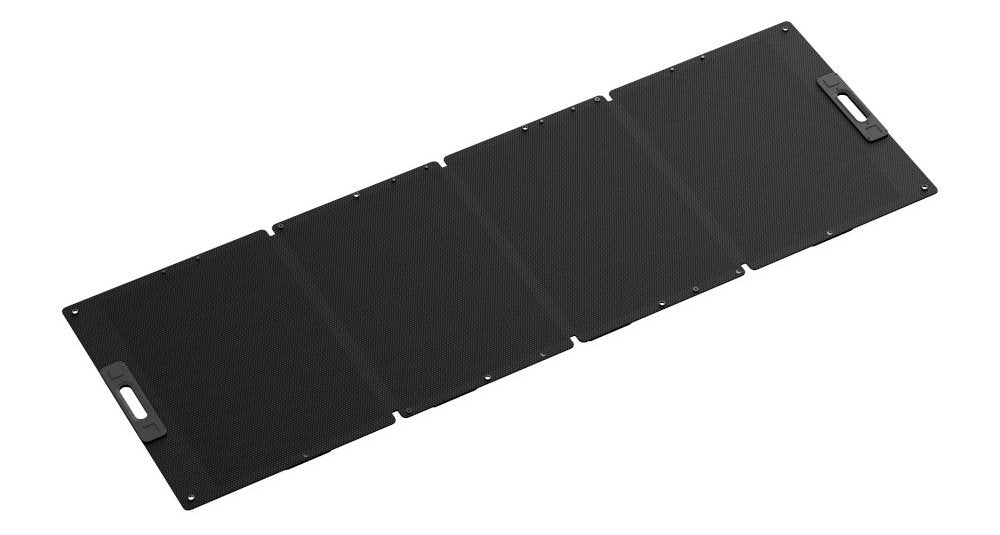

300W Sunfold Solar Panel:

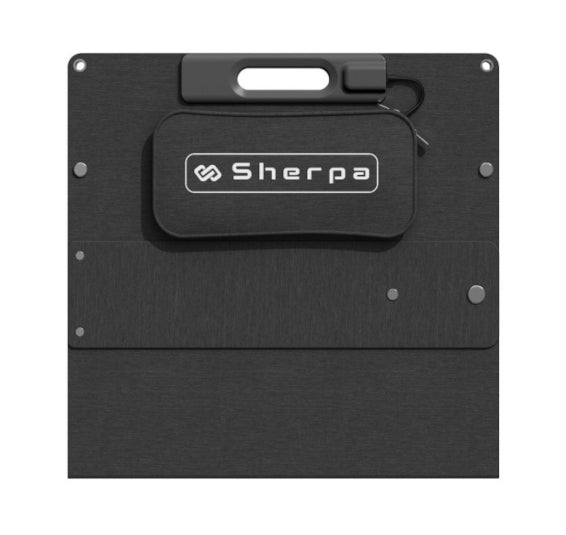

• The SunFold 300 features a storage pouch to keep the output cable and any adapters. Ingress Protection rating of 67 and is made with fireproof materials.

• Standard 2-year Warranty for peace of mind.

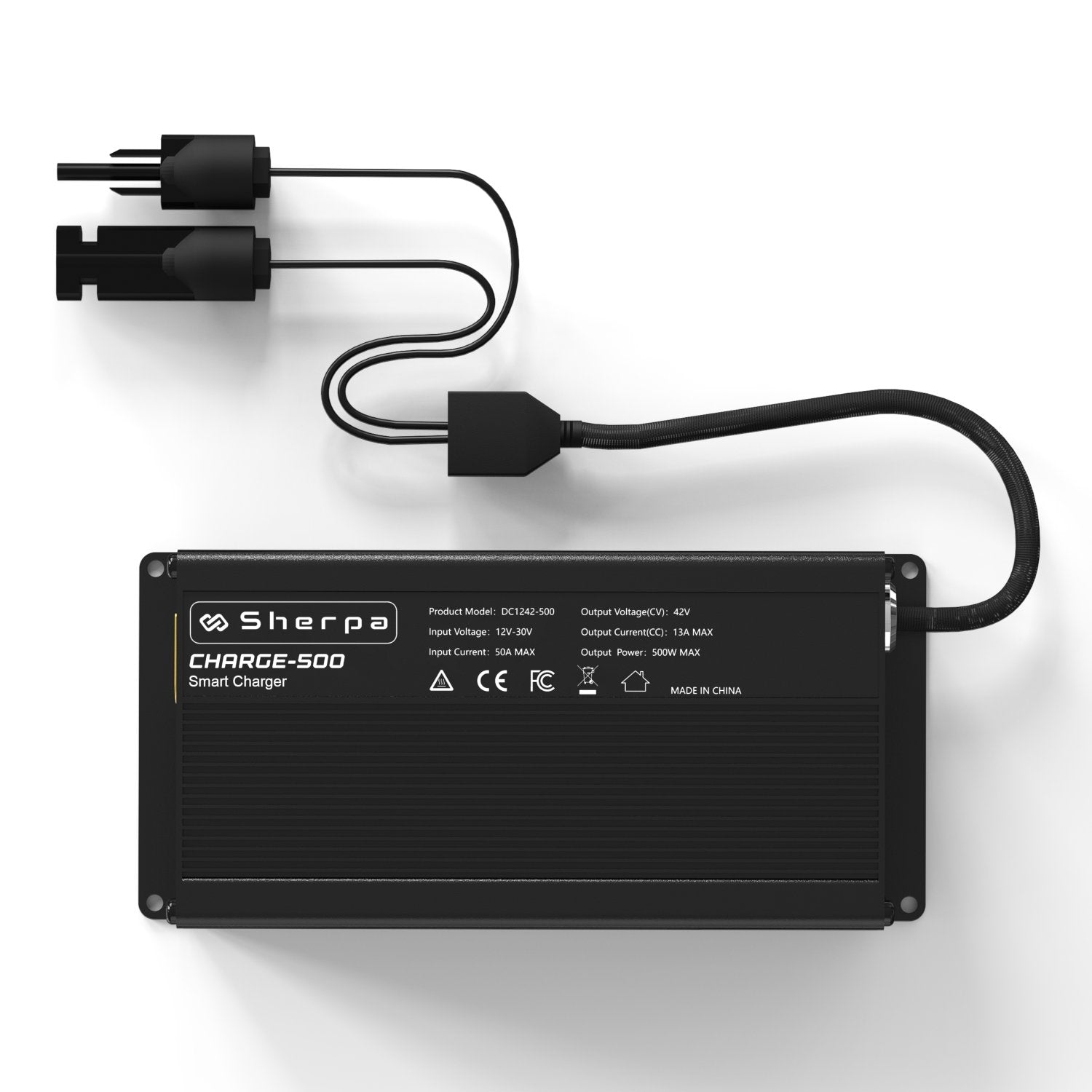

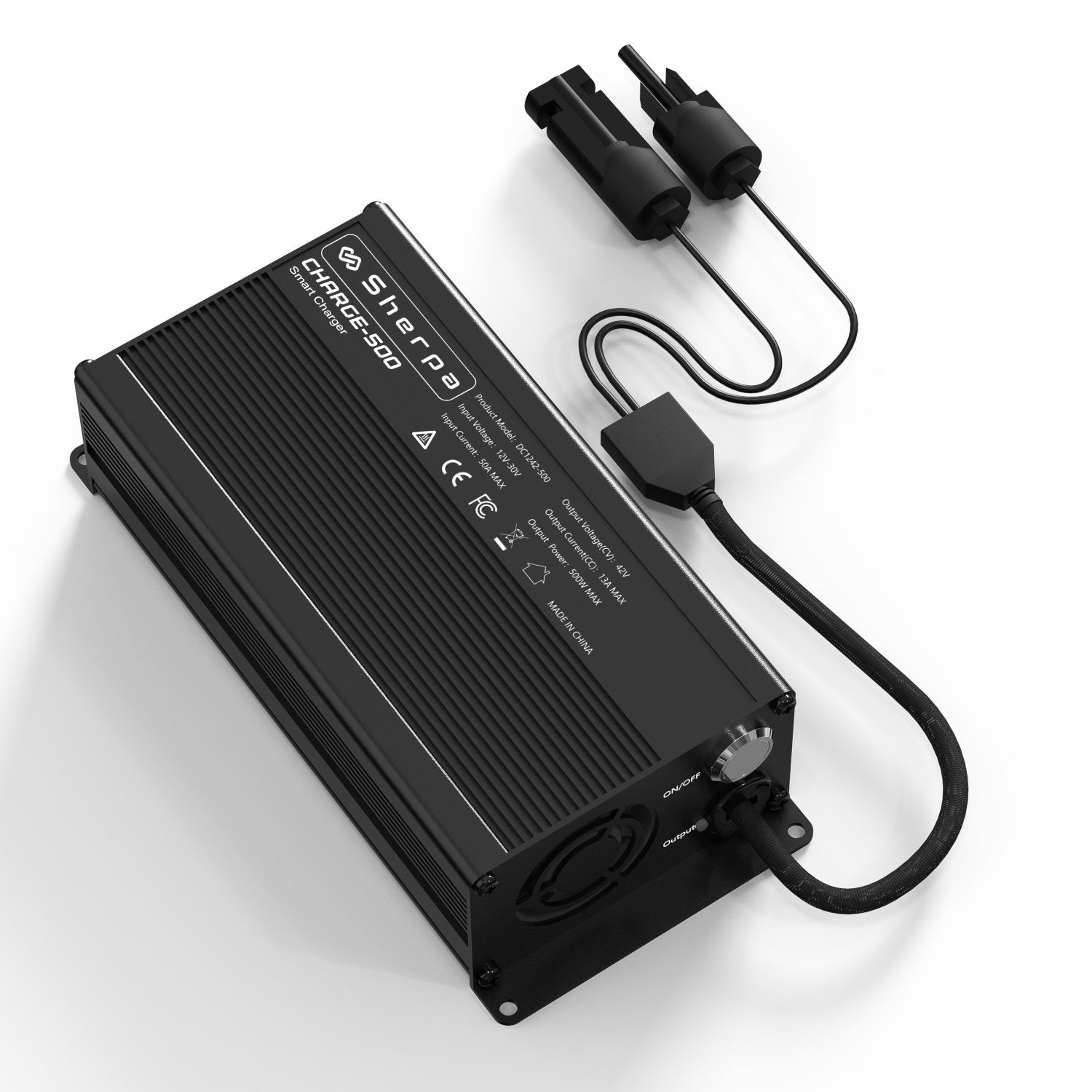

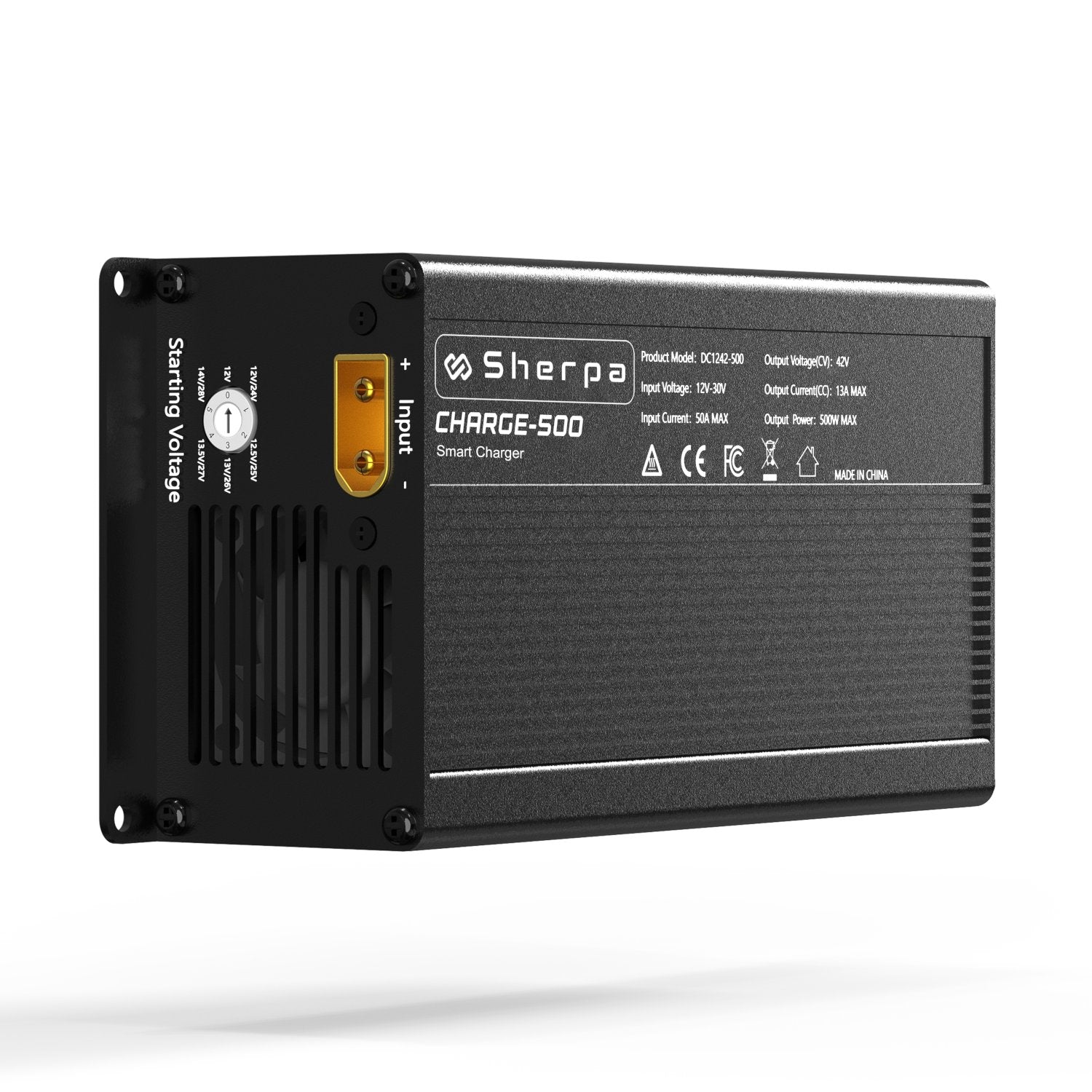

Charge 500:

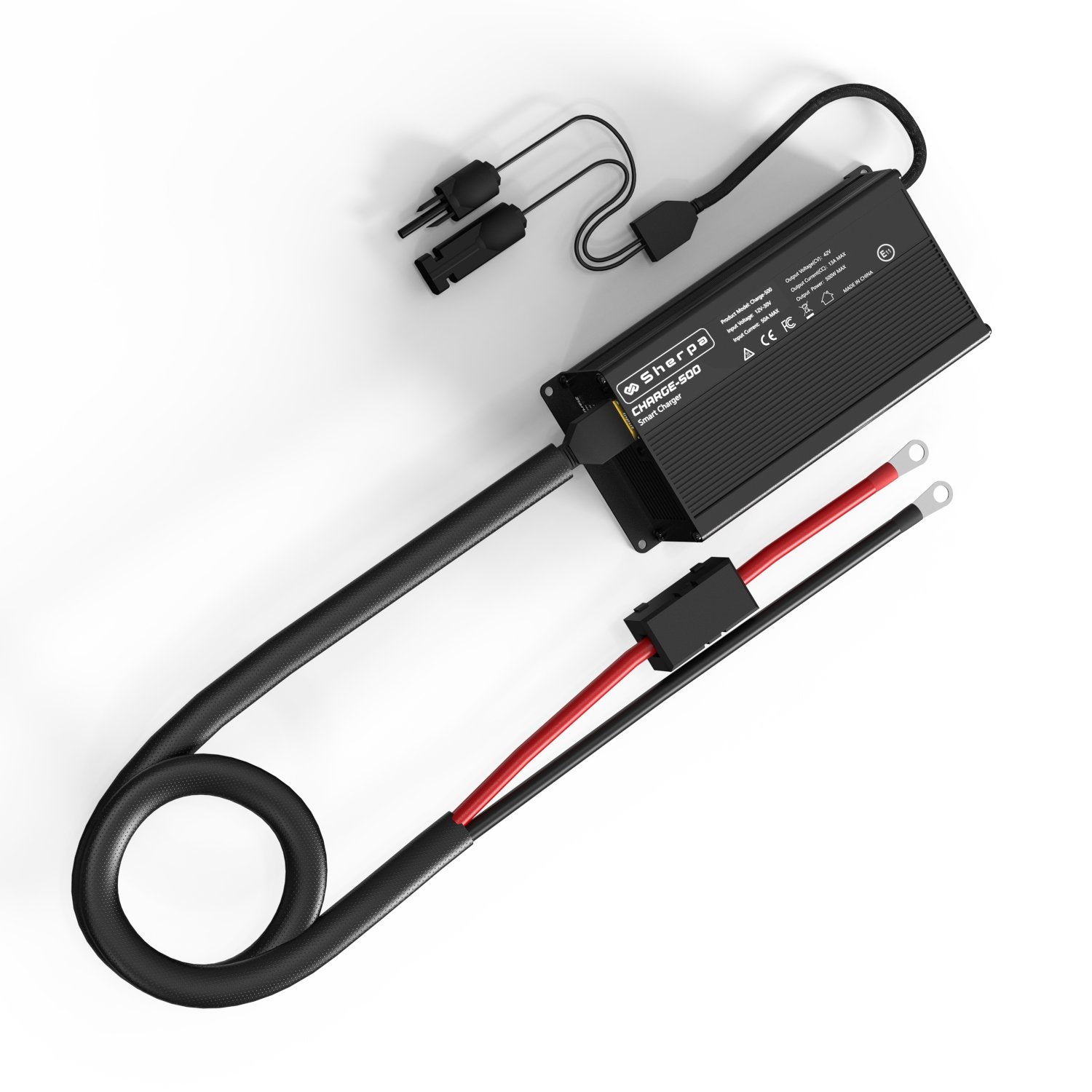

• The CHARGE-500 features a voltage startup dial to suit your vehicle. It has a pre fused set of 5m
power cables to run from your vehicle battery to the unit and 0.5m output cables to connect to MC4
type adapter cables (supplied with Sherpa Power Stations).

• The CHARGE-500 is fan cooled and features a mechanical latching isolation switch.

• The CHARGE-500 has a standard 5-year Warranty for peace of mind and 10-plus years lifespan.

• Leisure and Hobby (motorhome, glamping, off-grid events, luxury marine)

• Professional Use (onboard power solution for commercial vehicles, DIY, skilled trades, film
production, contractors, medical equipment)

• Home Back-up Solution (fridge, freezer, TV, devices, Wi-Fi, kettle, microwave, washing machine, air
fryer, oven)

• Off-Grid Living (Hybrid renewable charging at high rates, high storage plug-and-play solution and excellent output power)

PEAK 3.6:
BATTERY INFO:

• Capacity: 3070 Wh (Depth Of Discharge 85%)

• Chemistry: LiFePO₄ (Lithium Iron Phosphate)

• Life Cycles: 3,500+ Cycles to 80% Original Capacity

• Discharge the battery to 30% every three months and recharge it to 60%

• Management System: MPPT Controller, BMS

• Protection: Over-voltage, Low-voltage, Overheat, Overload, Short-circuit, Self-recovery

• Discharging Temperature: -20°C~45°C/-4°F~113°F

• Charging Temperature: 0°C~45°C/32°F~113°F

• Storage Temperature: 20-30°C/68°F~86°F

AC OUTPUT:

• Output Power: 3600W

• Surge: 7000W for <1s

• Outlets: AC Sockets: 3 × 220V-240V/50Hz

DC OUTPUT:

Outlets:
• USB-A Port: 4 x (5V,9V,12V, Max 18W) Shared

• USB-C Port: 2 x (5V,9V,12V,20V, Max 18W and 100W) Shared

• DC 5525 Output Port: 1 x (12V-5A)

• DC XT60 Output Port: 1 x DC 12V-30A

• Wireless Charging Pad: 2 x 15W Max

• Aux Car Port: 1 x DC 12V-10A

AC INPUT:

• AC Input Power: 1900W Max

• AC Inlet: 1 x AC 220V-240V

DC INPUT:

• DC Input Power: 2550W Max (1200W x 2, 150W x 1)

• DC Inlet: XT60-M Input Port x 2 DC Charging (32V-150V, 1200W Max, 20A Max)
DC 5521 Input Port x 1 DC Charging (12V-30V, 150W Max, 7A Max)

RECHARGE TIMES (0-100%):

• AC Input: 1.7 hours

• Solar / DC Input: 1.4 hours

• Vehicle Charger (fast): 6 hours

• Vehicle Charger (slow): 32 hours

GENERAL:

• Operation noise: 45dB

• Mains Switchover: 8-20ms

• APP Compatible: Bluetooth/Wi-Fi

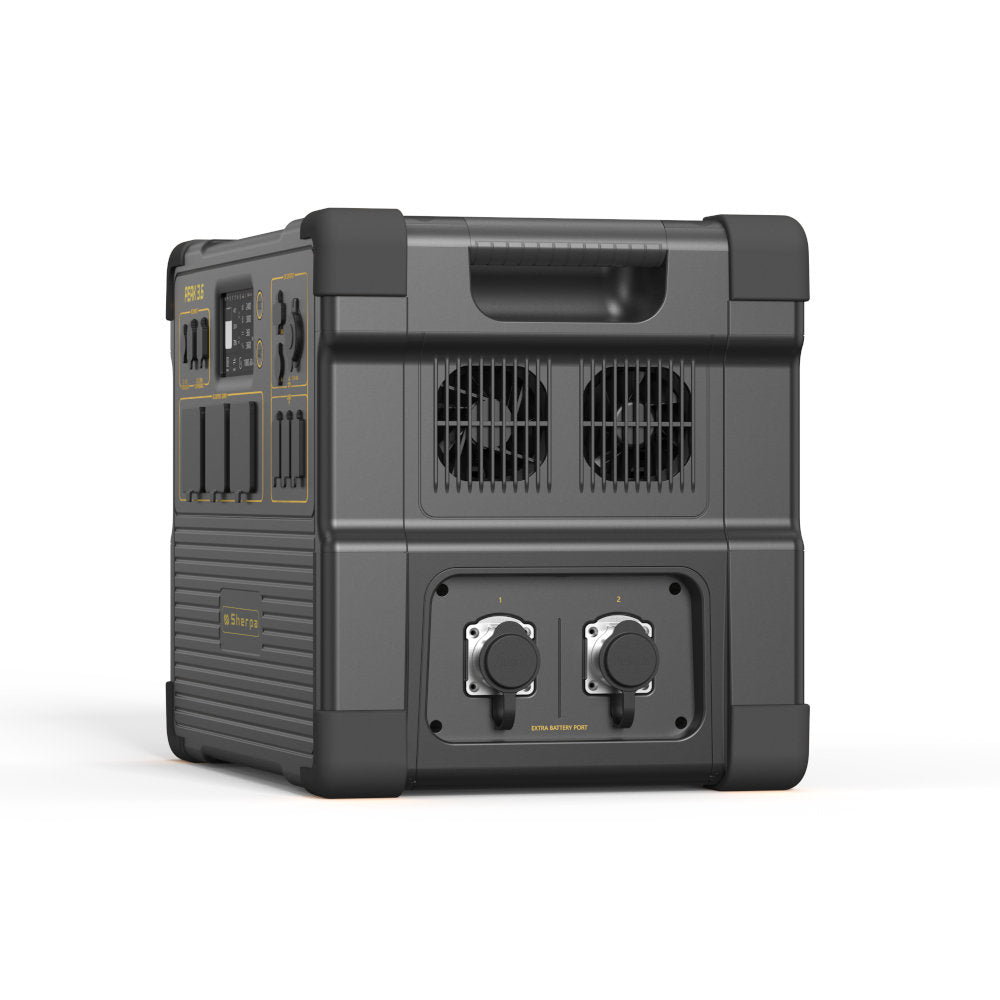

• Expandable Capacity: Yes (with up to 4 x Sherpa BASE 3.0-EB > 15,360Wh)

• Warranty: 5-year Standard Warranty

• Inverter: Pure Sine Wave

• Other Features: Shockproof

• Dimensions & Weight
Length(L): 445mm
Width(W): 307mm
Height(H): 305mm
Weight: 36Kg

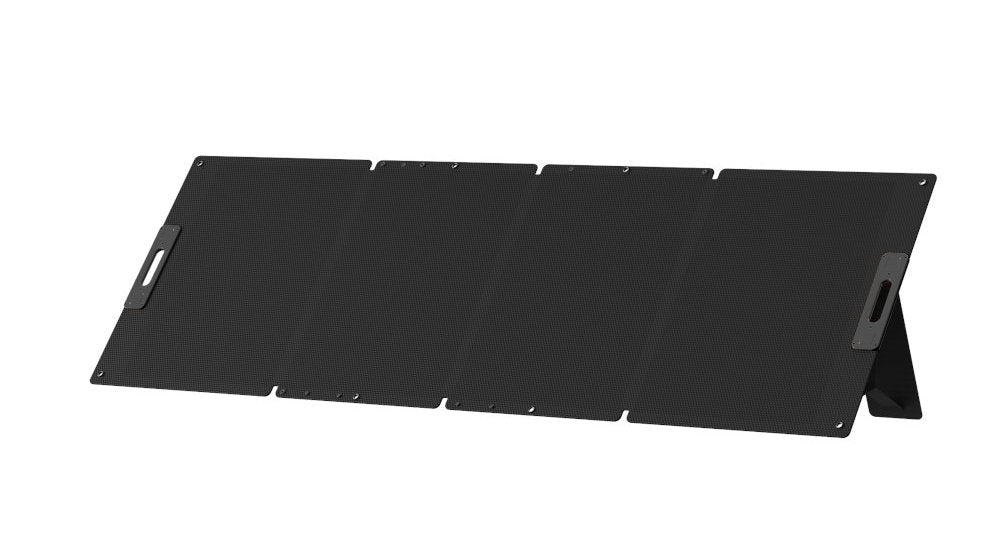

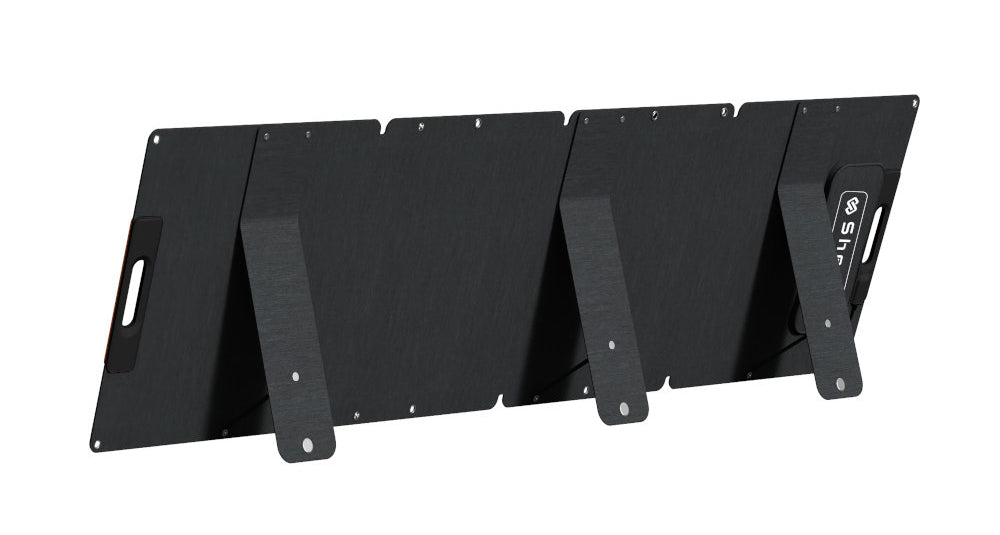

300W Sunfold Solar Panel:
POWER INFO:

• Rating: 307.6W

• Open Circuit Voltage (Voc): 56V

• Power Voltage (Vmp): 45.6V

• Short-Circuit Current (Isc): 7.35A

• Current at Max Power (Imp): 6.75A

DC OUTPUT:

Outlets:
• MC4: 1.5m cable to positive and negative terminations.

• MC4 - Anderson PP30 30A

• MC4 - DC7909

• MC4 - DC6530

• MC4 - DC35135

• MC4 - DC5521

• MC4 – XT60 Female

GENERAL:

• IP Rating: 67

• Warranty: 2-year Standard Warranty

• Dimensions & Weight
Length(L): Unfolded: 2338mm, Folded: 627mm
Width(W): 794mm
Height(H): Unfolded: 27mm, Folded: 42mm
Weight: 9Kg

Charge 500:
GENERAL:

• Input: 12-30V, 50A Max

• Output: 42V, 13A Max

• Fuse: 100A

• Charge Output Power: 500W

• Standby load: ~0.1A when OFF and ~0.26A when ON

• Protection: Short-circuit, high voltage, low voltage, overheat

• Operating Temperature: -10°C~55°C/14°F~131°F

• Storage Temperature: 10°C~45°C/50°F~113°F

• Heat dissipation: Fan cooled

• Dimensions & Weight:
Length(L): 193mm
Width(W): 90mm
Height(H): 52mm
Weight: 2.5Kg

PEAK 3.6:
• 1 x PEAK 3.6
• 1 x AC Charging Cable
• 1 x Car Charging Cable
• 1 x MC4 Solar Charging Cable (MC4-XT60)
• 1 x MC4 Solar Parallel Dual Charging Cable (MC4- 2 x XT60)
• 1 x Slotted Screwdriver
• 1 x Accessory Pouch
• User Manual

300W Sunfold Solar Panel:
• 1 x SunFold 300W Portable Solar Panel
• 1 x 6-in-1 Multi-Adapter Cable
• User Manual

Charge 500:
• 1 x CHARGE-500 Smart Charger
• 1 x 5m, fused (100A) input power cable set
• 1 x mini screwdriver
• User Manual
